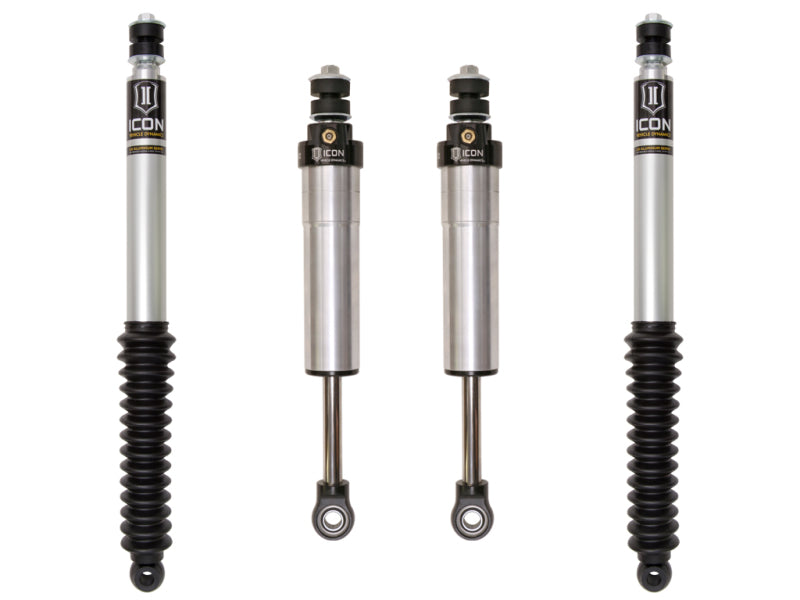

ICON 98-07 Toyota Land Cruiser 100/Lexus LX470 Series 0-2in Stage 1 Suspension System

The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Understanding this, ICON engineers have developed a unique 2.5 Aluminum Series front shock that can handle these demands. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads. 2.0 Aluminum Series rear shocks are included in this stage to offer balanced damping front to rear. ICON 2.5” suspension systems lift your Toyota LC100 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market. APPLICATION NOTE #72: If alignment cams are adjusted to max inward setting (Negative Camber), arm will contact 2.5 shock at full droop. Aftermarket arm required.

• 2.5 Aluminum Series front shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• 100% Bolt-on - no drilling, cutting or welding necessary for install
• FK rod end bearings for extended longevity and minimal deflection
• 6061 Aircraft grade aluminum CNC machined components
• 2.0 aluminum body rear IFP shock with 5/8" shaft

The ICON Stage 1 Suspension System for the Toyota Land Cruiser 100 Series (1998-2007) is engineered to enhance off-road capability and ride quality by providing a 2.5-inch lift at the front and a balanced damping setup at the rear. Designed specifically for the rugged demands of the Land Cruiser, this system features high-performance shocks and components that deliver precise control even under high load conditions. The front shocks utilize one-piece impact extruded aluminum cylinders, offering excellent corrosion resistance and consistent performance. The heavy-duty upper stem bushings and spherical rod end bearings ensure minimal deflection, providing a responsive and controlled ride during off-road excursions or on paved roads.

Features:

• 2.5-inch Aluminum Series front shocks with impact extruded aluminum cylinders for corrosion resistance and durability

• Vehicle-specific tuned front and rear shocks for superior damping and handling

• 100% bolt-on installation requiring no drilling, cutting, or welding

• FK rod end bearings for extended longevity and minimal deflection under load

• 6061 aircraft-grade aluminum CNC machined components for strength and precision

• 2.0-inch Aluminum Series rear shocks with 5/8-inch shafts for balanced damping and ride quality

Fitment:
Lexus LX470 Base 1998
Lexus LX470 Base 1999
Lexus LX470 Base 2000
Lexus LX470 Base 2001
Lexus LX470 Base 2002
Lexus LX470 Base 2003
Lexus LX470 Base 2004
Lexus LX470 Base 2005
Lexus LX470 Base 2006
Lexus LX470 Base 2007
Toyota Land Cruiser Base 1998
Toyota Land Cruiser Base 1999
Toyota Land Cruiser Base 2000
Toyota Land Cruiser Base 2001
Toyota Land Cruiser Base 2002
Toyota Land Cruiser Base 2003
Toyota Land Cruiser Base 2004
Toyota Land Cruiser Base 2005
Toyota Land Cruiser Base 2006
Toyota Land Cruiser Base 2007
