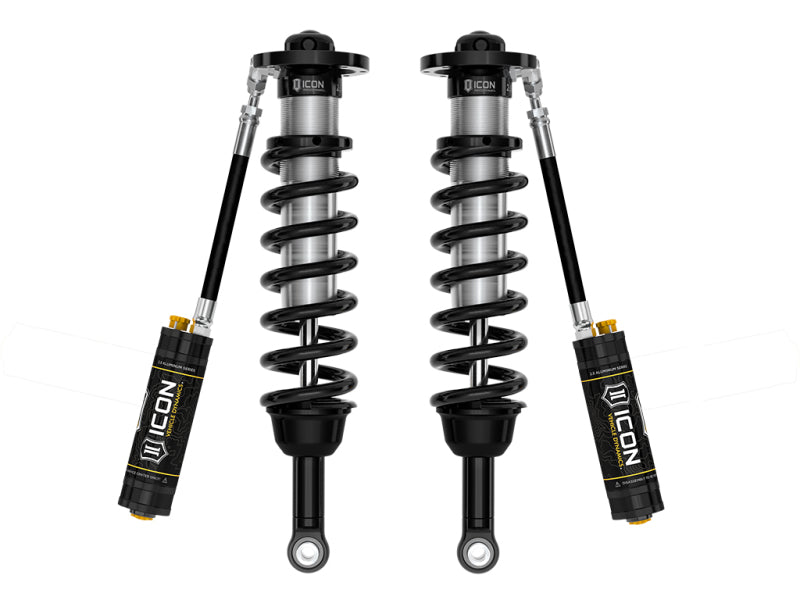

ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit

Name: ICON 23-24 Toyota Sequoia TRD Pro 2.5 VS RR CDCV Coilover Kit
Brand: ICON
SKU: ico58772C
Price: 2345.88 USD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$2,345.88

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2023-2026 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. APPLICATION NOTE #189: For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required. If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required.

Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
Remote reservoirs maintain cooler operating temperatures during extended off-road use
Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
ICON CDCV equipped for 10 settings of external compression damping adjustment
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection
Vehicle specific tuned for superior shock damping and control
Increased wheel travel and improved ride quality over stock
6061 Aircraft grade aluminum CNC machined components
Fully rebuildable and re-tunable
ICON engineered coil springs

Upgrade your 2023-2026 Toyota Sequoia TRD Pro with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks. These high-performance coilovers are designed specifically for the Sequoia TRD Pro, providing up to 2.5 inches of adjustable lift for enhanced off-road capability and larger wheel and tire compatibility. Featuring a larger 2.5-inch shock body and increased piston area, these shocks deliver maximum travel and superior ride quality both on and off the pavement. The vehicle-specific shock length ensures compatibility with the stock front upper control arms, eliminating the need for additional modifications while maintaining optimal suspension geometry. The remote reservoirs increase shock oil volume and heat dissipation surface area, significantly reducing the risk of overheating and cavitation during intense off-road use, which helps prevent damper fade and maintains consistent performance during extended drives. The inclusion of ICON’s exclusive Compression Damping Control Valves (CDCV) allows precise tuning of the suspension, with ten external compression damping settings for optimal control across a variety of terrains, from street driving to rock crawling and desert racing.

Constructed with corrosion-resistant CAD plated shock bodies and 7/8-inch diameter shafts, these coilovers are built for durability and longevity. FK rod end bearings provide minimal deflection and extended service life. Fully rebuildable and re-tunable, the shocks can be tailored to your specific driving style and conditions. The use of 6061 aircraft-grade aluminum CNC machined components ensures lightweight strength and precision. ICON’s engineered coil springs contribute to increased wheel travel and improved ride quality over stock suspension components. Designed for seamless integration, this coilover kit maintains the use of the stock front upper control arms, simplifying installation and ensuring vehicle stability. When paired with ICON 2.0 or 2.5 Aluminum Series rear shocks, this setup provides balanced vehicle control for a superior overall driving experience.

For additional off-road enhancements, ICON recommends the Diff Drop (part #55156) and Skid Plate Spacer Kit (part #55164) when installing this coilover kit on a Sequoia TRD Pro. Whether you're tackling rugged trails or cruising on highways, the ICON coilover kit offers the performance, adjustability, and durability needed to elevate your Toyota Sequoia TRD Pro’s suspension system.
