ICON 2024+ Toyota Tacoma 1.25in-3in Stage 5 Suspension System Billet w/ Triple Rate Spring

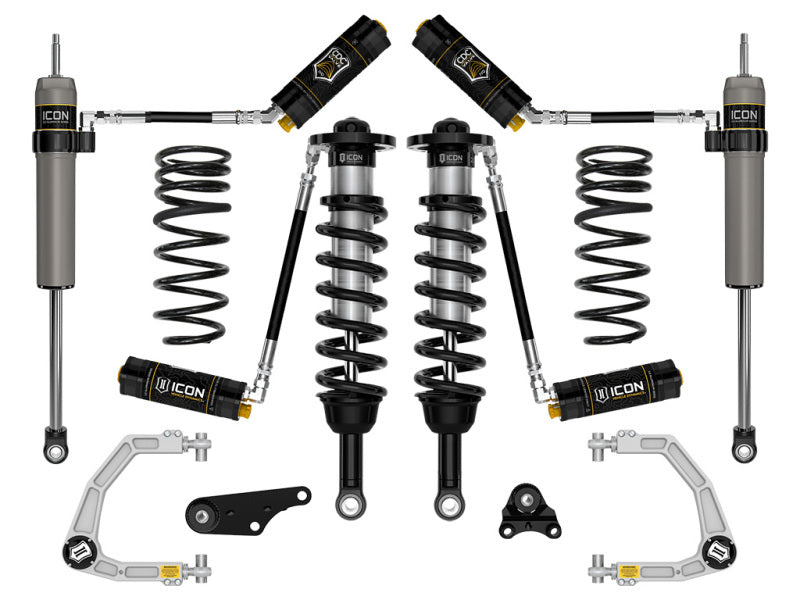

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 5 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring CDCV equipped remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

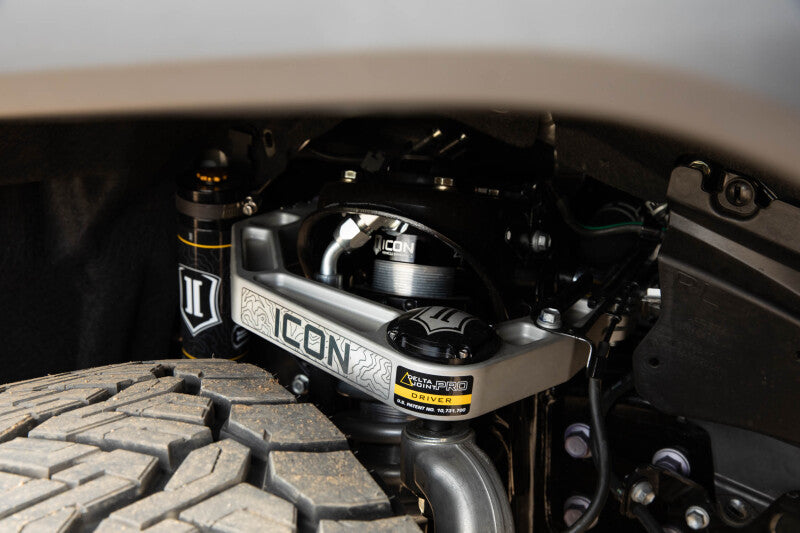

• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Upgrade your 2024 and 2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 5 Suspension System, engineered to deliver maximum performance both on and off-road. Designed specifically for 4WD models, this system enhances wheel travel and damping ability, providing exceptional vehicle control and ride quality. The kit features vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs and CDCV externally adjustable valves, allowing for 10 levels of compression damping force to be tailored to your driving style. Remote reservoirs increase shock oil volume and heat dissipation, significantly reducing the risk of overheating and damper fade during demanding off-road use. The coilovers are height adjustable from 1.25 to 3 inches of front lift, enabling the use of larger tires and aggressive wheel setups without compromising suspension performance. Front differential drop brackets are included to maximize wheel travel and prevent CV bind, while polyurethane differential bushings help limit differential movement under load for improved stability. The rear features triple rate coil springs that improve ride quality and provide approximately half an inch of rear lift, ensuring balanced suspension performance. All shocks have corrosion-resistant CAD-plated bodies with 7/8-inch shafts, and FK Rod End bearings offer extended longevity with minimal deflection. The system also incorporates CNC-machined 6061 aircraft-grade aluminum components, including billet aluminum UCAs with the patented Delta Joint Pro articulation for enhanced durability and caster/camber adjustment. The combination of these advanced features results in increased wheel travel, improved damping, and a more confident driving experience both on rugged trails and paved roads. This comprehensive suspension upgrade is essential for serious off-road enthusiasts and those seeking to maximize their Tacoma's capabilities with a reliable, high-performance system from ICON Vehicle Dynamics.

Features:

• 2.5 Series remote reservoir rear shocks with 7/8 inch shafts for balanced performance and durability

• Front differential drop brackets to improve CV joint angles and maximize wheel travel on 4WD models

• Vehicle-specific tuned 2.5 Series coilovers with remote reservoirs for superior damping and cooling

• Billet aluminum upper control arms (UCAs) with patented Delta Joint Pro for enhanced strength and articulation

• Externally adjustable CDC Valves offering 10 compression damping settings from soft to hard

• Triple rate rear coil springs providing improved ride quality and approximately 0.5 inch of rear lift

• Corrosion-resistant CAD plated coilover shock bodies with high-strength 7/8 inch shafts

• FK Rod End bearings for extended longevity and minimal deflection during demanding use

• Adjustable coilovers allowing 1.25 to 3 inches of front lift for larger wheel and tire setups

• CNC-machined 6061 aircraft-grade aluminum components for lightweight strength and durability

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
