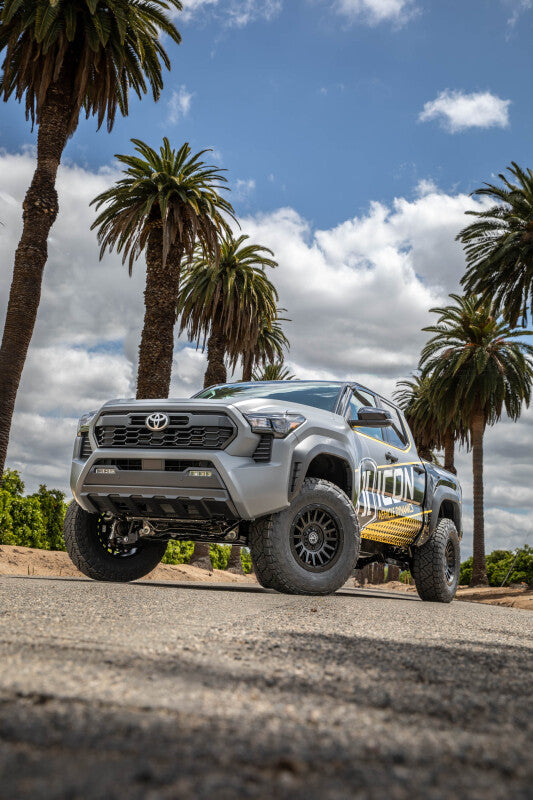

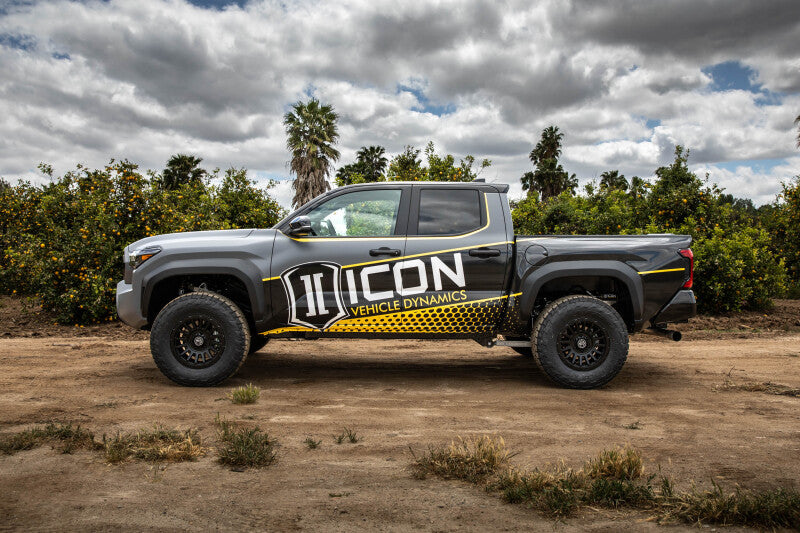

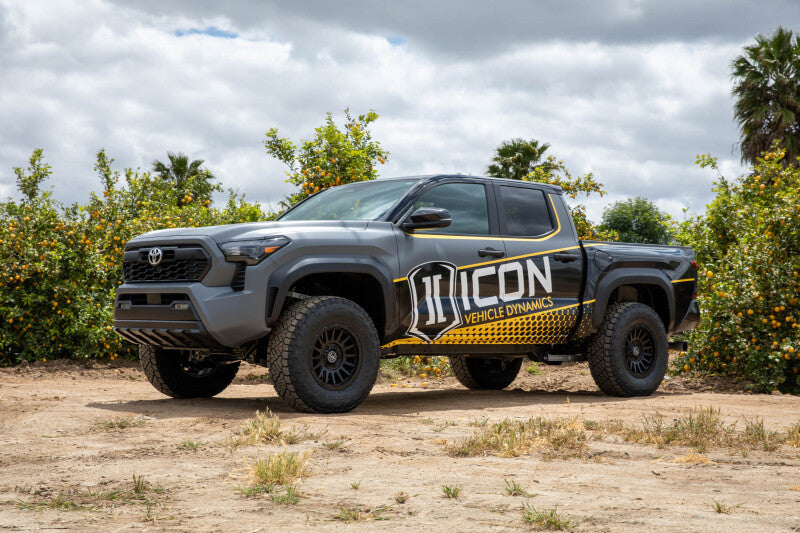

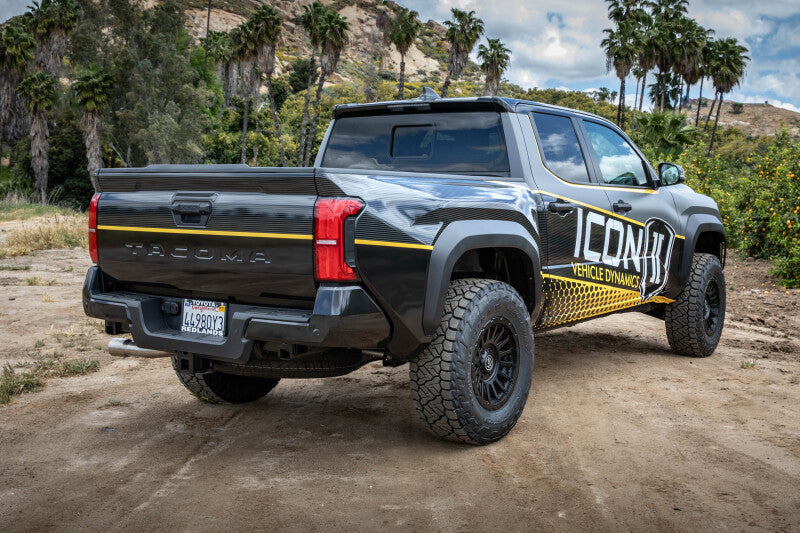

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 3 Suspension System Billet w/ Triple Rate Spring

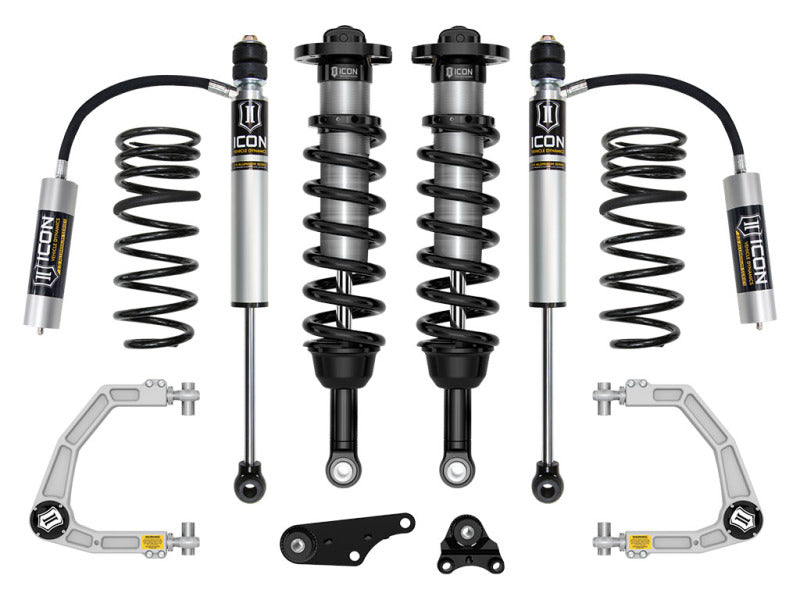

The ICON billet aluminum upper control arm kit is designed to improve the overall performance of the new Tacoma with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. The rear triple-rate coils provide softer droop and ride rates with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. ICON 2.0 Aluminum Series remote reservoir rear shocks provide improved cooling ability and utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Upgrade your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 3 suspension system, designed to enhance on-road comfort and off-road performance. This comprehensive kit features precision CNC-machined 6061 aircraft grade aluminum components, including billet aluminum upper control arms (UCAs) with patented Delta Joint PRO technology that offers 90 degrees of articulation for improved durability and wheel alignment. The front differential drop maximizes CV joint angles and wheel travel, ensuring smoother handling and greater off-road capability. ICON's engineered coil springs provide a 0.5-inch lift while improving ride quality and wheel travel, making the truck more capable in challenging terrains. The system includes vehicle-specific tuned shocks with remote reservoirs, which deliver superior damping, better cooling, and balanced performance from front to rear. The remote reservoir shocks utilize 5/8-inch shafts for added strength and durability, ensuring consistent performance under demanding conditions. The adjustable coilovers allow for a lift height ranging from 1.25 to 3 inches over stock, giving drivers flexibility to customize their ride height and stance. ICON's triple-rate rear coil springs enhance ride comfort during normal driving while providing increased resistance to bottoming out during off-road adventures. These features collectively improve wheel travel, suspension articulation, and overall ride quality, making this suspension system an excellent choice for serious off-road enthusiasts and daily drivers alike. Designed specifically for 4WD models, this kit provides a significant upgrade in suspension performance, ensuring your Tacoma is ready for both pavement and trail. Please note that 2WD models will require additional components, which are available separately. With a focus on durability, performance, and ease of adjustability, the ICON Stage 3 suspension system transforms your Toyota Tacoma into a more capable and comfortable vehicle for any adventure.

Features:

• Front differential drop improves CV joint angles and maximizes wheel travel on 4WD models

• Billet aluminum upper control arms (UCAs) with patented Delta Joint PRO for enhanced strength and articulation

• UCA features 90 degrees of total articulation for improved durability and alignment

• Triple-rate rear coil springs provide softer droop, firmer overload rate, and a 0.5-inch lift

• Vehicle-specific tuned front and rear shocks for superior damping and control

• Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts for durability

• FK rod end bearings ensure extended longevity and minimal deflection

• Remote reservoir shocks with 5/8-inch shafts for improved cooling and performance

• Adjustable coilovers allow lift height customization from 1.25 to 3 inches

• Enhanced wheel travel and ride quality over stock for improved off-road and on-road handling

• Constructed with CNC machined 6061 aircraft grade aluminum for strength and lightweight performance

• Engineered front and rear coil springs by ICON for optimized ride characteristics

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
