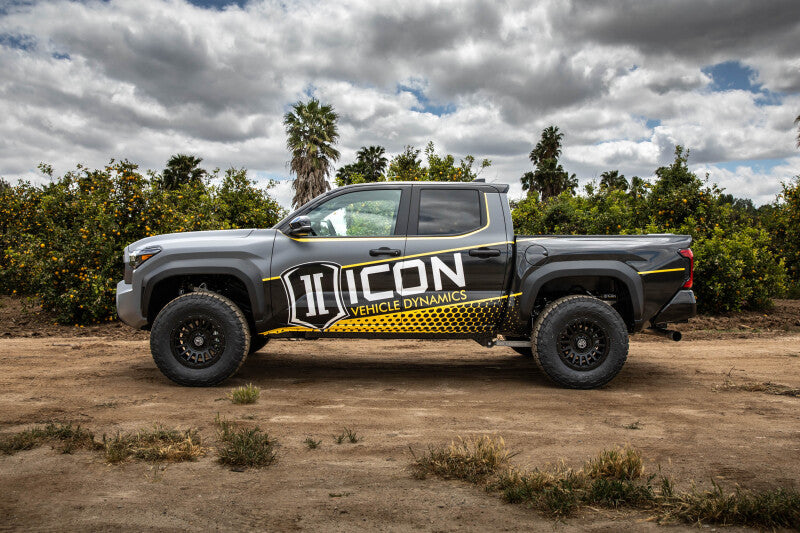

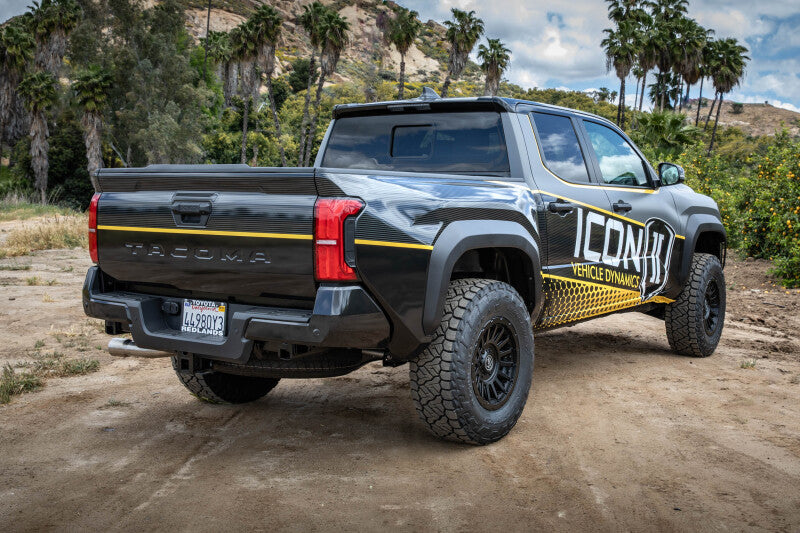

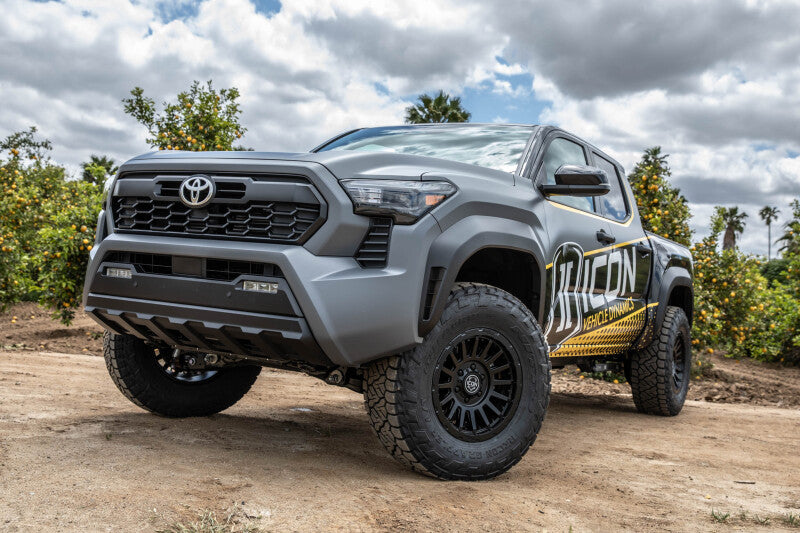

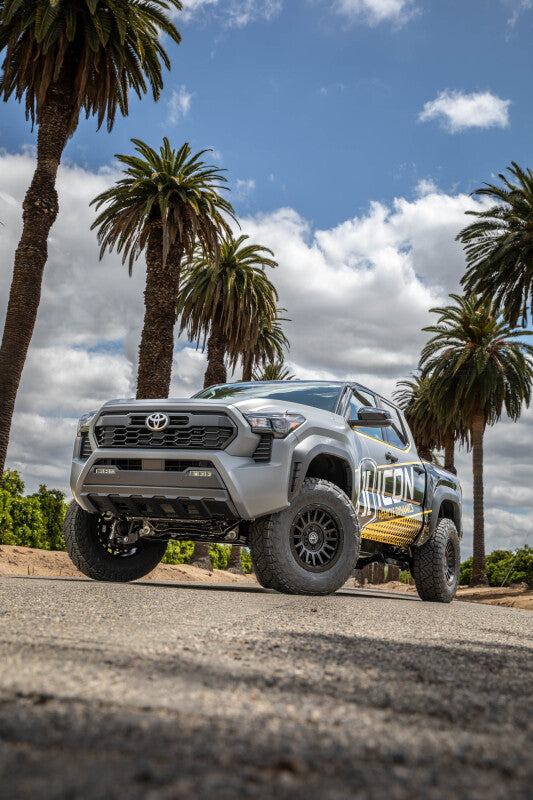

ICON 2024+ Toyota Tacoma Stage 4 Suspension System Tubular w/ Triple Rate Spring

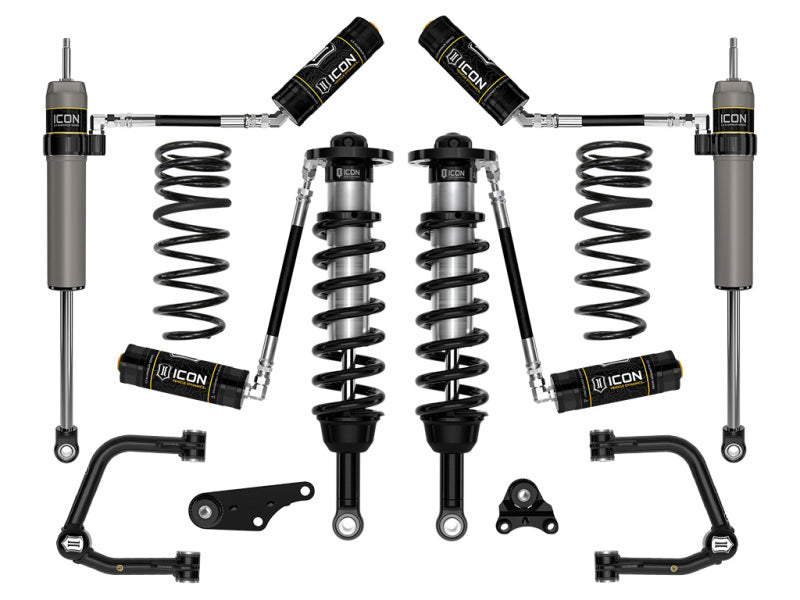

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 4 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring remote reservoirs and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These coilovers are also height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers
• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models

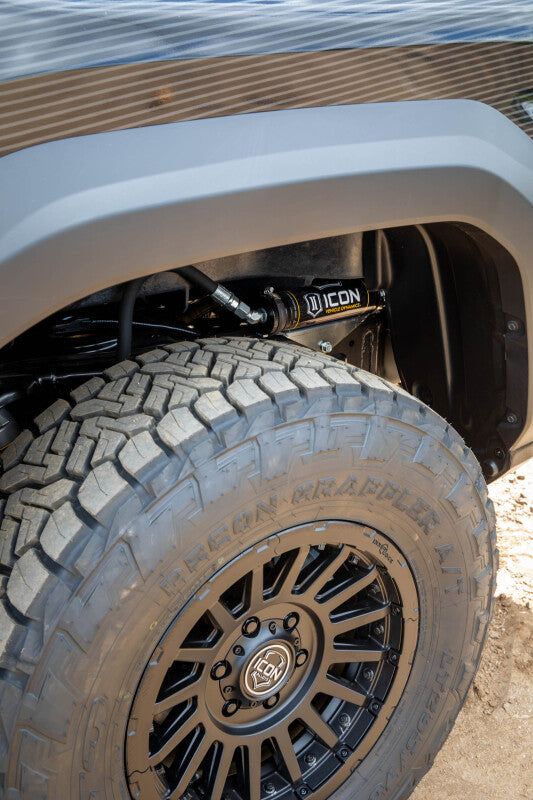

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable coilovers provide 1.25-3" front lift height over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered front and rear coil springs

Upgrade your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 4 suspension system, engineered for maximum performance and off-road capability. This comprehensive kit is designed specifically for 4WD models and enhances wheel travel, damping ability, and ride quality both on and off the road. The system features vehicle-specific tuned 2.5 Series coilover shocks with remote reservoirs, which provide increased shock oil volume and heat dissipation, reducing the risk of damper fade during demanding driving conditions. These coilovers are height adjustable from 1.25 to 3 inches, allowing for larger, more aggressive wheel and tire setups for improved off-road clearance and aesthetics. The kit also includes front differential drop brackets that optimize CV joint angles and prevent bind, ensuring maximum suspension travel and durability. Polyurethane differential bushings replace stock soft mounts, offering improved stability under load. The rear suspension is equipped with triple-rate coil springs that provide a .5 inch lift and enhance ride comfort and performance. Tubular upper control arms (UCAs) with the patented Delta Joint Pro design offer 90 degrees of articulation, contributing to better wheel alignment, durability, and drivability. Constructed from CNC-machined 6061 aircraft-grade aluminum and finished with corrosion-resistant CAD plating, these components are built for strength and longevity. FK rod end bearings extend the lifespan of moving parts with minimal deflection, maintaining consistent handling and control. This system is ideal for serious drivers seeking reliable off-road performance, increased wheel travel, and improved ride quality. Please note, this kit is configured for 4WD models; 2WD-specific kits are in development. With ICON's engineering focus on damping, wheel travel, and durability, this suspension system transforms your Tacoma's off-road capability and on-road comfort, making it a top choice for enthusiasts seeking a high-performance upgrade.

Features:

• 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts for enhanced performance and balanced tuning

• Front differential drop brackets to improve CV joint angles and maximize wheel travel on 4WD models

• 2.5 Series front coilovers with remote reservoirs for superior damping and improved shock cooling

• Patented Delta Joint Pro UCA design with 90 degrees of articulation for better alignment and durability

• Triple-rate rear coil springs providing a .5" lift and improved ride quality

• Tubular upper control arms for added strength, durability, and alignment correction

• Corrosion-resistant CAD plated coilover shock bodies with 7/8" shafts for longevity

• Adjustable coilovers offering 1.25 to 3 inches of front lift over stock

• FK rod end bearings for extended lifespan and minimal deflection

• Constructed from CNC-machined 6061 aircraft-grade aluminum for superior strength

• ICON engineered front and rear coil springs designed for optimal performance

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
