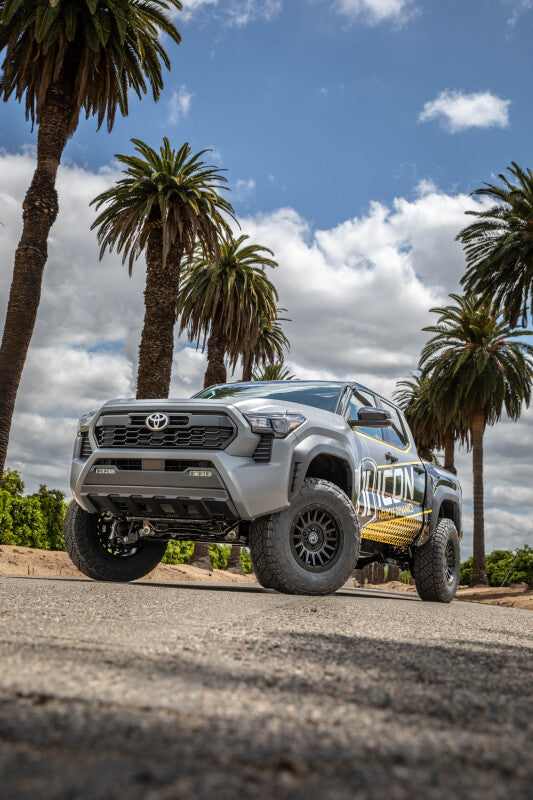

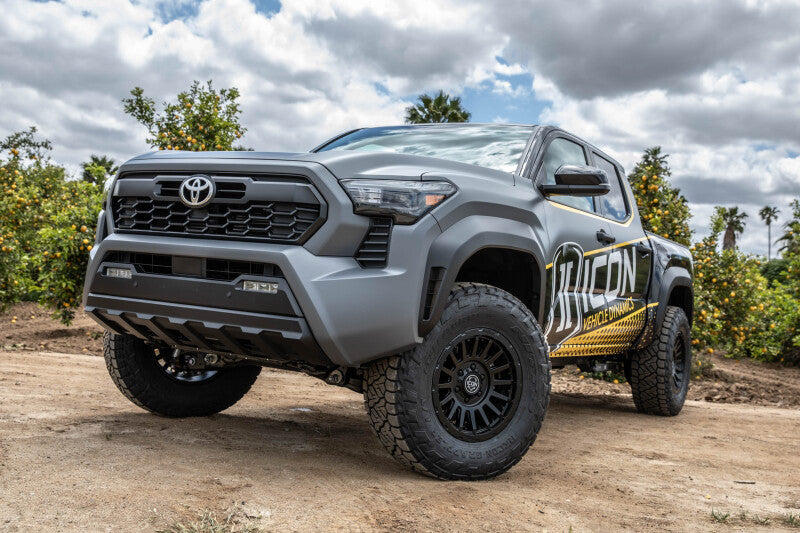

ICON 2024+ Toyota Tacoma 1.25in-3in Stage 2 Suspension System Tubular

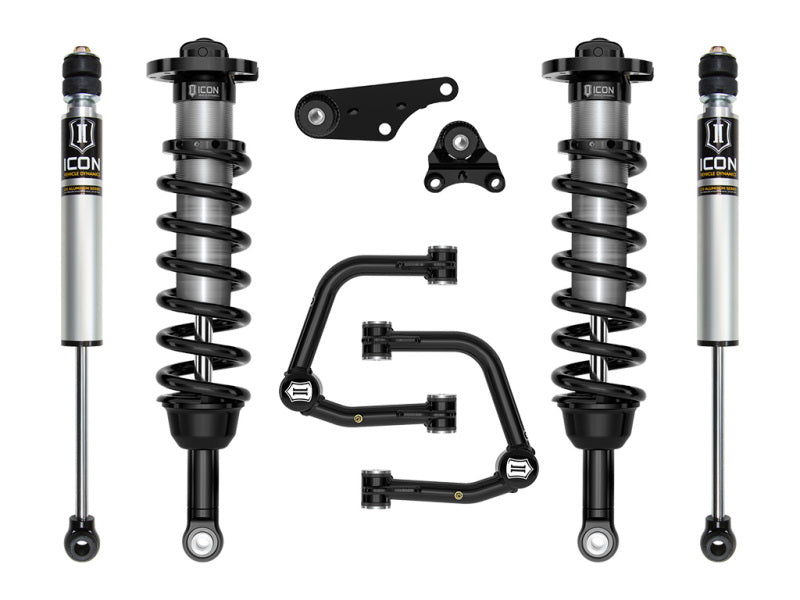

ICON Vehicle Dynamics 2024-2025 Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on- and off-road. This Stage 2 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 1.25-3” of front lift height over stock, allowing the use of larger, more aggressive wheel and tire combinations. The combination of front differential drop brackets and ICON’s specifically designed coilover lengths maximizes the available front suspension travel and prevent CV bind. Additionally, polyurethane differential mounting bushings replace the soft OE bushings to help limit differential movement under load. The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2024 Toyota Tacoma with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. ICON 2.0 Aluminum Series internal reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2024-2025 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt. ICON Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road. APPLICATION NOTE #206: This kit is configured for fitment on 4WD models. If installing onto a 2WD Toyota Tacoma, front differential drop kit part number 55160 is not needed and the other suspension system components can be purchased individually with full system functionality. 2WD specific kits are coming soon!

• Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers provide 1.25-3" front lift height over stock
• Increased wheel travel and improved ride quality over stock
• 6061 aircraft grade aluminum CNC machined components
• ICON engineered coil springs

Enhance your 2024-2025 Toyota Tacoma with the ICON Vehicle Dynamics Stage 2 suspension system, engineered for serious drivers seeking maximum performance on and off-road. This comprehensive kit focuses on increasing wheel travel and damping capacity, providing exceptional vehicle control, improved ride quality, and enhanced handling capabilities. The system features vehicle-specific tuned 2.5 Series coilover shocks with internal reservoirs, offering superior cooling and consistent damping during demanding drives. The coilovers are height adjustable from 1.25 to 3 inches, allowing for larger, more aggressive wheel and tire setups to improve off-road capability and aesthetics.
ICON’s front differential drop brackets and specifically designed coilover lengths maximize front suspension travel and prevent CV bind, ensuring smooth articulation. The polyurethane differential mounting bushings replace stock soft bushings to limit differential movement under load, contributing to overall stability. The included ICON tubular upper control arm kit improves front-end geometry, corrects alignment, adds caster, and enhances suspension component clearance. Replacing the OE ball joint with the serviceable ICON Delta Joint PRO allows for full bump and droop travel without bind, ensuring reliable performance and longevity.
The rear shocks utilize ICON’s 2.0 Aluminum Series internal reservoir design with vehicle-specific valving for balanced performance from front to rear. These shocks feature corrosion-resistant CAD-plated bodies with 7/8-inch shafts, providing durability and consistent damping throughout driving conditions. FK Rod End bearings extend component longevity and minimize deflection, contributing to precise handling. The entire suspension system is constructed from durable 6061 aircraft-grade aluminum CNC-machined components and features ICON-engineered coil springs for optimal ride quality.
This suspension kit is designed specifically for 4WD models of the Toyota Tacoma, with optional modifications available for 2WD configurations. The system improves wheel travel, ride comfort, and off-road performance while maintaining a comfortable daily driving experience. Whether tackling rugged trails or cruising on highways, this ICON Stage 2 suspension system offers a significant upgrade over stock, providing the durability, adjustability, and performance that serious off-road enthusiasts demand.

Features:

• Front differential drop provides improved CV joint angles and maximizes wheel travel on 4WD models

• Vehicle-specific tuned front and rear shocks for superior damping and control

• Height adjustable coilovers from 1.25 to 3 inches for increased ground clearance and larger wheel/tire fitment

• Patented Delta Joint PRO for full articulation and bind-free front suspension travel

• Tubular upper control arms for added strength, durability, and improved alignment

• Corrosion-resistant CAD-plated coilover shock bodies with 7/8-inch shafts

• ICON 2.0 Aluminum Series internal reservoir rear shocks with 5/8-inch shafts for balanced rear performance

• FK Rod End bearings for extended longevity and minimal deflection

• Constructed from 6061 aircraft-grade aluminum CNC-machined components for durability

• Includes ICON-engineered coil springs for optimal ride feel and performance

Fitment:
Toyota Tacoma Limited 2024
Toyota Tacoma SR5 2024
Toyota Tacoma SR5 2025
Toyota Tacoma TRD Off-Road 2024
Toyota Tacoma TRD Off-Road 2025
Toyota Tacoma TRD Sport 2024
Toyota Tacoma TRD Sport 2025
