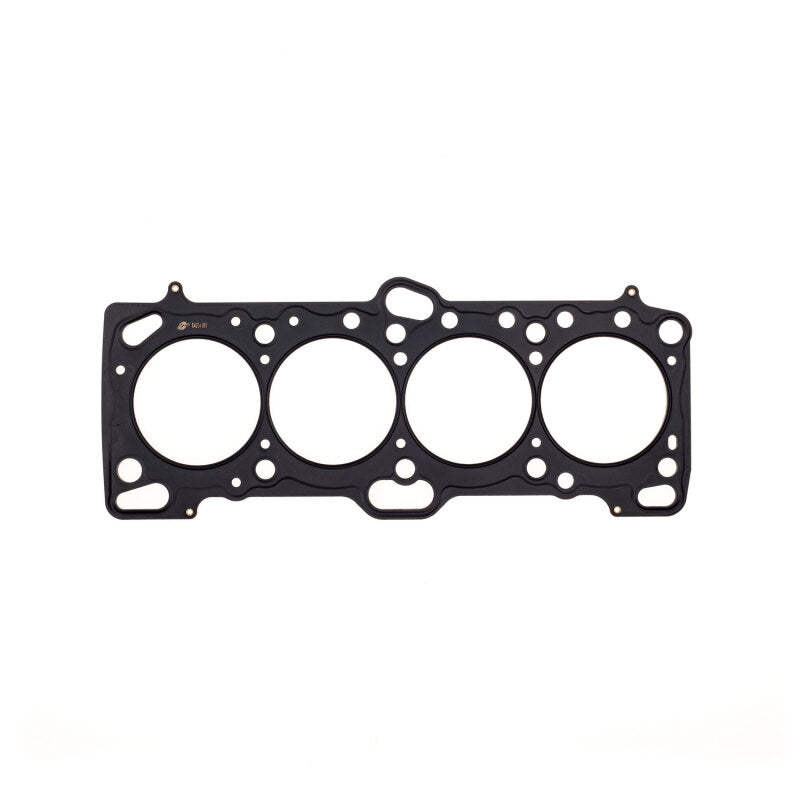

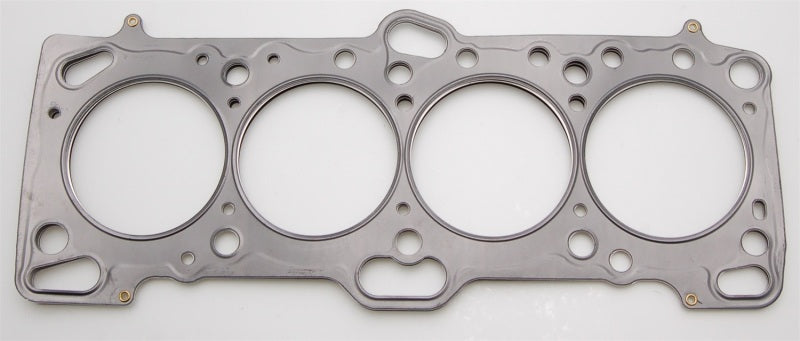

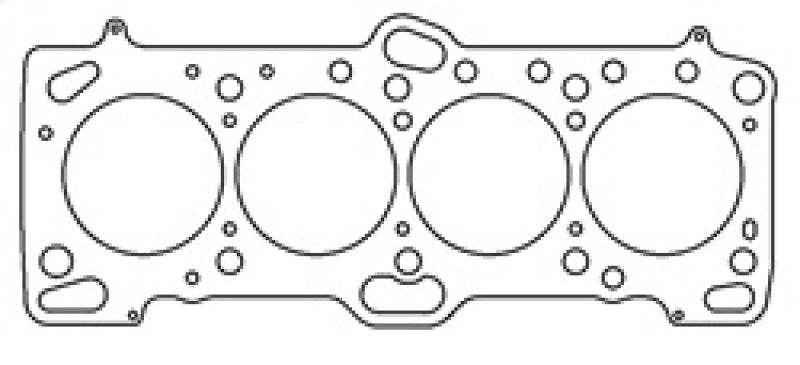

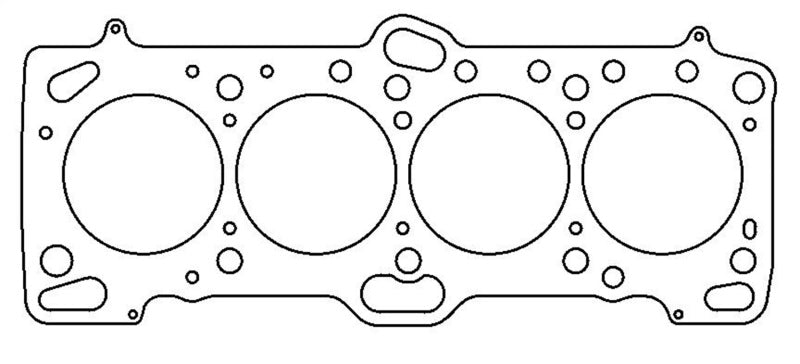

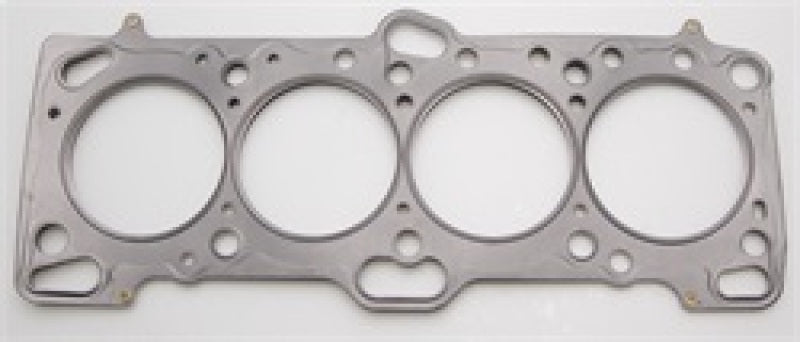

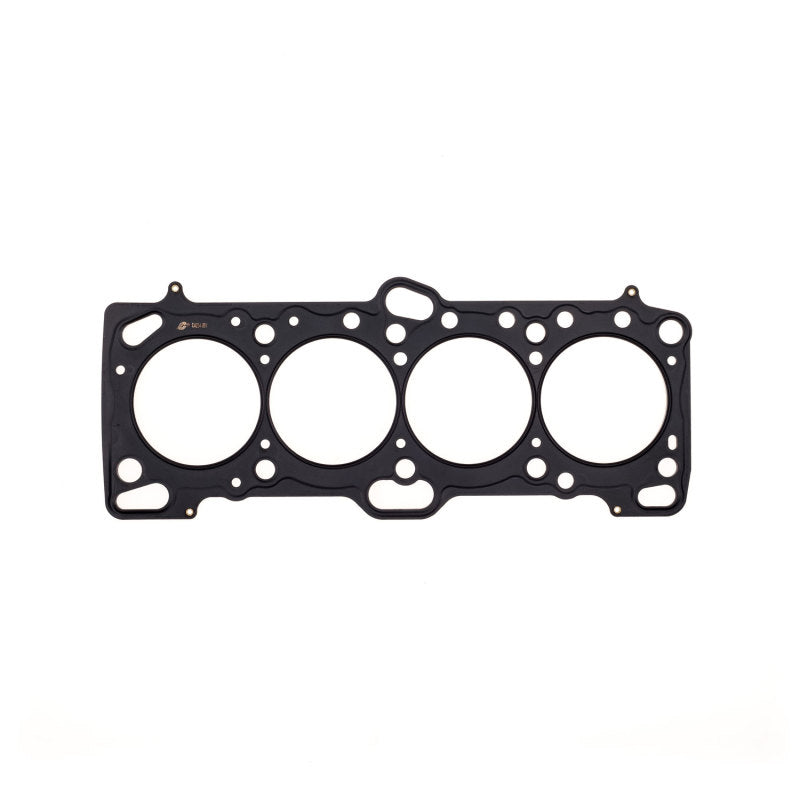

Cometic Mitsubishi 4G63/T 86mm .095 inch MLS Head Gasket Eclipse / Galant/ Lancer Thru EVO3

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.095". EVO 1-3. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements. Mitsubishi 4G63/4G63T .095in. MLS Cylinder Head Gasket; 86mm Bore; DOHC; Except 1996-2005 Lancer Evolution

• The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
• The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
• Requires less clamp load creating less bore distortion
• Conforms load distribution across the sealing area
• Embossed Outer Layers Coated w/Viton

The Cometic Gasket Mitsubishi 4G63/T 86mm .095 inch MLS Head Gasket is engineered for high-performance engine sealing in various Mitsubishi models including Eclipse, Galant, and Lancer Evolution through EVO 3. Crafted with multiple embossed layers of stainless steel, this gasket features outer layers coated with Viton rubber, which offers exceptional heat resistance and durability in harsh sealing environments. The compressed operating thickness of 0.095 inches ensures a reliable seal under demanding conditions, making it suitable for high-output engines without the need for additional sealants. This MLS gasket is designed to accommodate aluminum heads to aluminum blocks as well as aluminum heads to cast iron blocks, effectively resisting shearing forces caused by different materials and maintaining integrity during extreme load conditions. The uncoated stainless steel shim layer can be tailored to meet specific thickness requirements, providing flexibility for precise engine build specifications. The embossed outer layers enhance load distribution and conform to surface irregularities, promoting consistent sealing performance across varied surface finishes. Its advanced construction reduces clamp load requirements, thereby minimizing bore distortion and ensuring optimal compression sealing. This gasket is an ideal choice for performance enthusiasts seeking a reliable, durable, and high-quality sealing solution for Mitsubishi engines. It is suited for models including 1992-1994 Mitsubishi Eclipse, 1990-1992 Eagle Talon, and 1992-1992 Mitsubishi Galant, offering a perfect fit for a range of high-performance applications and engine rebuilds. The gasket’s robust design and material composition ensure longevity and resistance to corrosion, supporting sustained engine efficiency and performance.

Features:

• Multiple embossed stainless steel layers for enhanced strength and durability

• Outer layers coated with Viton rubber for heat resistance up to 482°F

• Uncoated stainless steel shim layer customizable for various thickness requirements

• Designed for aluminum heads to aluminum blocks and aluminum to cast iron block applications

• Reduces clamp load and minimizes bore distortion for reliable sealing

Fitment:
Eagle Talon Base 1990
Eagle Talon TSi 1990
Mitsubishi Eclipse Base 1990
Mitsubishi Eclipse Base 1991
Mitsubishi Eclipse Base 1992
Mitsubishi Eclipse Base 1996
Mitsubishi Eclipse Base 1997
Mitsubishi Eclipse GS 1990
Mitsubishi Eclipse GS 1991
Mitsubishi Eclipse GS 1992
Mitsubishi Eclipse GS 1993
Mitsubishi Eclipse GS 1994
Mitsubishi Eclipse GS 1995
Mitsubishi Eclipse GS 1996
Mitsubishi Eclipse GS 1997
Mitsubishi Eclipse GS 1998
Mitsubishi Eclipse GS 1999
Mitsubishi Eclipse GST 1990
Mitsubishi Eclipse GST 1991
Mitsubishi Eclipse GST 1992
Mitsubishi Eclipse GST 1995
Mitsubishi Eclipse GST 1996
Mitsubishi Eclipse GST 1997
Mitsubishi Eclipse GST 1998
Mitsubishi Eclipse GST 1999
Mitsubishi Eclipse GSX 1990
Mitsubishi Eclipse GSX 1991
Mitsubishi Eclipse GSX 1992
Mitsubishi Eclipse GSX 1995
Mitsubishi Eclipse GSX 1996
Mitsubishi Eclipse GSX 1997
Mitsubishi Eclipse GSX 1998
Mitsubishi Eclipse GSX 1999
Mitsubishi Eclipse Spyder GST 1996
Mitsubishi Eclipse Spyder GST 1997
Mitsubishi Eclipse Spyder GST 1998
Mitsubishi Eclipse Spyder GST 1999
Mitsubishi Galant Base 1989
Mitsubishi Galant Base 1990
Mitsubishi Galant Base 1991
Mitsubishi Galant Base 1992
Mitsubishi Galant GS 1989
Mitsubishi Galant GS 1990
Mitsubishi Galant GS 1991
Mitsubishi Galant GS 1992
Mitsubishi Galant GSR 1991
Mitsubishi Galant GSR 1992
Mitsubishi Galant GSX 1990
Mitsubishi Galant GSX 1991
Mitsubishi Galant GSX 1992
Mitsubishi Galant LS 1989
Mitsubishi Galant LS 1990
Mitsubishi Galant LS 1991
Mitsubishi Galant LS 1992
Mitsubishi Galant VR-4 1991
Mitsubishi Galant VR-4 1992
