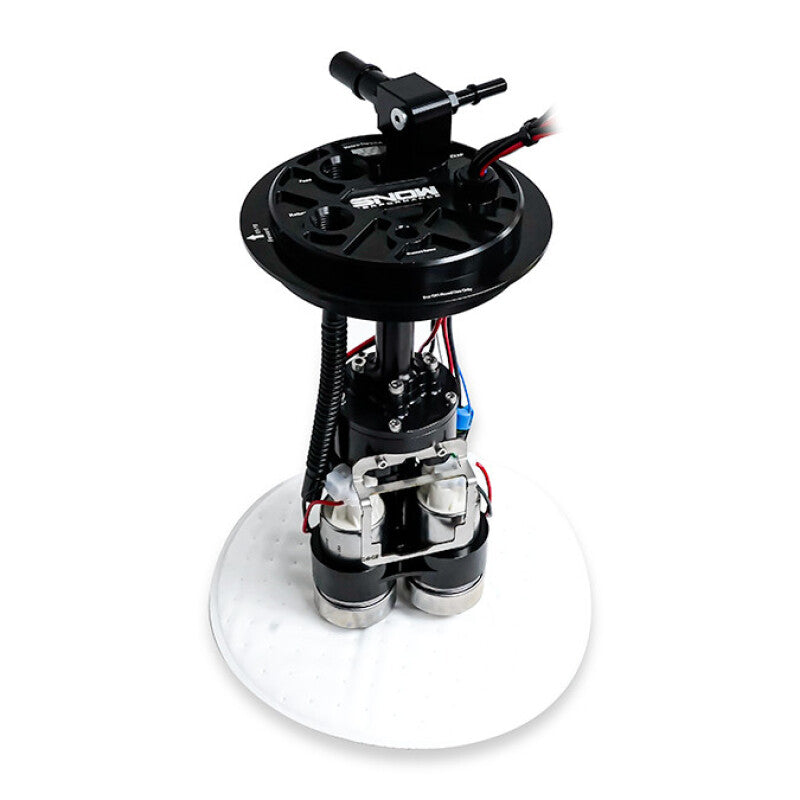

Snow 2019+ GM Half Ton High Output Fuel Hat

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). 2019+ GM Half Ton Truck, Denali, Fuel Hat High Output Version (3 Pump, 1-274 and 2-285) 3 Pump Xtreme Configuration (Three 490lph 535 pumps). This configuration can support 1900+ on E85 and up to 2500 rwhp on gasoline. This configuration is designed for max/effort/flow. (All 3 pumps MUST run at the same time! If all 3 pumps are not running at the same time, you will see pressure issues because it will backfeed through the remaining unpowered pump (s). If you are looking to stage your pumps, this Xtreme configuration will not work. You will need to run our 3 Pump Race, 3 Pump Street, or 2 Pump Street.)

• Does NOT include Fuel Level Sending Unit. Does NOT Include Fittings.
• Includes Wiring Harnesses for pumps and fuel level sending unit.

Upgrade your GM half-ton truck with the Snow Performance 2019+ GM Half Ton High Output Fuel Hat, part number snoSNF-52710H. Designed to replace your factory fuel hat, this high-performance assembly features a CNC-machined billet aluminum body with a durable black anodized finish, ensuring corrosion resistance and longevity. Built in the USA from 6061 aluminum, it provides a sleek and robust upgrade suitable for demanding fuel setups. The fuel hat is compatible with E85 and other aggressive fuel blends, making it ideal for high horsepower applications and tuning flexibility. The assembly includes CNC-machined passages and Viton chemical-resistant O-rings that guarantee a leak-free connection, eliminating the need for rubber hoses and hose clamps often associated with multi-pump upgrades. It retains factory features such as the fuel level sending unit, EVAP system, filler neck, and fuel transfer pump functionality for saddle-style tanks, simplifying installation and ensuring factory compatibility. The fuel hat is equipped with female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters sold separately for custom line routing. This system supports configurations with 2 or 3 genuine TI Automotive (Walbro) fuel pumps, offering flow rates of 450LPH or 470LPH, respectively. The three-pump Xtreme configuration, featuring three 490LPH pumps, can support over 1900 horsepower on E85 and up to 2500 horsepower on gasoline, making it suitable for extreme performance builds. Please note that these pumps are designed exclusively for return-style fuel systems and are not compatible with returnless setups. The kit includes wiring harnesses for the pumps and fuel level sending unit but does not include fittings or the fuel level sensor. Engineered for high demand applications, this product is ideal for enthusiasts seeking reliable, high-flow fuel delivery for tuned trucks and race vehicles. It fits a range of 2019-2023 GMC Sierra 1500 and Canyon models and is a reliable upgrade for serious fuel system enthusiasts.

Features:

• Constructed from CNC-machined 6061 billet aluminum with black anodized finish for durability and corrosion resistance

• Compatible with E85 and other aggressive fuel blends for maximum flexibility

• Includes Viton chemical-resistant O-rings ensuring a leak-free seal

• Retains factory features including fuel level sensor, EVAP, filler neck, and transfer pump compatibility

• Supports multi-pump configurations with genuine TI Automotive (Walbro) pumps in flow rates of 450LPH or 470LPH

• Supports high horsepower applications with a 3-pump Xtreme setup capable of over 1900+ HP on E85

• Includes wiring harnesses for pumps and fuel level sending unit, no additional fittings required

• Fittings and fuel level sensor not included, with optional 90-degree swivel adapters sold separately

• Designed exclusively for return-style fuel systems, not suitable for returnless setups

• Fits 2019-2023 GMC Sierra 1500 and Canyon models, ensuring a perfect upgrade for compatible trucks

Fitment:
GMC Canyon Denali 2019
GMC Canyon Denali 2020
GMC Canyon Denali 2021
GMC Canyon Denali 2022
GMC Canyon Denali 2023
GMC Canyon Denali 2024
GMC Canyon Denali 2025
GMC Sierra 1500 Denali 2019
GMC Sierra 1500 Denali 2020
GMC Sierra 1500 Denali 2021
GMC Sierra 1500 Denali 2022
GMC Sierra 1500 Denali 2023
GMC Sierra 1500 Denali 2024
GMC Sierra 1500 Denali 2025
