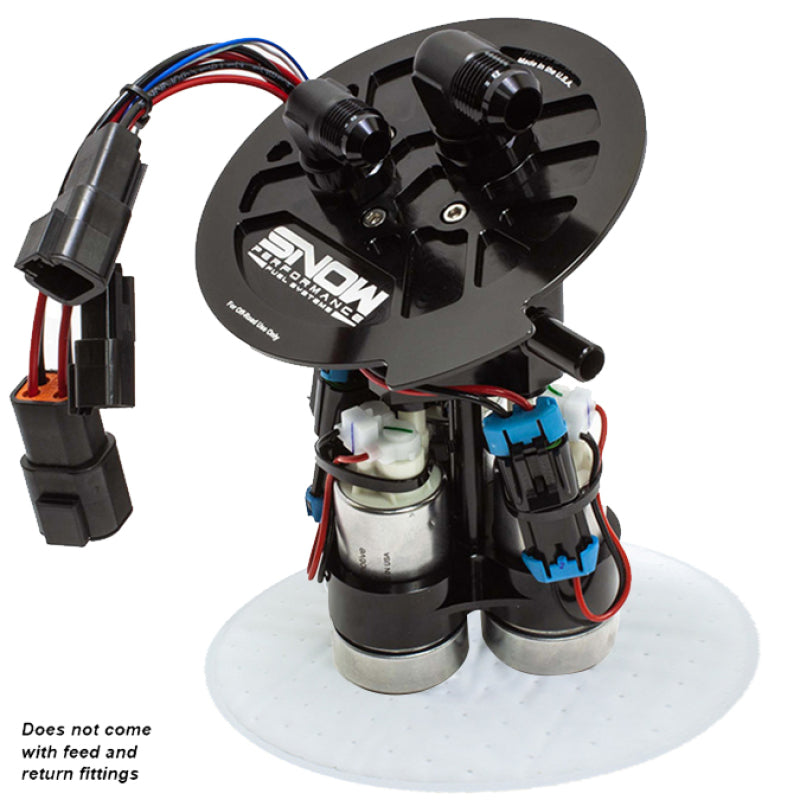

Snow Performance 2011+Mustang Xtreme Version Fuel Hat (3 Pump 3-295 )

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). 3 Pump Xtreme Configuration (Three 490lph 535 pumps). This configuration can support 1900+ on E85 and up to 2500 rwhp on gasoline. This configuration is designed for max/effort/flow. (All 3 pumps MUST run at the same time! If all 3 pumps are not running at the same time, you will see pressure issues because it will backfeed through the remaining unpowered pump (s). If you are looking to stage your pumps, this Xtreme configuration will not work. You will need to run our 3 Pump Race, 3 Pump Street, or 2 Pump Street.)

• Includes Wiring Harness for pumps and fuel level sending unit. Does NOT include Fuel Level Sending Unit.
• Does NOT Include Fittings

Upgrade your Ford Mustang with the Snow Performance Xtreme Version Fuel Hat, designed specifically for models from 2011 and up. Crafted from durable 6061 billet aluminum and finished with a black anodized coating, this fuel hat is built to withstand harsh fuels such as E85 while providing exceptional durability and corrosion resistance. It replaces your factory fuel hat or bucket, allowing for an easier installation process without sacrificing vehicle features like the OE fuel level sensor, EVAP system, filler neck, or fuel transfer pump if equipped with a saddle tank. The CNC-machined design includes passages that eliminate the need for T-fittings, hoses, and clamps, reducing potential leak points and improving reliability. The assembly features female 10AN ORB feed and 8AN ORB return ports, with optional 90-degree swivel adapters (sold separately) to customize line routing. Engineered for high performance, this configuration supports over 1900 horsepower on E85 and up to 2500 horsepower on gasoline, making it ideal for high-output applications. The kit includes a wiring harness for the pumps and fuel level sending unit, but does not include the fuel level sending unit or fittings, offering flexibility for your specific setup. The system is compatible solely with return-style fuel systems and includes genuine TI Automotive (Walbro) fuel pumps available in 450LPH or 470LPH flow rates, ensuring OE reliability. The three-pump Xtreme configuration features three 490LPH pumps operating simultaneously for maximum flow, but requires all three pumps to run together to prevent pressure issues. This setup is recommended for maximum effort builds, with alternatives available for staged pump configurations. Designed for professional high-performance applications, the Snow Performance fuel hat delivers a leak-free, reliable upgrade for serious racers and enthusiasts alike.

Features:

• Constructed from CNC-machined 6061 billet aluminum with a durable black anodized finish for corrosion resistance

• Replaces factory fuel hat for easy installation without losing factory features like fuel level sensor and EVAP system

• s female 10AN ORB feed and 8AN ORB return ports; optional 90-degree swivel fittings sold separately

• Supports high horsepower applications with configurations supporting over 1900+ HP on E85 and up to 2500 HP on gasoline

• Includes wiring harness for pumps and fuel level sender; compatible with genuine Walbro (TI Automotive) fuel pumps in 450LPH or 470LPH flow rates

• Designed exclusively for return-style fuel systems; not suitable for returnless systems

• Three-pump Xtreme configuration provides maximum flow; all pumps must operate simultaneously for proper performance

• Built in the USA, engineered for durability, chemical resistance, and long-lasting performance

Fitment:
Ford Mustang Base 2011
Ford Mustang Base 2012
Ford Mustang Base 2013
Ford Mustang Base 2014
Ford Mustang Boss 302 2012
Ford Mustang Boss 302 2013
Ford Mustang Bullitt 2019
Ford Mustang Bullitt 2020
Ford Mustang Dark Horse 2025
Ford Mustang Dark Horse Premium 2025
Ford Mustang EcoBoost 2015
Ford Mustang EcoBoost 2016
Ford Mustang EcoBoost 2017
Ford Mustang EcoBoost 2018
Ford Mustang EcoBoost 2019
Ford Mustang EcoBoost 2020
Ford Mustang EcoBoost 2021
Ford Mustang EcoBoost 2022
Ford Mustang EcoBoost 2023
Ford Mustang EcoBoost 2025
Ford Mustang EcoBoost Premium 2015
Ford Mustang EcoBoost Premium 2016
Ford Mustang EcoBoost Premium 2017
Ford Mustang EcoBoost Premium 2018
Ford Mustang EcoBoost Premium 2019
Ford Mustang EcoBoost Premium 2020
Ford Mustang EcoBoost Premium 2021
Ford Mustang EcoBoost Premium 2022
Ford Mustang EcoBoost Premium 2023
Ford Mustang EcoBoost Premium 2025
Ford Mustang GT 2011
Ford Mustang GT 2012
Ford Mustang GT 2013
Ford Mustang GT 2014
Ford Mustang GT 2015
Ford Mustang GT 2016
Ford Mustang GT 2017
Ford Mustang GT 2018
Ford Mustang GT 2019
Ford Mustang GT 2020
Ford Mustang GT 2021
Ford Mustang GT 2022
Ford Mustang GT 2023
Ford Mustang GT 2025
Ford Mustang GT 50 Years Limited Edition 2015
Ford Mustang GT Premium 2015
Ford Mustang GT Premium 2016
Ford Mustang GT Premium 2017
Ford Mustang GT Premium 2018
Ford Mustang GT Premium 2019
Ford Mustang GT Premium 2020
Ford Mustang GT Premium 2021
Ford Mustang GT Premium 2022
Ford Mustang GT Premium 2023
Ford Mustang GT Premium 2025
Ford Mustang GTD 2025
Ford Mustang Mach 1 2021
Ford Mustang Mach 1 2022
Ford Mustang Mach 1 2023
Ford Mustang Shelby GT350 2015
Ford Mustang Shelby GT350 2016
Ford Mustang Shelby GT350 2017
Ford Mustang Shelby GT350 2018
Ford Mustang Shelby GT350 2019
Ford Mustang Shelby GT350 2020
Ford Mustang Shelby GT350R 2015
Ford Mustang Shelby GT350R 2016
Ford Mustang Shelby GT350R 2017
Ford Mustang Shelby GT350R 2018
Ford Mustang Shelby GT350R 2019
Ford Mustang Shelby GT350R 2020
Ford Mustang Shelby GT500 2011
Ford Mustang Shelby GT500 2012
Ford Mustang Shelby GT500 2013
Ford Mustang Shelby GT500 2014
Ford Mustang Shelby GT500 2020
Ford Mustang Shelby GT500 2021
Ford Mustang Shelby GT500 2022
Ford Mustang V6 2015
Ford Mustang V6 2016
Ford Mustang V6 2017
