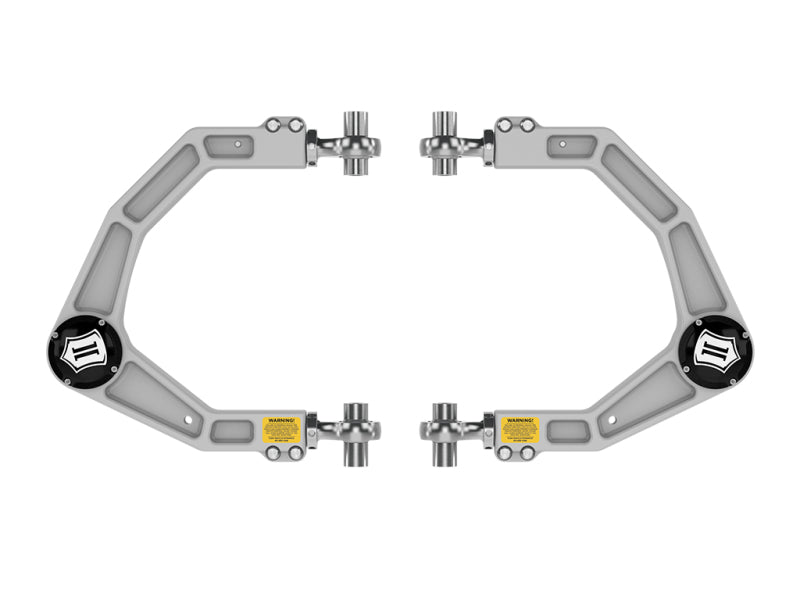

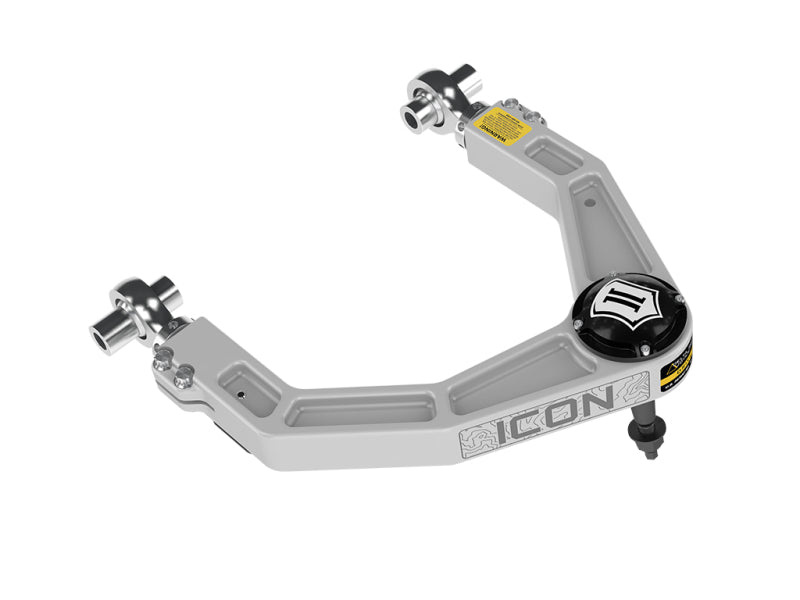

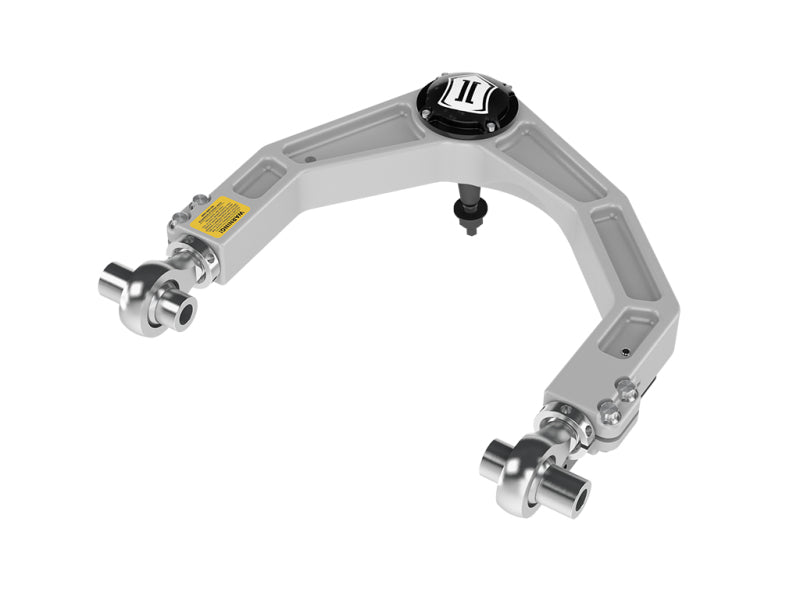

ICON Ford F-150 Raptor Billet Upper Control ARM w/ Delta Joint Pro Kit

Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint Pro, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. Recommended Aftermarket Tires: 35X12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

• Corrects suspension geometry and allows for proper wheel alignment on Gen3 Raptors with up to 3” of front lift
• Patented Delta Joint PRO (U.S. Pat. 10,731,700) allows maximum articulation without binding

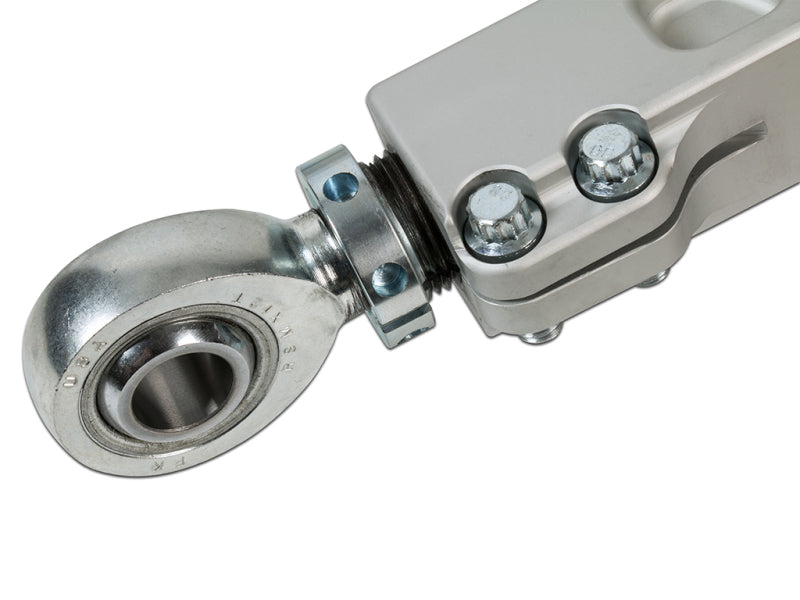

• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• CNC machined 6061 billet aluminum construction with satin anodized finish
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO is 100% serviceable and rebuildable
• Built in O-ring sealed dust cover cap

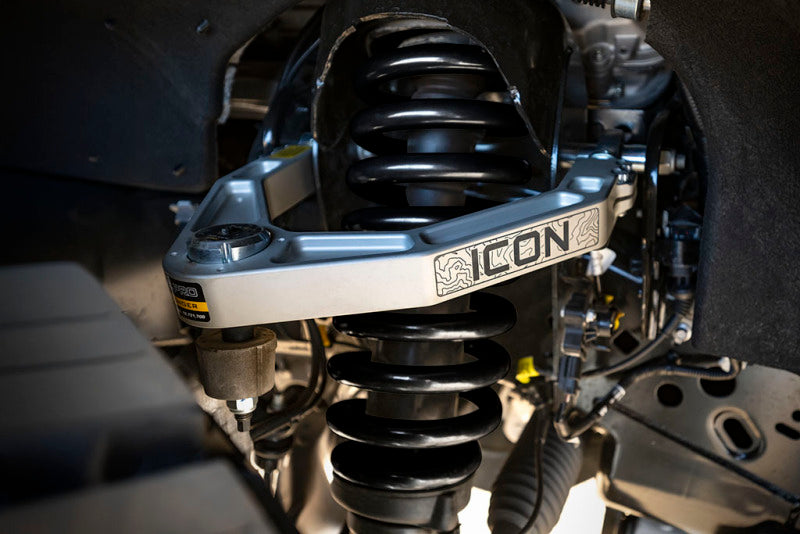

Upgrade your Ford F-150 Raptor with the ICON Billet Upper Control Arm featuring the innovative Delta Joint PRO. Crafted from CNC machined 6061 aluminum with a satin anodized finish, this control arm offers both strength and precise fitment for models from 2021 to 2025. The integrated Delta Joint PRO provides an exceptional 90 degrees of articulation, a 14% increase over previous designs, ensuring maximum suspension flexibility and bind-free movement across the full range of travel. This advanced joint combines the durability of factory-style ball joints with the performance advantages of a uniball, utilizing a larger ball with 56% more bearing surface, improved lubrication seals, and a hardened chromoly ball and shaft rated at Rockwell C 55 for enhanced durability.
The control arm features FK rod ends at chassis pivots for added strength and precision, along with quick, on-vehicle adjustments for caster and camber alignment. Its replaceable graphite-impregnated sintered metal races and redesigned lubrication channels ensure long-lasting performance and easy maintenance. The sealed dust cover cap protects the joint from dirt and debris, maintaining optimal operation. Designed to correct suspension geometry and accommodate up to 3 inches of front lift, this control arm allows proper wheel alignment and improves handling. Suitable for larger tires, such as 35x12.50 inches, with minor fender modifications. The ICON control arm is 100% serviceable and rebuildable, making it a reliable upgrade for serious off-road enthusiasts seeking maximum articulation and durability.

Features:

• Innovative Delta Joint PRO with 90 degrees of articulation for maximum suspension flexibility

• Constructed from CNC machined 6061 aluminum with a satin anodized finish for durability and corrosion resistance

• Chromoly ball and shaft with Rockwell C 55 hardness for extreme strength and longevity

• Larger ball with 56% more bearing surface improves strength and load distribution

• Improved lubrication sealing and channels for efficient grease distribution and maintenance

• FK rod ends at chassis pivots for enhanced strength and precise handling

• Quick on-vehicle adjustment for caster and camber alignment

• Replaceable sintered metal races with tight tolerances ensure flawless metal-to-metal contact

• Sealed dust cover cap protects joint components from dirt, mud, and debris

• Designed to correct suspension geometry on lifted trucks with up to 3 inches of front lift

Fitment:
Ford F-150 Raptor 2021
Ford F-150 Raptor 2022
Ford F-150 Raptor 2023
Ford F-150 Raptor 2024
Ford F-150 Raptor 2025
