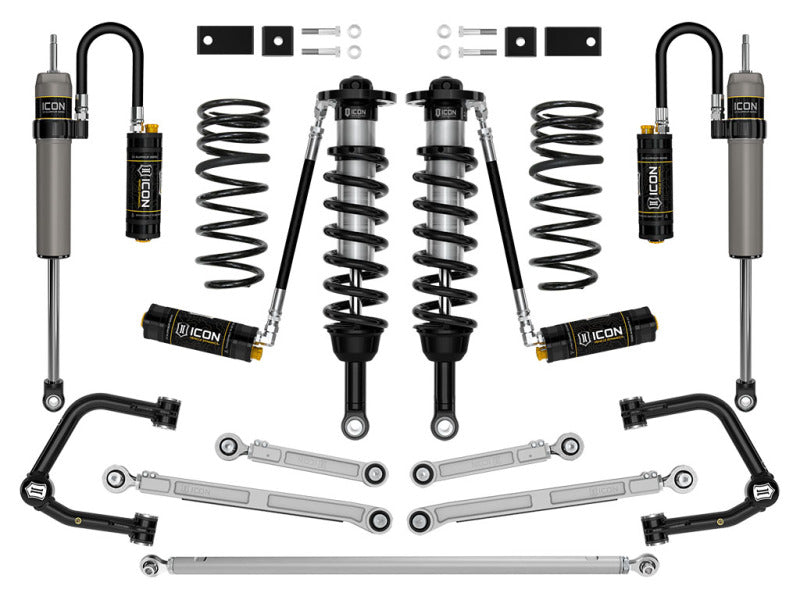

ICON 23-24 Toyota Sequoia 3-4.5in Lift Stage 10 Suspension System Tubular

This Stage 10 system features the 2023-2025 Toyota Sequoia VS 2.5 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 3-4.5” of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Stage 10 includes 2.5 Series CDCV coilovers for 3-4.5” of front lift, greater performance, and 35” tire fitment. UCAs, rear links and track bar provide alignment correction and rear coils with 2.5 Series CDCV rear shocks balance the tuning. TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.5” over stock and 2" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.5" over stock and remain at stock height in the rear. If taller rear ride heights are desired, consider kit part number K53240TS.

• Dual rate rear coil springs improve performance and ride quality while providing 0" or 2" of rear lift, depending on the vehicle's stock suspension package
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Adjustable front ride heights from 3-4.5” of front lift over stock
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for full wheel travel without overstressing OE components
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2023-2025 Toyota Sequoia

Upgrade your 2023-2025 Toyota Sequoia with the ICON Stage 10 suspension system, engineered for optimal performance and off-road capability. Featuring 2.5 Series remote reservoir front coilovers with CDC Valves, this system offers adjustable lift ranging from 3 to 4.5 inches, allowing for larger wheel and tire combinations and enhanced ground clearance. The larger 2.5-inch shock body and increased piston area deliver up to 40% more travel than stock, providing superior ride quality and suspension performance both on and off-road. Remote reservoirs significantly improve shock oil volume and heat dissipation, reducing the risk of overheating and damper fade during demanding conditions. The included CDC Valves are externally adjustable, offering 10 levels of compression damping from soft to hard, enabling precise tuning for various terrains and driving styles. This comprehensive kit also includes UCAs, rear links, and a track bar for alignment correction and optimized rear suspension performance, ensuring balanced handling and stability. The dual-rate rear coil springs improve ride quality and offer either no lift or 2-inch rear lift, depending on your vehicle's stock suspension configuration. All shocks are fully rebuildable and re-tunable, providing long-term reliability and performance customization. Designed specifically for the 2023-2025 Toyota Sequoia, this system maintains full wheel travel without overstressing OE components, thanks to adjustable ride heights, sway bar drop brackets, and tubular rear links. Whether you’re tackling off-road trails or seeking a more aggressive stance, this ICON suspension system enhances your Sequoia’s capability and appearance, ensuring a confident drive in any environment.

Features:

• Dual rate rear coil springs improve ride quality and provide 0 to 2 inches of rear lift depending on stock suspension

• 2.5 Series front coilovers with remote reservoirs for superior damping and heat dissipation

• CDC Valves with 10 externally adjustable compression damping settings for tailored ride control

• On-vehicle adjustable rear track bar for proper axle centering and suspension tuning

• Rear remote reservoir shocks with increased performance and balanced tuning

• Patented Delta Joint Pro UCA with 90 degrees of articulation for enhanced durability and mobility

• Tubular rear upper and lower links improve rear end articulation and allow pinion angle adjustment

• Adjustable front ride height from 3 to 4.5 inches over stock for versatile customization

• Sway bar drop brackets reduce bind and improve handling in turns

• Full wheel travel capability without overstressing OEM components

• All shocks are fully rebuildable and re-tunable for long-term performance

• Vehicle-specific design tailored for 2023-2025 Toyota Sequoia

Fitment:
Toyota Sequoia 1794 Edition 2025
Toyota Sequoia Capstone 2023
Toyota Sequoia Capstone 2024
Toyota Sequoia Capstone 2025
Toyota Sequoia Limited 2023
Toyota Sequoia Limited 2024
Toyota Sequoia Limited 2025
Toyota Sequoia Platinum 2023
Toyota Sequoia Platinum 2024
Toyota Sequoia Platinum 2025
Toyota Sequoia SR5 2023
Toyota Sequoia SR5 2024
Toyota Sequoia SR5 2025
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Sequoia TRD Pro 2025
