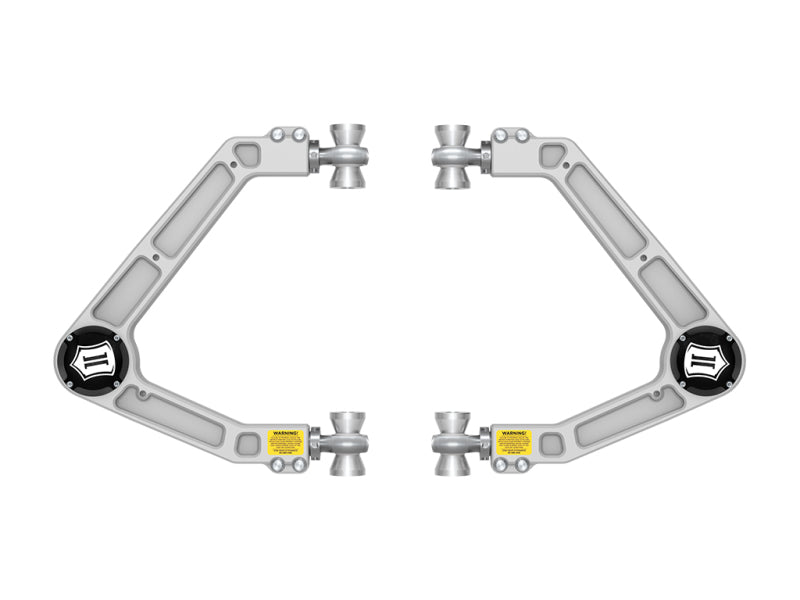

ICON 2023+ GMC Canyon / 2023+ Chevrolet Colorado Billet UCA DJ Pro Kit

ICON suspension components with the all-new Delta Joint PRO represent the state of the art in off-road performance and durability. Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints. The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected and replaced without having to purchase a whole new joint. Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing. But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other. This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel. The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55. The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface. We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal. ICON billet UCAs are made from CNC machined 6061 aluminum and feature PTFE-lined rod ends and ICON’s Delta Joint PRO, a hardcore high-angle ball joint that combines the durability of a ball joint with the performance of a uniball. APPLICATION NOTE #365: Compatible with 0-2.5" front lift over stock on GMC Canyon AT4, Denali, Elevation, and Chevrolet Colorado Trail Boss

• Corrects suspension geometry and allows for proper wheel alignment on trucks with up to 2.5” of lift
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• CNC machined 6061 billet aluminum construction with satin anodized finish
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• Built in O-ring sealed dust cover cap

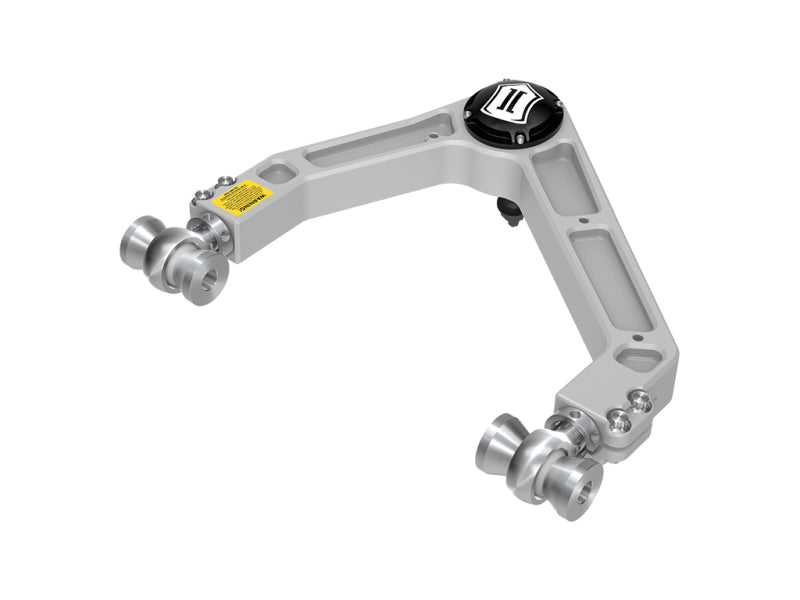

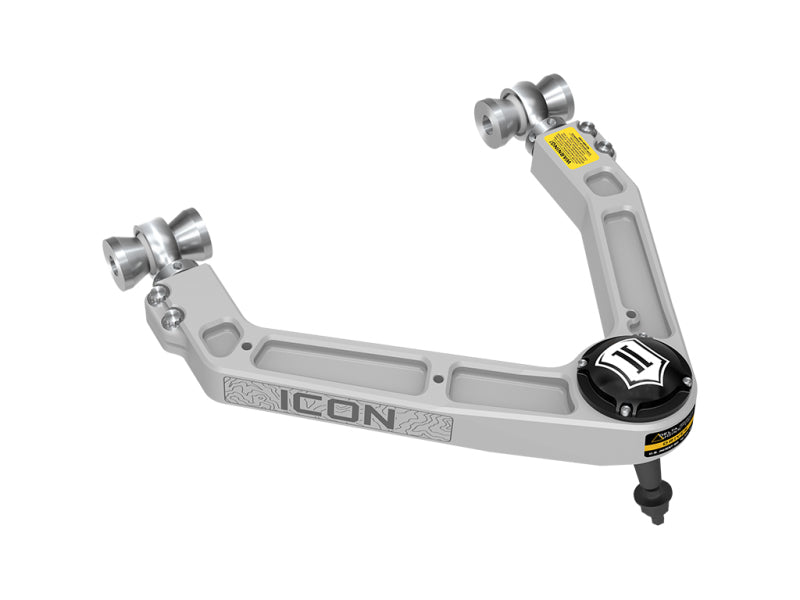

The ICON Delta Joint PRO Billet Upper Control Arm Kit for GMC Canyon and Chevrolet Colorado 2023+ offers advanced off-road suspension performance and durability. Crafted from CNC machined 6061 aluminum with a satin anodized finish, these control arms are designed to correct suspension geometry and enable proper wheel alignment on trucks with up to 2.5 inches of lift. The kit includes FK rod ends at chassis pivots, ensuring strength and precise handling during aggressive driving.
The centerpiece of this upgrade is the ICON Delta Joint PRO, a high-angle ball joint that combines the durability of a factory-style ball joint with the performance of a uniball. This joint features a larger ball with 56% more bearing surface for enhanced load distribution and improved lubrication sealing for longer service life. With a full 90 degrees of articulation—representing a 14% increase over the original Delta Joint—the Delta Joint PRO allows for maximum bind-free suspension movement across the complete range of travel. Its rebuildable and serviceable design means any component can be inspected, replaced, or maintained without replacing the entire joint, simplifying maintenance.
In addition to its strength and performance features, the control arms incorporate a redesigned lubrication system with efficient grease channels that prevent contamination and extend service intervals. The control arms are equipped with a built-in O-ring sealed dust cover cap to protect against dirt and debris. These components are engineered for maximum articulation without binding, ensuring optimal handling and off-road capability. Suitable for 2023 and 2024 models of GMC Canyon and Chevrolet Colorado, this kit is a reliable upgrade for serious off-road enthusiasts seeking improved suspension travel and longevity.

Features:

• Corrects suspension geometry for trucks with up to 2.5 inches of lift

• FK rod ends at chassis pivots for strength and precision

• CNC machined 6061 aluminum construction with satin anodized finish

• Quick, precise on-vehicle adjustment for caster and camber

• Delta Joint PRO provides maximum articulation without binding

• Rebuildable and serviceable Delta Joint PRO for easy maintenance

• Built-in O-ring sealed dust cover cap for protection against dirt and debris

Fitment:
Chevrolet Colorado Trail Boss 2023
Chevrolet Colorado Trail Boss 2024
Chevrolet Colorado ZR2 2023
Chevrolet Colorado ZR2 2024
GMC Canyon AT4 2023
GMC Canyon AT4 2024
GMC Canyon AT4X 2023
GMC Canyon AT4X 2024
GMC Canyon Denali 2023
GMC Canyon Denali 2024
GMC Canyon Elevation 2023
GMC Canyon Elevation 2024
