ICON 2022+ Toyota Tundra 2-3.5in Stage 7 Tubular Suspension System

This Stage 7 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 2-3.5” of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible (up to 40% increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Stage 7 includes remote reservoir coilovers for 2-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs for alignment correction and 2.5 Series remote reservoir rear shocks for balanced shock tuning. TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.

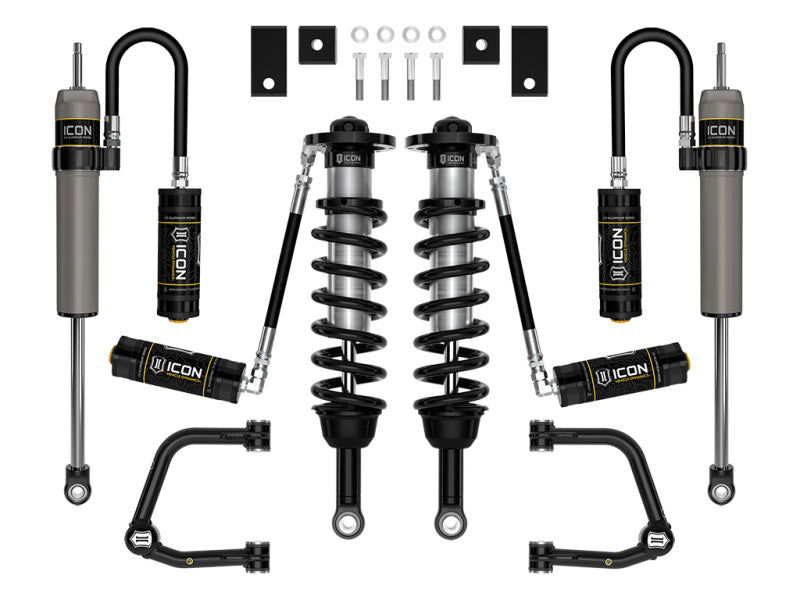

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• Included sway bar drop brackets reduce bind in OE sway bar links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Vehicle specific design for 2022-2025 Toyota Tundra

Upgrade your 2022-2025 Toyota Tundra with the ICON Stage 7 tubular suspension system, designed to enhance off-road performance and overall ride quality. This kit features 2.5 Series remote reservoir front coilovers that provide superior damping, increased shock oil volume, and enhanced heat dissipation, all contributing to better performance under demanding conditions. The adjustable front coilovers allow for up to 2-3.5 inches of lift height over stock when combined with ICON tubular upper control arms, enabling the use of larger, more aggressive wheels and tires for improved off-road capability and aesthetic appeal. The system's vehicle-specific shock length and valving optimize travel and ride comfort, offering up to 40% more wheel travel compared to stock components.

The kit includes 2.5-inch remote reservoir rear shocks that provide balanced tuning and increased performance, supporting a maximum rear lift of 1.5 inches on models with rear coil springs without TRD suspension, or up to 1 inch with TRD packages. Tubular upper control arms feature the patented Delta Joint Pro with 90 degrees of articulation, offering improved durability, strength, and alignment correction for better drivability. Sway bar drop brackets are included to reduce bind in OE sway bar links, further enhancing handling and ride quality. All ICON shocks are fully rebuildable and tunable, allowing for ongoing adjustments to suit specific driving styles or conditions.

Designed specifically for the 2022-2025 Toyota Tundra, this Stage 7 suspension system provides a significant upgrade in off-road capability, wheel travel, and ride stability. Whether you're tackling rugged trails or seeking a more commanding stance on the road, this system ensures maximum performance and durability. Easy to install and built with high-quality materials, the ICON Stage 7 suspension system is the ideal choice for serious off-road enthusiasts looking to push their vehicle’s limits while maintaining comfort and control.

Features:

• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling

• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers

• Adjustable front ride heights from 2-3.5 inches of front lift over stock when used with included tubular upper control arms

• Upper control arms feature the patented Delta Joint Pro with 90 degrees of total articulation for enhanced durability

• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components

• Tubular upper control arms for added strength, durability, and alignment correction for better drivability

• Included sway bar drop brackets reduce bind in OE sway bar links, improving handling

• All ICON shock absorbers are fully rebuildable and re-tunable for ongoing performance adjustments

• Vehicle-specific design tailored for 2022-2025 Toyota Tundra, ensuring perfect fit and function

Fitment:
Toyota Sequoia 1794 Edition 2025
Toyota Sequoia TRD Pro 2023
Toyota Sequoia TRD Pro 2024
Toyota Sequoia TRD Pro 2025
Toyota Tundra 1794 Edition 2022
Toyota Tundra 1794 Edition 2023
Toyota Tundra 1794 Edition 2024
Toyota Tundra 1794 Edition 2025
Toyota Tundra Capstone 2022
Toyota Tundra Capstone 2023
Toyota Tundra Limited 2022
Toyota Tundra Limited 2023
Toyota Tundra Limited 2024
Toyota Tundra Limited 2025
Toyota Tundra Platinum 2022
Toyota Tundra Platinum 2023
Toyota Tundra Platinum 2024
Toyota Tundra Platinum 2025
Toyota Tundra SR 2022
Toyota Tundra SR 2023
Toyota Tundra SR 2024
Toyota Tundra SR 2025
Toyota Tundra SR5 2022
Toyota Tundra SR5 2023
Toyota Tundra SR5 2024
Toyota Tundra SR5 2025
Toyota Tundra TRD Pro 2022
Toyota Tundra TRD Pro 2023
Toyota Tundra TRD Pro 2024
Toyota Tundra TRD Pro 2025
