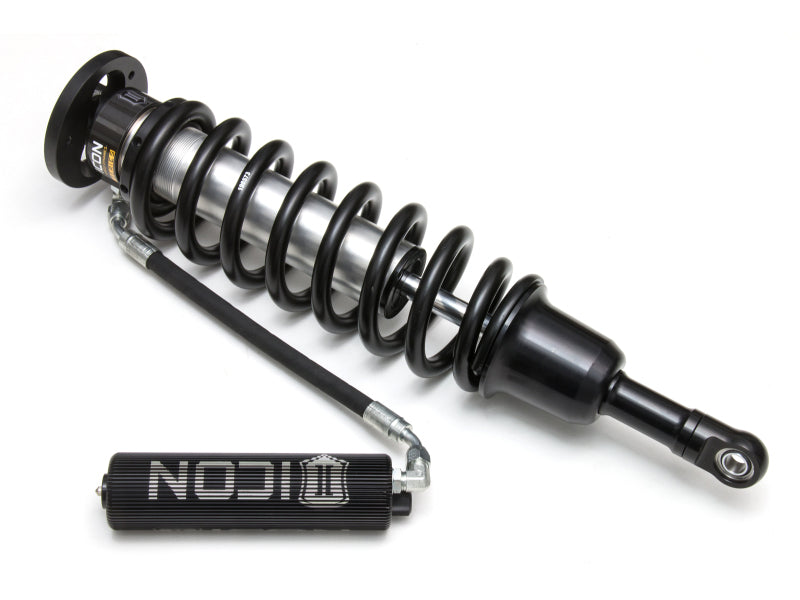

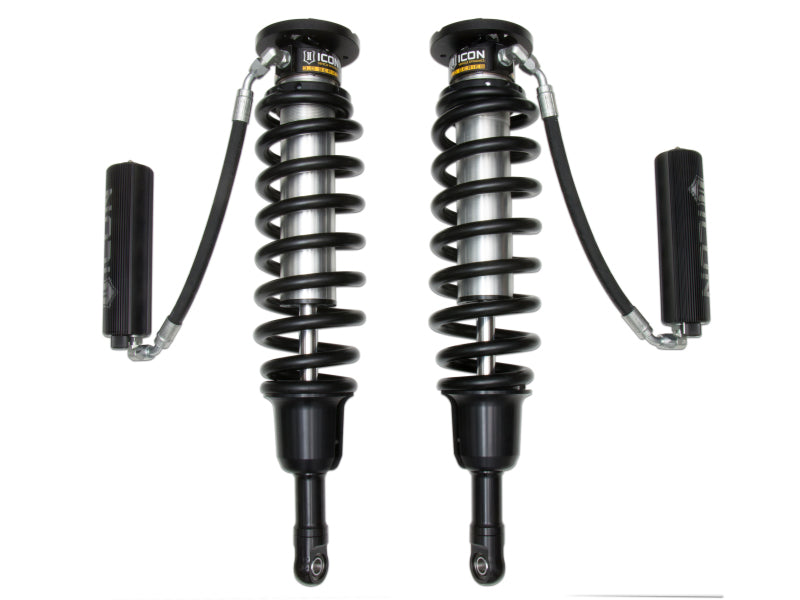

ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit

The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping. The addition of ICON’s CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the “feel” of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance. 2017-2020 FORD RAPTOR FRONT 3.0 VS REMOTE RESERVOIR CDCV COILOVER KIT TECH NOTE: 2019-2020 VEHICLES WITH FACTORY LIVE VALVE SHOCKS WILL NEED AN ICON DAMPER INTERFACE DEVICE (PN: 95199) TO ALLOW THE VEHICLE DRIVE MODES TO OPERATE CORRECTLY WITH THE OE SHOCKS REMOVED.

• Easy-to-adjust CDC Valve (Compression Damping Control) has 10 compression damping settings to suit all types of driving styles across varying terrain and vehicle cargo setups
• 10" finned aluminum reservoirs provide generous oil volume and increased surface area for enhanced cooling properties and consistent damping

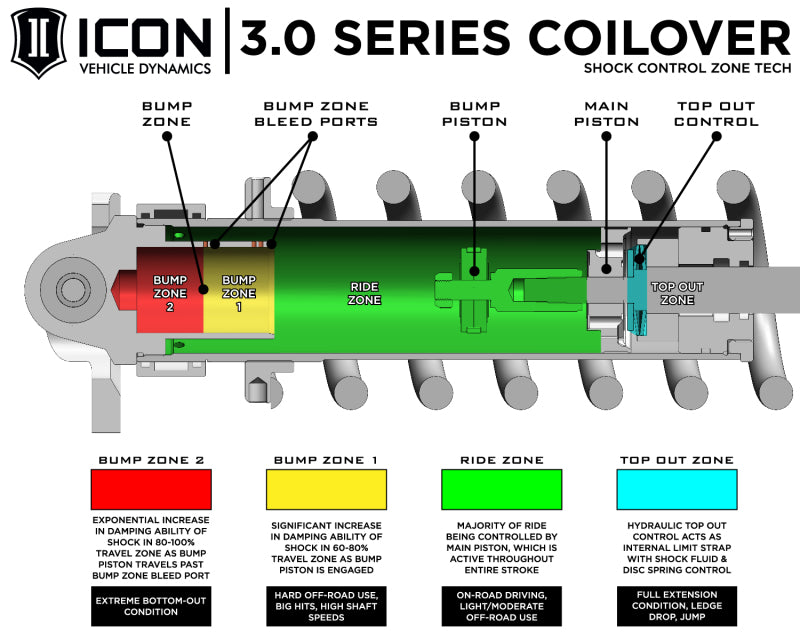

• ICON’s multi-stage hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel
• Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
• “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• 50% increase in damping ability over OE shocks for excellent performance in extreme off-road conditions
• High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
• Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
• Barreled coil spring design maximizes travel and provides more efficient packaging
• Superior low speed control reduces body roll and increases on-road stability
• FK Rod End COM12 spherical bearings ensure maximum strength and durability

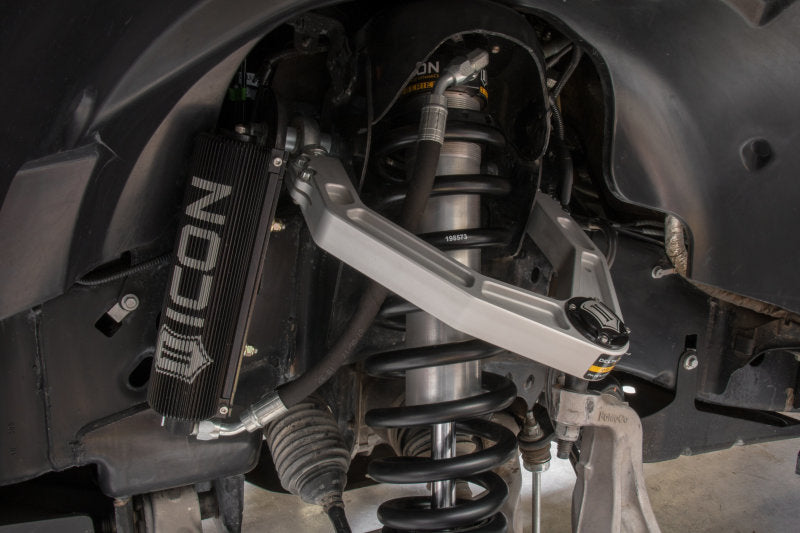

• Bolt-in design makes for an easy install into OEM shock location
• CAD plated shock body with hard anodized piston and top cap
• Adjustable coilovers yield 1-3” of front lift height
• Heavy duty CNC machined 1” shock shafts

Designed specifically for the 2017-2021 Ford F-150 Raptor, the ICON 3.0 Series coilover kit offers exceptional performance both on and off-road. These shocks feature a vehicle-specific valving system that enhances ride quality while providing increased wheel travel for improved handling across a variety of terrains. The shock's high-flow, finned aluminum reservoirs supply ample oil volume for efficient cooling, ensuring consistent damping during intense driving conditions. The innovative design includes a barreled coil spring that maximizes travel capacity and packaging efficiency, making installation straightforward and effective.
The multi-stage hydraulic “Bump Zone” significantly increases bottom-out resistance by exponentially increasing damping during the last 40% of compression travel, which enhances off-road durability. The adjustable CDC Valve provides 10 damping settings, allowing drivers to tailor the shock response to their driving style and terrain, from aggressive off-road trails to smooth highway cruising. The shocks also feature a 50% increase in damping ability over factory units, providing superior control and stability in extreme conditions. Built with high-quality components such as CNC-machined 1-inch shock shafts and hard anodized pistons, these coilovers are engineered for strength and longevity.
Installation is user-friendly with a bolt-in design, and the fully serviceable construction allows for revalving and rebuilds, extending the lifespan of your suspension system. These shocks are tested under rigorous conditions to validate their performance, strength, and durability, ensuring reliable operation over many years. The kit includes everything needed for a seamless upgrade, including heavy-duty spherical bearings and premium coil springs guaranteed against sagging or breakage, backed by ICON’s reputation for quality and innovation. Whether you're tackling challenging off-road trails or seeking improved on-road stability, the ICON 3.0 Series coilovers deliver a perfect blend of comfort, control, and performance for your Ford Raptor.

Features:

• Easy-to-adjust CDC Valve with 10 compression damping settings for customized ride response

• 10-inch finned aluminum reservoirs provide increased oil volume and improved cooling for consistent damping

• Multi-stage hydraulic 'Bump Zone' exponentially increases bottom-out resistance during the last 40% of compression travel

• Vehicle-specific valving and increased wheel travel deliver superior ride quality and off-road performance

• Rigorous 'ICON 1K' testing ensures durability, strength, and optimal tune under demanding conditions

• 50% higher damping ability than stock shocks for enhanced off-road stability

• High-quality ICON-engineered coil springs are guaranteed for life against sagging or breakage

• Fully serviceable design supports revalving, rebuilds, and extended service life

• Barreled coil spring design maximizes travel and packaging efficiency

• Improves low-speed control, reducing body roll and increasing on-road stability

• Heavy-duty CNC-machined 1-inch shock shafts for maximum strength

• Bolt-in installation for easy upgrade without modifications

Fitment:
Ford F-150 Raptor 2017
Ford F-150 Raptor 2018
Ford F-150 Raptor 2019
Ford F-150 Raptor 2020
Ford F-150 Raptor 2021
