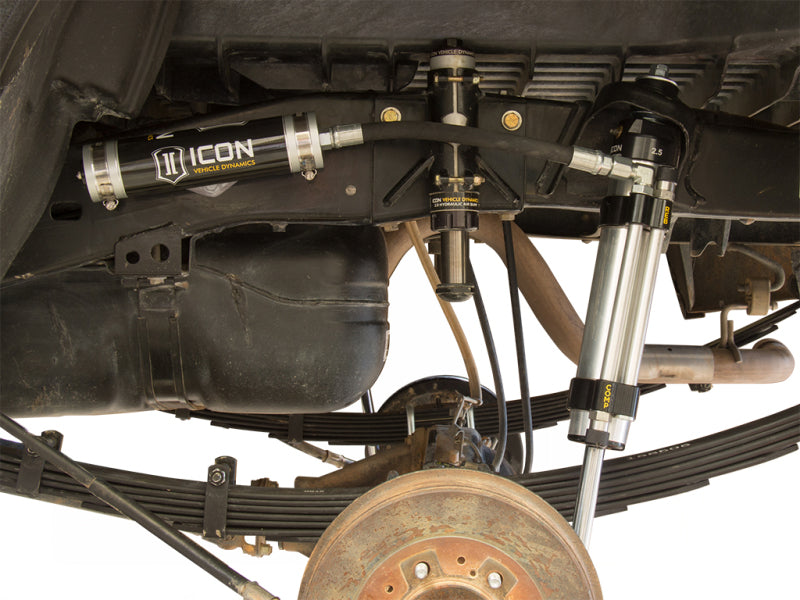

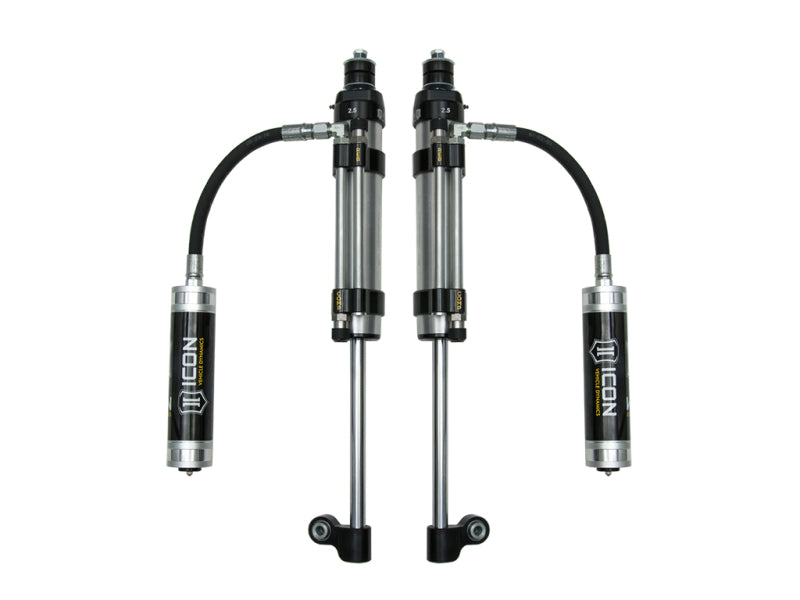

ICON 2005+ Toyota Tacoma RXT Rear 2.5 Omega Series Shocks RR - Pair

ICON Omega Series Bypass shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in length but allow the user to customize the ride characteristics to their liking through adjustment of the bypass valves. Like all ICON shock absorbers, Omega Series shocks are 100% rebuildable and 100% revalveable. ICON’s use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used, creates a significant increase in damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON Bypass Valve is an externally adjustable valve that restricts oil flow through the bypass tube and provides 28 settings of compression and rebound adjustment with no tools required. This RXT rear shock features a side-mount eyelet making it shorter in collapsed length, longer at extension, and still fit in the factory mounting location, allowing for additional wheel travel when paired with ICON Multi-Rate Leaf Springs. ICON Omega Bypass shocks are designed to give your vehicle outstanding performance on and off-road. They are configured specifically for each application and allow the user to customize the ride through adjustment of the bypass valves. APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation

• ICON's Bypass Valve technology allows adjustment of compression and rebound damping with high resolution across the entire adjustment range

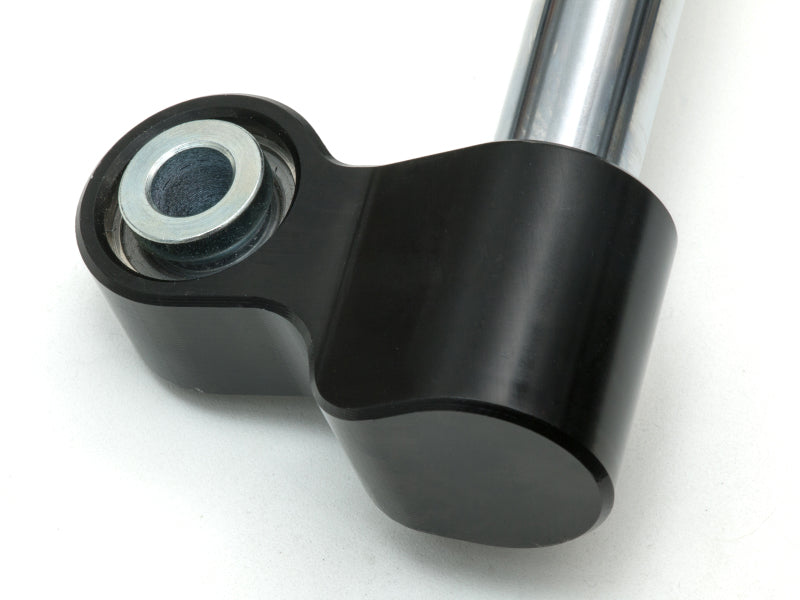

• ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Internal “Bump Zone” increases damping force to provide more control as the shock approaches full compression

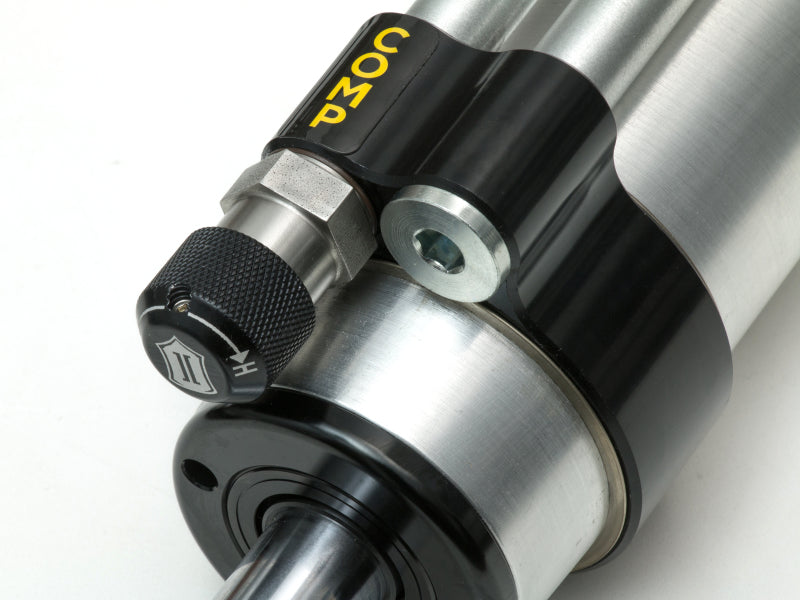

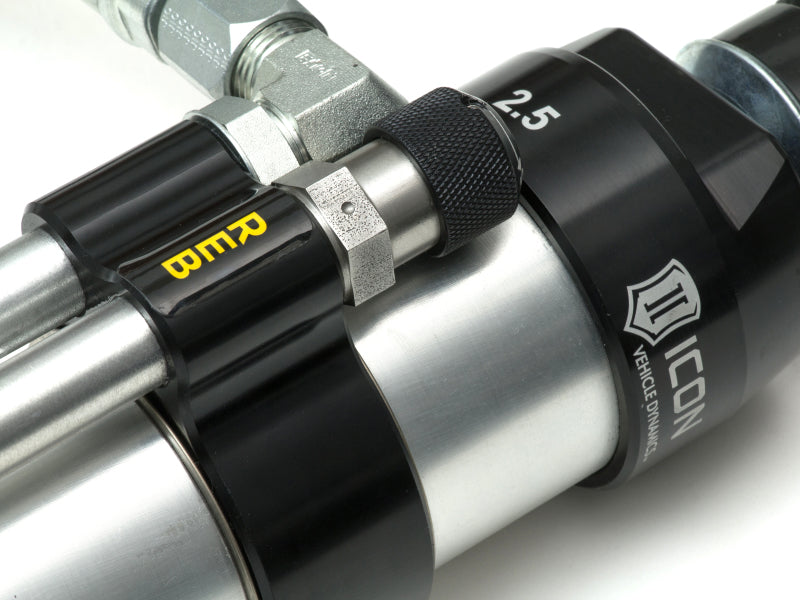

• Hand adjustable bypass valves with 28 detented settings at quarter turn increments for precise suspension tuning
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• PTFE lined spherical bearings and application specific mounting hardware
• 7/8” diameter induction hardened, chrome plated shock shaft
• 6061 aircraft grade aluminum CNC machined components
• Bypass tubes are replaceable in the event of damage
• 100% Revalveable
• 100% Rebuildable

Upgrade your Toyota Tacoma with the ICON Omega Series RXT Rear Shocks, designed for exceptional off-road performance and smooth on-road handling. Crafted with precision, these shocks feature a 6061 aircraft-grade aluminum manifold that enhances damping control through an internal "Bump Zone," providing increased resistance to harsh bottom outs and high-velocity compression. The side-mounted "RXT" rod ends enable a shorter collapsed length and increased wheel travel, making them ideal for rugged terrain when paired with ICON Multi-Rate Leaf Springs. These shocks are fully rebuildable and revalveable, ensuring long-term durability and customizable performance to suit your specific driving style.

The ICON Omega Series shocks incorporate a one-piece digressive piston with vehicle-specific valving for optimal ride quality both on and off-road. The externally adjustable bypass valves offer 28 detented settings in quarter-turn increments, allowing precise tuning of compression and rebound damping without the need for tools. The remote reservoir design enhances heat dissipation, reducing shock fade during extended use, while the impact-extruded aluminum cylinders provide excellent corrosion resistance and consistent performance. Premium 5WT shock oil ensures stable damping across various temperatures, and the PTFE-lined spherical bearings and specially designed mounting hardware guarantee secure installation. Whether you're tackling challenging trails or cruising the highway, these shocks deliver a balanced suspension response tailored to your vehicle's needs.

Designed specifically for 2005-2017 Toyota Tacoma models, the ICON Omega Series RXT shocks are a perfect upgrade for enthusiasts seeking adjustable, high-performance suspension components. The pair includes replaceable bypass tubes for easy maintenance, and their innovative design maximizes wheel travel without compromising the factory mounting points. For optimal results, installation requires ICON Multi-Rate Leaf Springs Part #158505. Experience enhanced control, increased comfort, and superior durability with ICON's advanced suspension technology, engineered to meet the demands of serious off-road adventurers and daily drivers alike.

Features:

• Adjustable bypass valves with 28 detented settings for precise tuning

• Side-mounted RXT rod ends increase shaft travel and compatibility with factory mounting points

• Internal Bump Zone enhances damping force during full compression

• Fully rebuildable and revalveable for long-term customization

• Remote reservoir design improves heat dissipation and reduces shock fade

• Impact extruded aluminum cylinders offer excellent corrosion resistance

• Premium grade 5WT shock oil ensures consistent damping across temperature ranges

• 6061 aircraft-grade aluminum CNC machined components for durability

• Replaceable bypass tubes for easy maintenance

• Designed specifically for 2005-2017 Toyota Tacoma models

Fitment:
Toyota Tacoma Base 2005
Toyota Tacoma Base 2006
Toyota Tacoma Base 2007
Toyota Tacoma Base 2008
Toyota Tacoma Base 2009
Toyota Tacoma Base 2010
Toyota Tacoma Base 2011
Toyota Tacoma Base 2012
Toyota Tacoma Base 2013
Toyota Tacoma Base 2014
Toyota Tacoma Base 2015
Toyota Tacoma Limited 2016
Toyota Tacoma Limited 2017
Toyota Tacoma Limited 2018
Toyota Tacoma Limited 2019
Toyota Tacoma Limited 2020
Toyota Tacoma Limited 2021
Toyota Tacoma Limited 2022
Toyota Tacoma Limited 2023
Toyota Tacoma Pre Runner 2005
Toyota Tacoma Pre Runner 2006
Toyota Tacoma Pre Runner 2007
Toyota Tacoma Pre Runner 2008
Toyota Tacoma Pre Runner 2009
Toyota Tacoma Pre Runner 2010
Toyota Tacoma Pre Runner 2011
Toyota Tacoma Pre Runner 2012
Toyota Tacoma Pre Runner 2013
Toyota Tacoma Pre Runner 2014
Toyota Tacoma Pre Runner 2015
Toyota Tacoma SR 2016
Toyota Tacoma SR 2017
Toyota Tacoma SR 2018
Toyota Tacoma SR 2019
Toyota Tacoma SR 2020
Toyota Tacoma SR 2021
Toyota Tacoma SR 2022
Toyota Tacoma SR 2023
Toyota Tacoma SR5 2016
Toyota Tacoma SR5 2017
Toyota Tacoma SR5 2018
Toyota Tacoma SR5 2019
Toyota Tacoma SR5 2020
Toyota Tacoma SR5 2021
Toyota Tacoma SR5 2022
Toyota Tacoma SR5 2023
Toyota Tacoma Trail 2021
Toyota Tacoma Trail Special Edition 2023
Toyota Tacoma TRD Off-Road 2016
Toyota Tacoma TRD Off-Road 2017
Toyota Tacoma TRD Off-Road 2018
Toyota Tacoma TRD Off-Road 2019
Toyota Tacoma TRD Off-Road 2020
Toyota Tacoma TRD Off-Road 2021
Toyota Tacoma TRD Off-Road 2022
Toyota Tacoma TRD Off-Road 2023
Toyota Tacoma TRD Pro 2015
Toyota Tacoma TRD Pro 2017
Toyota Tacoma TRD Pro 2018
Toyota Tacoma TRD Pro 2019
Toyota Tacoma TRD Pro 2020
Toyota Tacoma TRD Pro 2021
Toyota Tacoma TRD Pro 2022
Toyota Tacoma TRD Pro 2023
Toyota Tacoma TRD Sport 2016
Toyota Tacoma TRD Sport 2017
Toyota Tacoma TRD Sport 2018
Toyota Tacoma TRD Sport 2019
Toyota Tacoma TRD Sport 2020
Toyota Tacoma TRD Sport 2021
Toyota Tacoma TRD Sport 2022
Toyota Tacoma TRD Sport 2023
Toyota Tacoma X-Runner 2005
Toyota Tacoma X-Runner 2006
Toyota Tacoma X-Runner 2007
Toyota Tacoma X-Runner 2008
Toyota Tacoma X-Runner 2009
Toyota Tacoma X-Runner 2010
Toyota Tacoma X-Runner 2011
Toyota Tacoma X-Runner 2012
Toyota Tacoma X-Runner 2013
