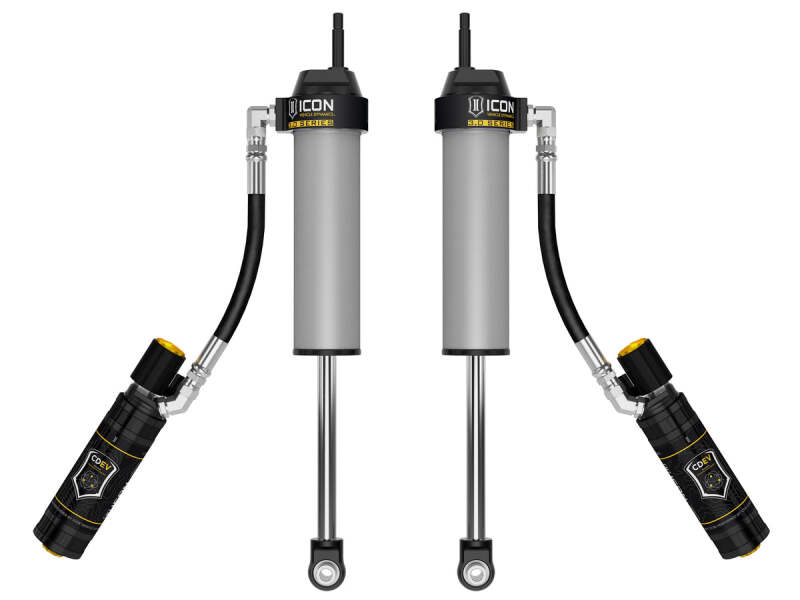

ICON 17-26 Ford F-250/350 SD 4WD 0-3in 3.0 Series VS RR CDEV Front Coilover Pair

ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. ICON 2.5 Aluminum Series shocks are designed to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #484: Can be installed as secondary shocks in OE location with ICON 2.5-3" lift coilover conversions with CDEV, part number 61720E, 61723E, or 61800E. Part numbers 611003 and 191207 will also be required.

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Compatible with 0-3" of front lift over stock
• Fully rebuildable and revalveable

Enhance your Ford F-250 or F-350 Super Duty 4WD with the ICON Vehicle Specific 3.0 Series shocks, engineered for superior off-road performance and smooth street driving. These coilover shocks are specifically tuned for your vehicle, offering increased stability and control through a larger piston surface area, which provides 50% more surface than the 2.5 Series. This results in improved handling at both high and low speeds, especially on challenging terrain. The remote reservoir design facilitates better heat dissipation, reducing shock fade during prolonged use and maintaining consistent ride quality. Crafted from 6061 aircraft-grade aluminum with CNC machining, the shocks combine durability with a lightweight profile, ensuring long-lasting performance.

These shocks feature a nitrogen-charged monotube design with a one-piece linear compression and digressive rebound piston, delivering precise damping tailored to your vehicle. The use of premium 5WT shock oil ensures consistent damping across a wide temperature range, while the Cerakoted steel cylinders offer excellent corrosion resistance. The 3.0-inch body diameter increases oil volume and piston area, further enhancing damping performance. Powered by ICON's innovative CDE Valve technology, the shocks allow in-vehicle electronic adjustment of damping settings through the ICON Intelligent Control and mobile app. Using data from onboard sensors, the system predicts terrain changes and adjusts damping in real-time, ensuring optimal ride quality and vehicle control.

This pair of shocks is compatible with 0-3 inches of front lift and can be integrated into various lift configurations with the appropriate components. Fully rebuildable and revalveable, these shocks offer long-term performance customization. Whether off-road adventures or daily driving, the ICON 3.0 Series shocks provide the durability, adjustability, and performance that your Ford Super Duty demands.

Features:

• ICON's CDE Valve technology enables electronic adjustment of damping force and active tuning via ICON Intelligent Control

• Vehicle-specific tuning ensures optimal damping and handling on and off-road

• One-piece linear compression and digressive rebound piston design for precise control

• Premium-grade 5WT shock oil maintains consistent damping across temperature variations

• Remote reservoir improves heat dissipation, reducing shock fade during extended use

• Cerakoted steel cylinders provide excellent corrosion resistance and durable finish

• Compatible with 0-3 inches of front lift for versatile installation options

• 6061 aircraft-grade aluminum CNC machined components for strength and lightweight performance

• Nitrogen-charged monotube construction enhances responsiveness and ride quality

• Fully rebuildable and revalveable for long-term customization and maintenance
