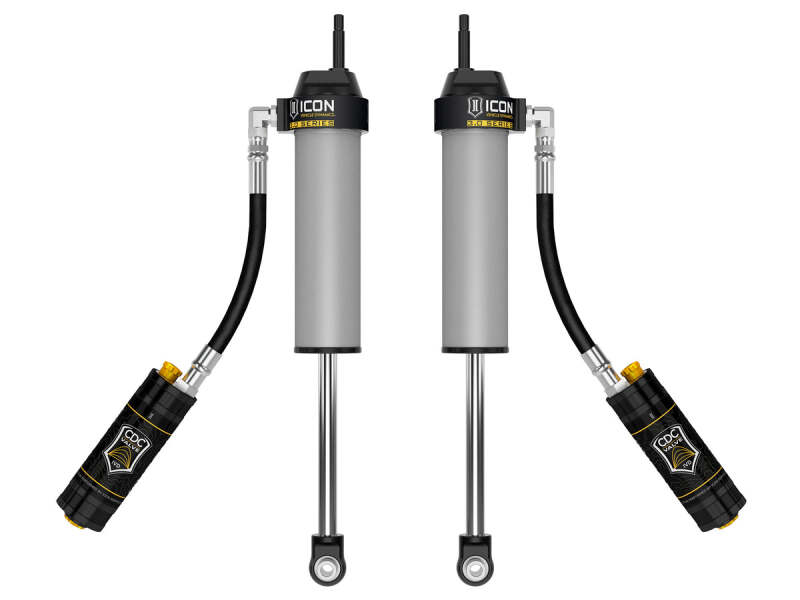

ICON 05-26 Ford F-250/350 SD 4WD 0-3in 3.0 Series VS RR CDCV Front Coilover Pair

ICON Vehicle Specific (V.S.) 3.0 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. 3.0 Series shocks boast 50% more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series shocks offer improved heat dissipation and resistance to shock fade under hard use. Like all ICON shock absorbers, V.S. 3.0 Series shocks are 100% rebuildable and 100% revalveable. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks, or mobbing across the desert at full throttle. ICON 3.0 Series shocks are designed to give you outstanding performance off-road and a smooth ride on the street. With a vehicle-specific design, these shocks are configured specifically for each application in both length and damping tune. APPLICATION NOTE #482: Also requires Reservoir Doubler Kit part number 611003 if installing as secondary shock along with ICON front coilover conversion

• One-piece linear compression/digressive rebound piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Cerakoted steel cylinders offer excellent corrosion resistance and consistent finish
• Vehicle specific design and tuning for superior shock damping and control
• 3.0” Body diameter for increased oil volume and larger piston area
• 7/8” diameter induction hardened, chrome plated shock shaft
• Nitrogen charged monotube design with remote reservoir
• 6061 aircraft grade aluminum CNC machined components
• Compatible with 0-3" of front lift over stock
• Fully rebuildable and revalveable

The ICON Vehicle Specific 3.0 Series shocks are engineered for optimal off-road performance and smooth on-road handling for Ford F-250 and F-350 Super Duty 4WD trucks. These shocks feature a vehicle-specific design, ensuring precise fitment and tuning tailored to each application, which results in improved stability, control, and ride quality. The 3.0 Series boasts 50% more piston surface area than the previous 2.5 Series, providing enhanced damping and greater control at the vehicle's extremities during off-road adventures while maintaining comfort during daily driving. With increased internal oil volume and larger external surface area, these shocks offer superior heat dissipation and resistance to shock fade during sustained or aggressive use. The remote reservoir design further improves heat management, allowing the shock to maintain consistent damping performance over prolonged periods. Crafted with CNC-machined 6061 aircraft-grade aluminum components and cerakoted steel cylinders for corrosion resistance, the shocks are built to endure harsh conditions. The monotube construction is nitrogen charged, delivering a consistent and responsive ride. An innovative feature of these shocks is ICON's exclusive Compression Damping Control Valves, which offer 10 levels of high-resolution compression adjustability via a simple turn of a knob, enabling you to dial in your suspension for street driving, crawling, or high-speed desert runs. The shocks are fully rebuildable and revalveable, ensuring long-term performance and custom tuning capabilities. Compatibility with front lift kits of up to 3 inches makes these shocks suitable for a variety of vehicle modifications, while the inclusion of premium-grade 5WT shock oil ensures consistent damping across temperature ranges. For installations involving secondary shocks alongside ICON front coilover conversions, the Reservoir Doubler Kit (part number 611003) is recommended. Overall, the ICON 3.0 Series shocks provide a versatile and durable suspension upgrade designed to excel in demanding off-road environments while maintaining a smooth and controlled on-road experience.

Features:

• Vehicle-specific design and tuning for tailored performance on Ford F-250/350 SD 4WD trucks

• 50% larger piston surface area compared to 2.5 Series shocks for enhanced stability and control

• Exclusive ICON CDC Valve technology with 10 levels of high-resolution compression adjustment

• Remote reservoir design improves heat dissipation and reduces shock fade during extended use

• Premium grade 5WT shock oil ensures consistent damping across a wide temperature range

• CNC-machined 6061 aircraft-grade aluminum components for durability and precision

• Cerakoted steel cylinders offer excellent corrosion resistance

• Nitrogen charged monotube construction for consistent performance

• Compatible with up to 3 inches of front lift for versatile vehicle modifications

• Fully rebuildable and revalveable for long-term customization and maintenance
