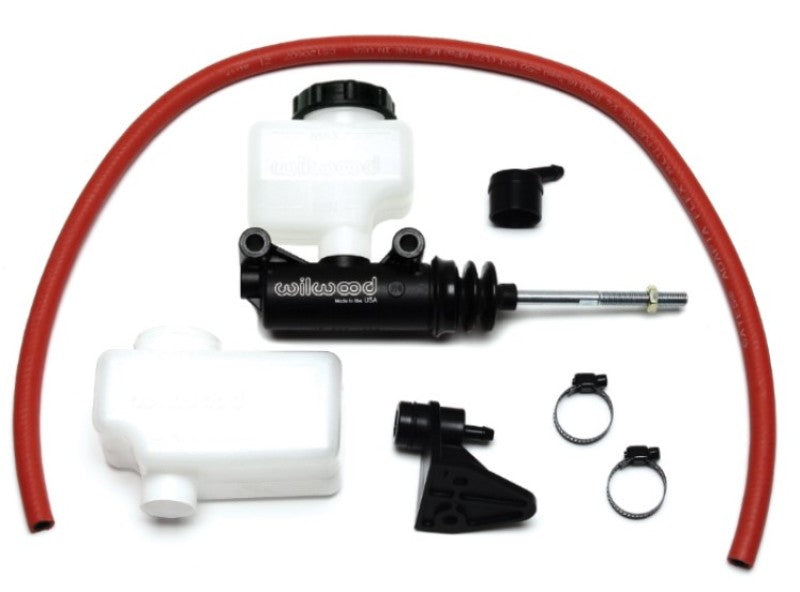

Wilwood Short Remote Side Mount M/C Kit 7/8in Bore 3/8in-24 Banjo Outlet

This new version of Wilwood's Compact Combination (Side Mount) Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting boss and the fluid outlet. The new body design incorporates integral side mounting lugs with a 3.00” center to distance and no traditional mounting flange, which further enhances its ability to mount in tight spaces. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

The Wilwood Part Number wil260-13624 is a high-performance compact master cylinder designed for limited space applications in automotive systems. Featuring a 7/8-inch bore, this cylinder provides reliable hydraulic output with a full 1.12-inch piston stroke, ensuring effective brake or clutch operation. Its black E-coated aluminum body offers corrosion resistance and durability, making it suitable for long-term use in demanding environments. The design incorporates integral side mounting lugs with a 3.00-inch center-to-center distance, eliminating the need for a traditional mounting flange, which allows for flexible installation in tight spaces. The ultra-short body length of just 3.37 inches provides an additional 2.16 inches of clearance between the mounting boss and the fluid outlet, facilitating easier integration into constrained engine bays or chassis sections.

Features:

• Compact design: Ultra short 3.37-inch body height for tight space installation

• Bore size: 7/8 inch for optimal hydraulic performance

• Fluid outlet: 3/8-24 banjo fitting located at the top radius of the cylinder bore to reduce trapped air

• Mounting: Integral side lugs with 3.00-inch center-to-center spacing for versatile mounting options

• Piston stroke: 1.12 inches, meeting or exceeding full-size cylinder capacity

• Fluid inlet: Standard reservoir mounting with 11/16-20 internal threads for customizable reservoir setups

• Corrosion resistance: Black E-coated aluminum body ensures long-lasting durability and resistance to environmental elements
