Wilwood Narrow Superlite 4R Rear P-Brk Kit 14.00in Drill Red Big Ford 2.36in Off Bronco 5 x 5.50
$2,409.74
These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 65-77 rear axles with Big Ford flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Each includes a high efficiency drum style parking brake assembly. FNSL4R four piston calipers, 13” or 14” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs allow builders to personalize the style and performance for every application.
Upgrade the rear braking performance of your 1965–1977 Ford Bronco with the Wilwood Forged Narrow Superlite 4R Rear Parking Brake Kit, part number 140-13333-DR. Designed for rear axles with a Big Ford flange and bearing, this complete big brake solution is engineered to complement front brake upgrades while providing balanced, confident stopping power for classic Bronco applications originally equipped with 11-inch drum brakes.
The kit features Wilwood FNSL4R four-piston calipers, 14-inch two-piece drilled rotors, and high-performance BP-10 compound brake pads. This combination delivers responsive pedal feel, effective heat management, and consistent braking performance during street driving and demanding use. The red caliper finish adds a distinctive appearance behind the wheels while maintaining the proven performance of Wilwood’s forged caliper design.
A high-efficiency drum-style parking brake assembly is integrated into the rotor hat for a clean installation and strong static holding power. The internally concealed shoe system keeps the parking brake hardware neatly hidden while preserving dependable engagement. The kit is configured for a 5 x 5.5-inch wheel bolt pattern and a 2.36-inch offset, making it a purpose-built solution for compatible Bronco rear axle configurations.

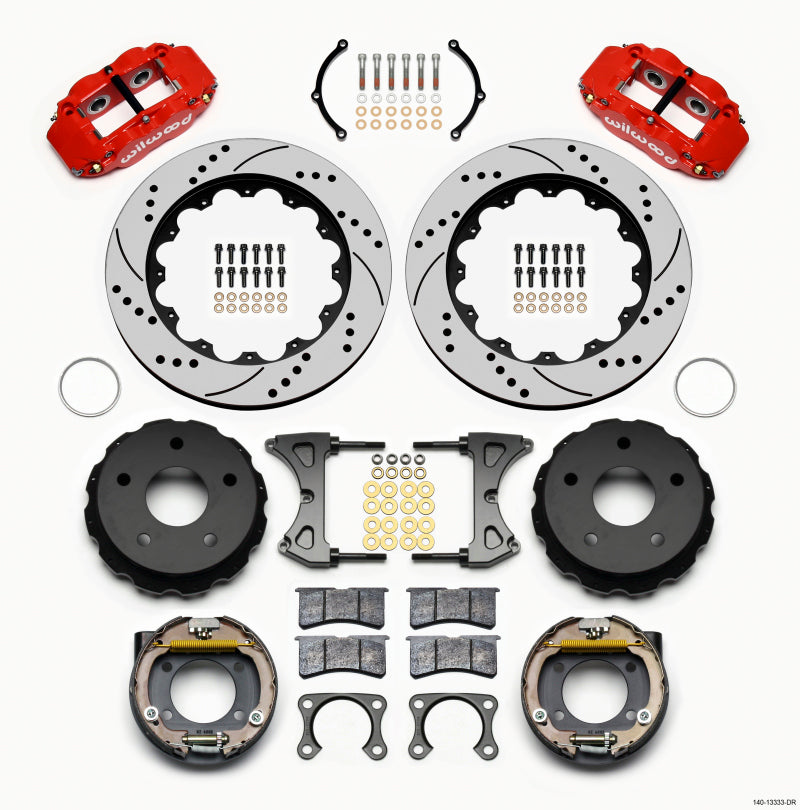

Wilwood part number 140-13333-DR provides the braking hardware needed for a refined rear disc conversion, including calipers, rotors, pads, and parking brake components. Verify axle flange, bearing, wheel clearance, and application compatibility before installation. Professional installation and proper brake system bleeding are recommended to ensure safe, reliable operation.
Features:
- Application: Designed for 1965–1977 Ford Bronco rear axles with Big Ford flange and bearing
- Calipers: Forged Wilwood Narrow Superlite 4R four-piston calipers
- Rotors: 14-inch two-piece drilled rotors for improved heat control and braking consistency
- Brake Pads: High-performance BP-10 compound pads for balanced street and performance braking
- Parking Brake: Integrated drum-style parking brake with internally concealed shoes
- Finish: Red calipers for a distinctive, performance-oriented appearance
- Wheel Pattern: 5 x 5.5-inch bolt pattern
- Part Number: Wilwood 140-13333-DR
