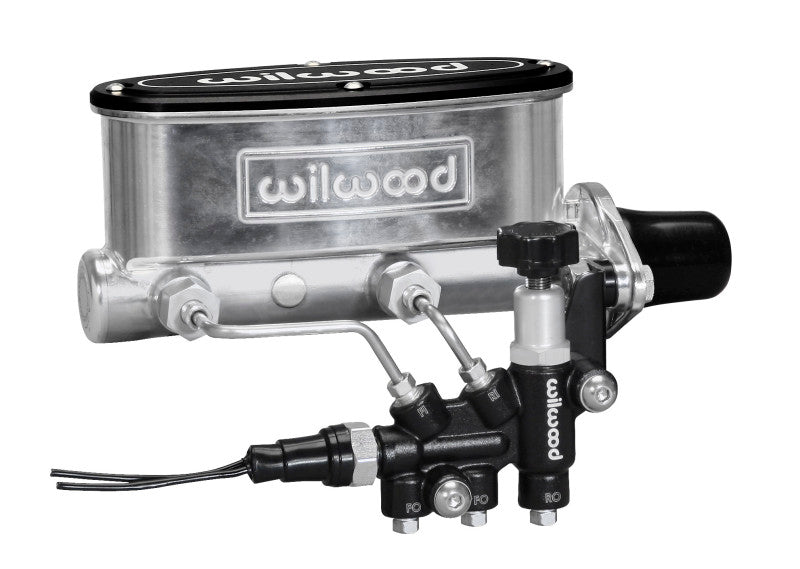

Wilwood HV Tandem M/C Kit w L/H Bracket & Prop Valve - 1 1/8in Bore Ball Burnished

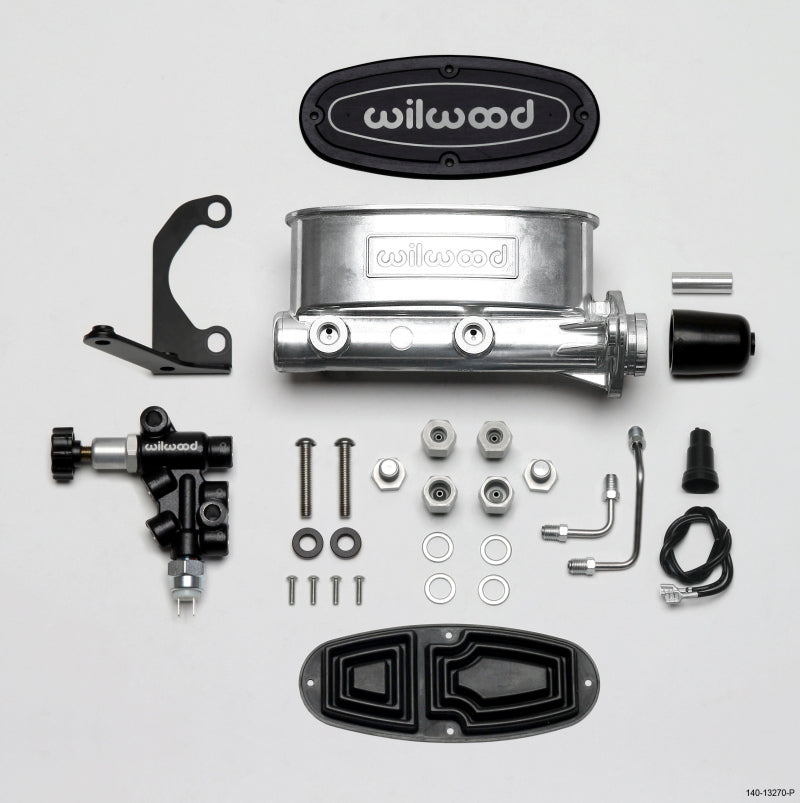

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in four bores sizes, 7/8”, 15/16", 1.00” or 1-1/8”, and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled plated steel tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

The Wilwood HV Tandem Master Cylinder Kit (Part Number: wil261-13270-P) offers a high-performance braking solution designed for a variety of automotive applications. This kit includes a premium aluminum tandem chamber master cylinder, a combination proportioning valve, mounting bracket, stainless steel fluid tubes, and mounting hardware, providing a comprehensive setup for reliable brake pressure actuation and fluid control. The slotted flange mounting ensures straightforward installation on many OE mounts, including Chrysler, Corvette, GM, and Ford Mustang bolt patterns, making it compatible with both manual and power brake systems. The master cylinder features a 1 1/8 inch bore size, which delivers optimal brake force and pedal feel across diverse vehicle configurations. The finish options include standard, ball burnished, or black E-coat, with the ball burnished finish offering enhanced durability and a sleek appearance.
The combination proportioning valve simplifies wiring and brake proportioning adjustments, maintaining full isolation between front and rear circuits. Designed specifically to complement the tandem master cylinder, the valve is black E-coated for durability and a performance-ready look. The stainless steel fluid tubes are precisely bent and equipped with preinstalled plated steel nuts, ensuring a simple bolt-on installation between the valve and master cylinder. Fasteners are stainless steel button head, providing rust-free performance and ease of assembly.
This kit is engineered for durability and ease of installation, allowing you to connect fluid lines, bleed the system, and be ready for road use in minimal time. Whether upgrading an existing brake system or building a custom setup, the Wilwood HV Tandem Master Cylinder Kit offers reliable performance and long-lasting quality for automotive enthusiasts and professionals alike.

Features:

• Aluminum tandem chamber master cylinder with 1 1/8 inch bore for optimal brake force

• Combination proportioning valve for streamlined wiring and brake adjustments

• Compatible with OE mounts including Chrysler, Corvette, GM, and Ford Mustang bolt patterns

• Slotted flange mounting for easy bolt-on installation

• Finish options include standard, ball burnished, or black E-coat for durability and appearance

• Stainless steel fluid tubes with preinstalled plated nuts for corrosion resistance

• Stainless steel button head fasteners for rust-free, durable assembly

• Designed for both manual and power brake system applications

• Complete kit with mounting hardware for quick installation
