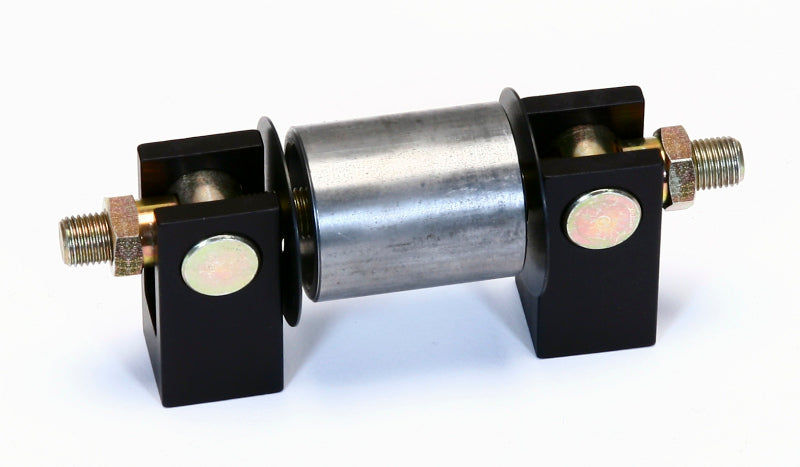

Wilwood Balance Bar Assembly W/Tube

This balance bar kit includes a steel sleeve to use when fabricating custom steel arm pedals. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable or adjustment knob for quick on-track adjustments

The Wilwood 340-1757 Balance Bar Assembly with Steel Sleeve is designed for fabricating custom steel arm pedal systems in high-performance automotive applications. This assembly provides a reliable connection between the pedal structure and dual master cylinders while supporting precise brake bias adjustment. The included steel sleeve simplifies custom pedal fabrication and helps create a durable, properly supported installation.
The balance bar features a positive detent stop at every full turn, helping maintain the selected adjustment position and providing driver awareness during setup or operation. Its pin-and-clevis pushrod attachment system allows a high degree of angular misalignment, promoting bind-free movement throughout the full range of travel. This design supports smooth, consistent operation when the balance bar and pedal assembly are not perfectly aligned.
For fixed adjustment applications, the bar can be secured with the included jam nut. It is also compatible with an optional remote cable or adjustment knob, allowing quick brake bias changes during track use without requiring direct access to the pedal assembly. The Wilwood 340-1757 balance bar assembly is a practical choice for custom racing brake systems, competition vehicles, and performance builds where dependable adjustment and flexible installation are essential.

Features:

• Steel sleeve included for fabricating custom steel arm pedals

• Positive detent stop at every full turn helps maintain adjustment position

• Pin-and-clevis pushrod attachment system supports high misalignment angles

• Designed for bind-free operation throughout the full range of travel

• Includes jam nut for locking the balance bar in position

• Compatible with an optional remote cable or adjustment knob for quick track adjustments
