Wilwood AERO4 Rear Kit 14.00in Drilled Red 97-04 Corvette C5/Z06 05-13 C6

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Upgrade rear braking performance with the Wilwood AERO4 Big Brake Rear Axle Kit, part number 140-11119-DR. Designed for select late-model high-performance vehicles, this system replaces the factory rear disc brakes while retaining the original-equipment parking brake assembly. It is an effective complement to a front big brake upgrade and provides the performance, durability, and visual appeal expected for customized street and performance applications.

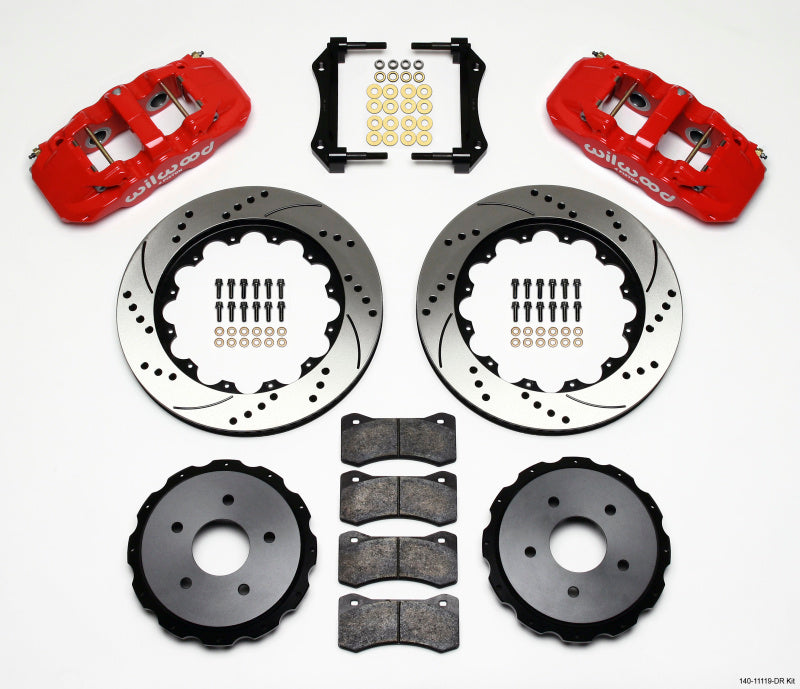

The kit combines high-capacity Wilwood W4AR four-piston calipers, BP-10 compound brake pads, and oversized 14-inch drilled rotors. These components are engineered to work with the factory master cylinder output, anti-lock braking system function, and vehicle-specific brake-bias requirements. The result is responsive braking performance and consistent stopping capability without requiring changes to the vehicle’s original hydraulic balance or ABS operation.
Feature: W4AR calipers provide high-capacity four-piston braking performance with a distinctive red finish. Feature: BP-10 compound brake pads deliver a balanced combination of street performance, control, and durability. Feature: Oversized 14-inch drilled rotors help improve heat management and braking consistency. Feature: Retains the OE parking brake assembly for convenient factory-style parking brake operation. Feature: Designed to complement front big brake systems, larger wheels and tires, upgraded suspension components, and other performance modifications.
This Wilwood rear brake kit fits select Cadillac XLR applications from 2004 through 2009 and is also identified for 1997-2004 Chevrolet Corvette C5/Z06 and 2005-2013 Corvette C6 applications. Verify the vehicle configuration, wheel clearance, rotor and caliper compatibility, and installation requirements before ordering. The Wilwood AERO4 140-11119-DR delivers a complete rear braking upgrade for drivers seeking improved performance and a high-tech appearance while maintaining compatibility with key factory braking functions.

Features:

• W4AR four-piston rear calipers with a red finish

• BP-10 compound brake pads for balanced street and performance braking

• 14-inch drilled rotors for improved heat management and consistent braking

• Retains the original-equipment parking brake assembly

• Matched to factory master cylinder output and ABS function

• Supports vehicle-specific brake-bias requirements

• Complements front big brake upgrades and performance suspension modifications

• Fits select 2004-2009 Cadillac XLR applications

• Also identified for 1997-2004 Chevrolet Corvette C5/Z06 and 2005-2013 Corvette C6 applications

Fitment:
Cadillac XLR Base 2004
Cadillac XLR Base 2005
Cadillac XLR Base 2006
Cadillac XLR Base 2007
Cadillac XLR Base 2008
Cadillac XLR Platinum 2008
Cadillac XLR Platinum 2009
Cadillac XLR V 2006
Cadillac XLR V 2007
Cadillac XLR V 2008
Cadillac XLR V 2009
Chevrolet Corvette 427 2013
Chevrolet Corvette 50th Anniversary Edition 2003
Chevrolet Corvette 50th Anniversary Edition Pace Car 2003
Chevrolet Corvette Base 1997
Chevrolet Corvette Base 1998
Chevrolet Corvette Base 1999
Chevrolet Corvette Base 2000
Chevrolet Corvette Base 2001
Chevrolet Corvette Base 2002
Chevrolet Corvette Base 2003
Chevrolet Corvette Base 2004
Chevrolet Corvette Base 2005
Chevrolet Corvette Base 2006
Chevrolet Corvette Base 2007
Chevrolet Corvette Base 2008
Chevrolet Corvette Base 2009
Chevrolet Corvette Base 2010
Chevrolet Corvette Base 2011
Chevrolet Corvette Base 2012
Chevrolet Corvette Base 2013
Chevrolet Corvette Grand Sport 2010
Chevrolet Corvette Grand Sport 2011
Chevrolet Corvette Grand Sport 2012
Chevrolet Corvette Grand Sport 2013
Chevrolet Corvette Indianapolis 500 Pace Car 1998
Chevrolet Corvette Z06 2001
Chevrolet Corvette Z06 2002
Chevrolet Corvette Z06 2003
Chevrolet Corvette Z06 2004
Chevrolet Corvette Z06 2006
Chevrolet Corvette Z06 2007
Chevrolet Corvette Z06 2008
Chevrolet Corvette Z06 2009
Chevrolet Corvette Z06 2010
Chevrolet Corvette Z06 2011
Chevrolet Corvette Z06 2012
Chevrolet Corvette Z06 2013
Chevrolet Corvette Z06 Carbon 2011
Chevrolet Corvette ZR1 2009
Chevrolet Corvette ZR1 2010
Chevrolet Corvette ZR1 2011
Chevrolet Corvette ZR1 2012
Chevrolet Corvette ZR1 2013
