UMI Performance 98-02 GM F-Body Automatic / Torque Arm Relocation Kit

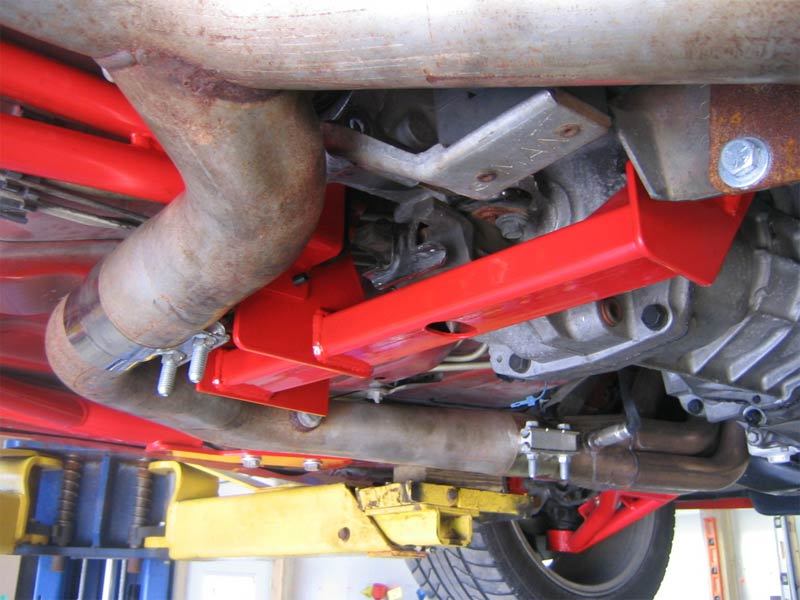

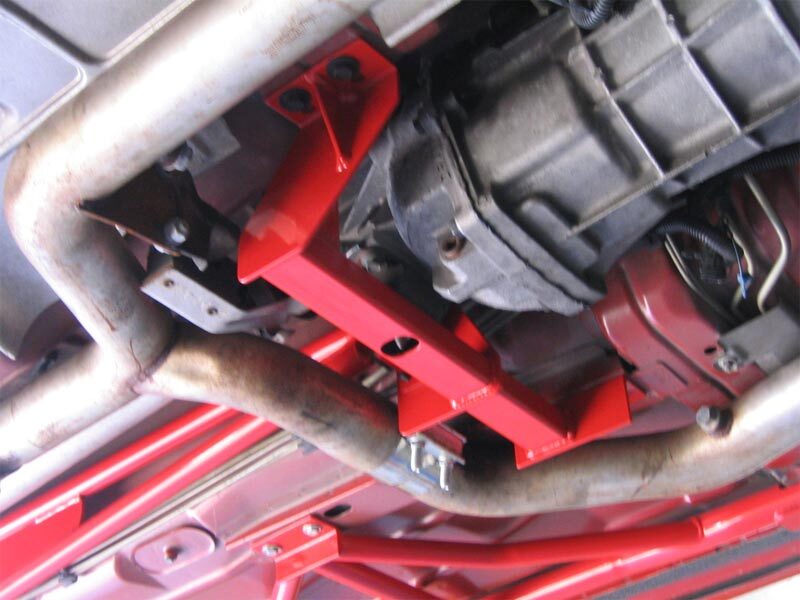

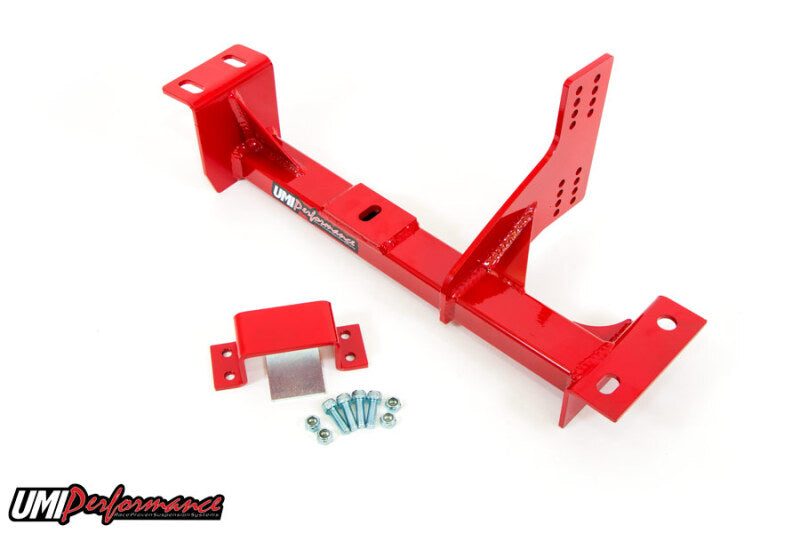

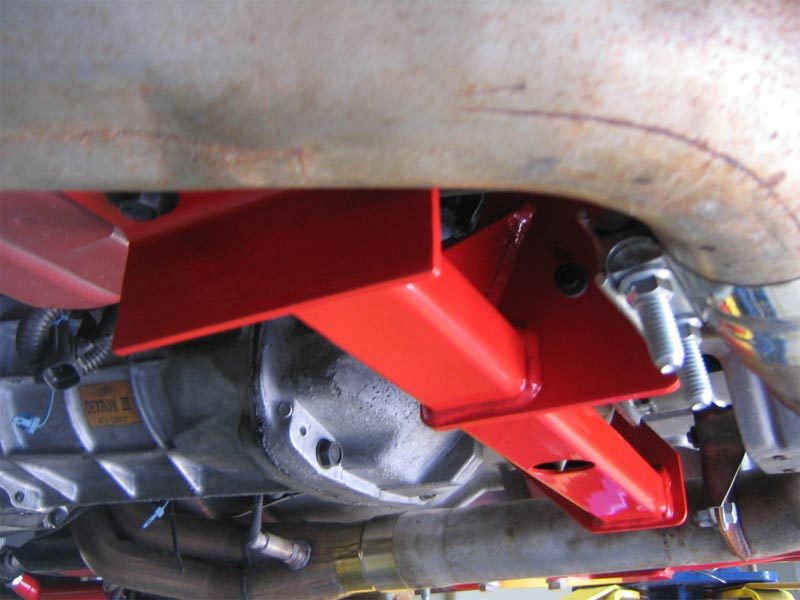

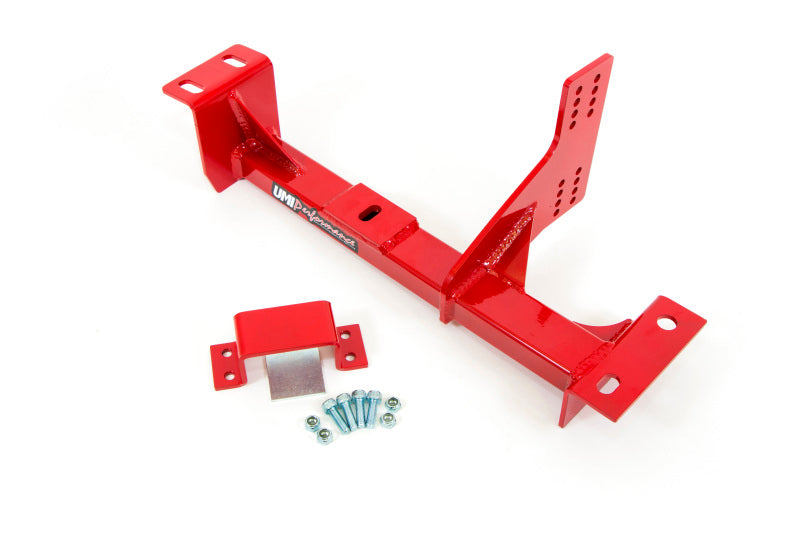

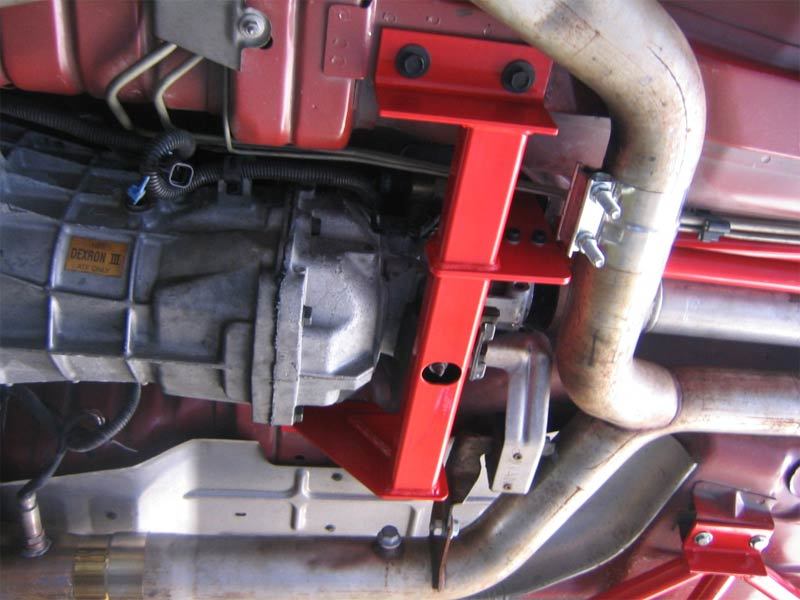

The torque arm relocation kit from UMI Performance is designed to remove the front mounting point of the torque arm off the transmission and protect the tail shaft from damage. General Motors tail shaft mounted design works great for a stock driven vehicle however it is not designed to take abuse and hard launches. This set-up replaces your transmission cross member with a new stronger set-up with a built in torque arm mount. Each relocation kit is designed to fit a specific transmission and will work with virtually any stock style aftermarket torque arm as well as the factory torque arm. This unit is built using rectangular mild steel tubing, 0.188a*? mild steel mounting plates and includes all appropriate hardware needed for the installation. The torque arm mount is machined from 0.250a*? thick mild steel and features a new clam shell for appropriately attaching the torque arm to the new cross member. Please use the FAQa**s below for additional information. Q: What does this kit do? A: Our transmission cross member is supplied with a built in torque arm mount removing the torque arm from the transmission tail shaft and protecting it from failure. Q: Does this new relocation kit reduce ground clearance? A: No, our cross member is designed to tuck tight against the vehicle chassis and will not effect vehicle ground clearance. Q: Which brand torque arms will this work with? A: This set-up will work with virtually any torque arm on the market as long as it bolts into the stock location. It will also work excellent with the stock torque arm. Q: Does this add additional weight to my vehicle? A: No, this cross member in most cases will save weight over the stock unit while being structurally stronger.

Fitment:
Chevrolet Camaro Base 1998
Chevrolet Camaro Base 1999
Chevrolet Camaro Base 2000
Chevrolet Camaro Base 2001
Chevrolet Camaro Base 2002
Chevrolet Camaro Z28 1998
Chevrolet Camaro Z28 1999
Chevrolet Camaro Z28 2000
Chevrolet Camaro Z28 2001
Chevrolet Camaro Z28 2002
Chevrolet Camaro Z28 SS 1998
Chevrolet Camaro Z28 SS 1999
Chevrolet Camaro Z28 SS 2000
Chevrolet Camaro Z28 SS 2001
Chevrolet Camaro Z28 SS 2002
Pontiac Firebird Base 1998
Pontiac Firebird Base 1999
Pontiac Firebird Base 2000
Pontiac Firebird Base 2001
Pontiac Firebird Base 2002
Pontiac Firebird Formula 1998
Pontiac Firebird Formula 1999
Pontiac Firebird Formula 2000
Pontiac Firebird Formula 2001
Pontiac Firebird Formula 2002
Pontiac Firebird Trans Am 1998
Pontiac Firebird Trans Am 1999
Pontiac Firebird Trans Am 2000
Pontiac Firebird Trans Am 2001
Pontiac Firebird Trans Am 2002
