sPOD BantamX Touchscreen for 36in Battery Cables

The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.• Fully programmable, digital controlled system• 8 circuits rated at 30 amps at 12.5 VDC per circuit• 16-position terminal block (easily attach accessories)• 2 controller ports (RJ45) for Ethernet cables• Integrated low voltage cutoff (LVCO) battery protection w/ optional override• One ATM mini-style fuse for LVCO protection & reset• Failsafe self-healing fault protection system (from 1.5 to 30amps)• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)• 100amp in-line fuse• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket• Operates on 12VDC or 24VDC• 8-position input terminal block for controlling outputs• Built-in Bluetooth capabilities for remote control• Protection against: overheating, over-current, shorts, reverse polarity & field collapse• Ignition control and safety lock-out for switches 1 and 2 (optional)• Up to 4 BantamX units can be daisy chained & controlled by one Touchscreen• On-demand wireless software updates/upgradesHARDWARE:• Powder coated steel base w/ built in hardware• Silicone gasket for weatherproofing• Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for supplied legend placement• Universal & vehicle specific mounting options• Robust insulated base and coverFEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):Each switch can be programmed for:•Dimming•Strobe•Flash•Momentary•Switch Linking•On Road sPOD BantamX Touchscreen - Universal (Battery Cable: 36 Inch) sPOD BantamX Touchscreen Universal

• ‚Ä¢ Fully programmable, digital controlled system‚Ä¢ 8 circuits rated at 30 amps at 12

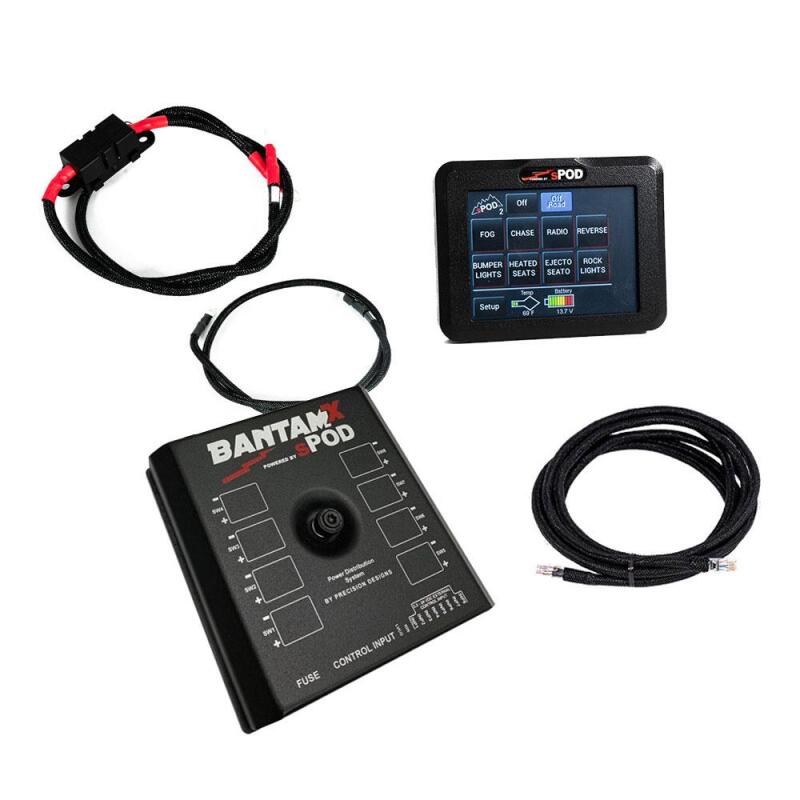

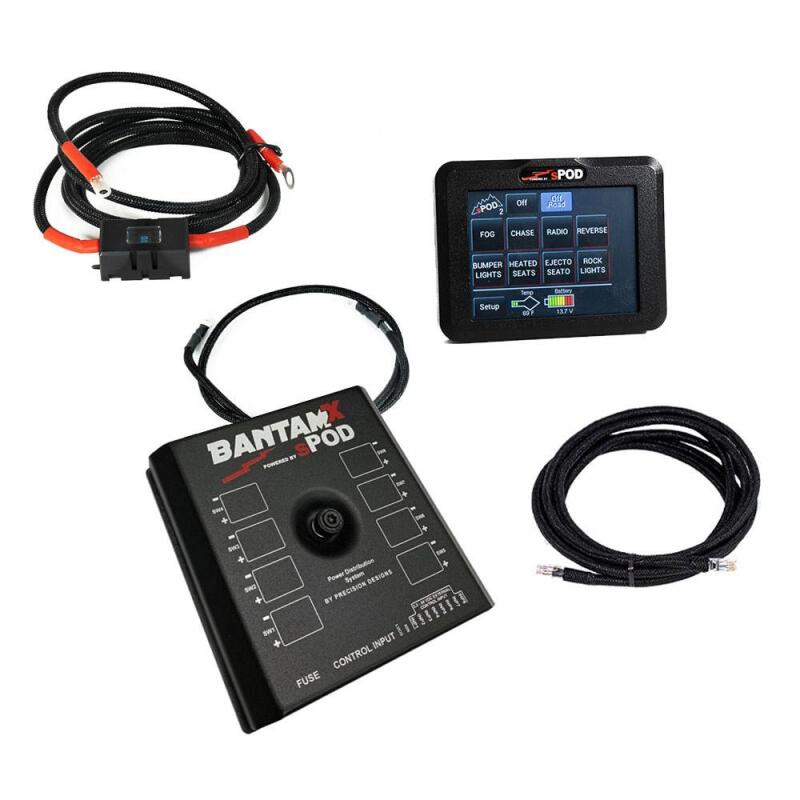

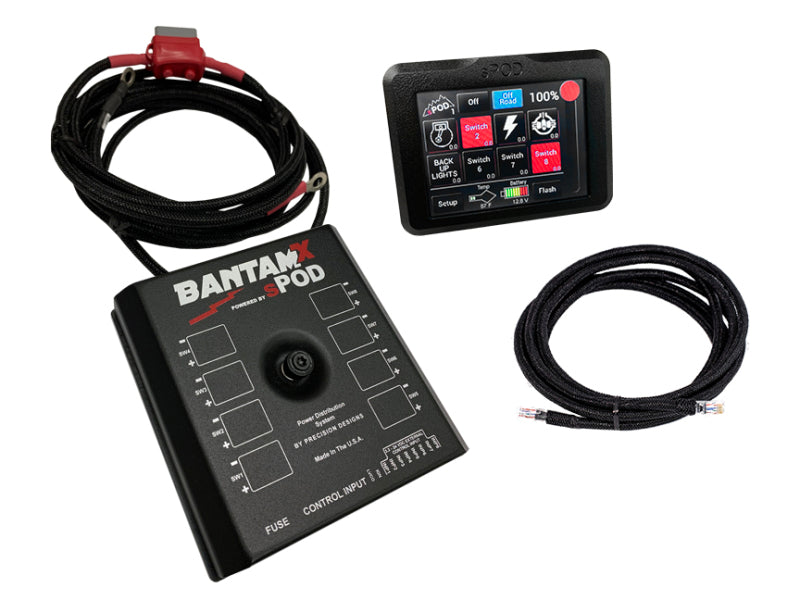

The sPOD BantamX Universal Touchscreen Control System, part spoBXTSBUNI36, provides a clean, efficient way to power and control 12-volt or 24-volt accessories without cutting, fishing wires into the cab, or tapping into the vehicle’s factory electrical system. Designed for off-road vehicles, work trucks, emergency equipment, and other applications with multiple accessories, this compact digital control system helps reduce wiring and installation time while providing flexible placement options. The package includes a universal touchscreen controller and 36-inch battery cables for a streamlined installation.
The BantamX features eight programmable output circuits rated up to 30 amps each at 12.5 volts DC, with a 16-position terminal block for convenient accessory connections and an eight-position input terminal block for output control. Two RJ45 controller ports support Ethernet cable connections, while built-in Bluetooth enables wireless control through the free sPOD Mobile App. Up to four BantamX units can be daisy chained and operated from one touchscreen, making the system suitable for expanded accessory setups. Each switch can be programmed for dimming, strobe, flash, momentary operation, switch linking, and on-road functionality.
Safety and reliability are built into the sPOD BantamX design. Current-sensing MOSFETs controlled by a microprocessor replace conventional relays and fuses, while failsafe self-healing fault protection helps protect against over-current conditions and short circuits. Additional protection includes overheating, reverse polarity, field collapse, and low-voltage battery protection with an optional override. The system also includes ignition control and an optional safety lockout for switches one and two, along with a 100-amp inline fuse and an ATM mini-style fuse for low-voltage cutoff protection and reset.
The weather-resistant hardware package includes a powder-coated steel base, insulated cover, silicone gasket, aluminum lid with thumb-screw fastening, and silkscreened outlines for legend placement. Universal and vehicle-specific mounting options support a clean installation in a variety of applications. Wireless software updates and upgrades help keep the system current, while the robust construction is designed for demanding automotive environments.

Features:

• Eight programmable output circuits rated up to 30 amps each at 12.5 volts DC

• Operates with 12-volt or 24-volt DC electrical systems

• Universal touchscreen controller with 36-inch battery cables

• Built-in Bluetooth control through the free sPOD Mobile App

• Two RJ45 controller ports for Ethernet cable connections

• 16-position accessory terminal block and eight-position input terminal block

• Current-sensing MOSFET control managed by a microprocessor

• Failsafe self-healing protection against over-current conditions and shorts

• Integrated low-voltage cutoff with optional override

• Protection against overheating, reverse polarity, and field collapse

• Optional ignition control and safety lockout for switches one and two

• Supports daisy chaining up to four BantamX units to one touchscreen

• Programmable dimming, strobe, flash, momentary, and switch-linking functions

• Powder-coated steel base with insulated cover and silicone weatherproof gasket

• Wireless software updates and upgrades
