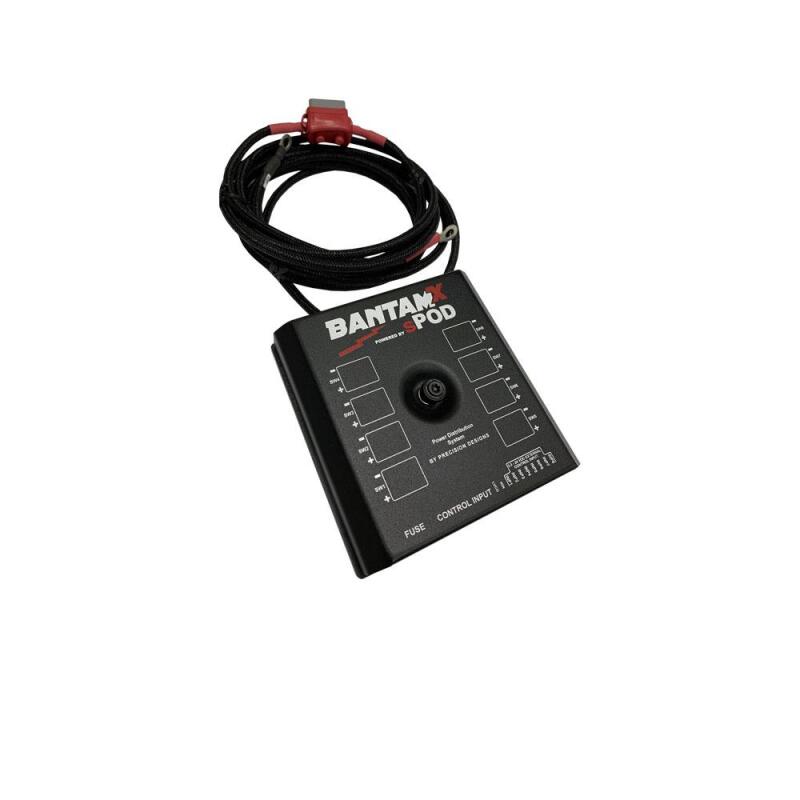

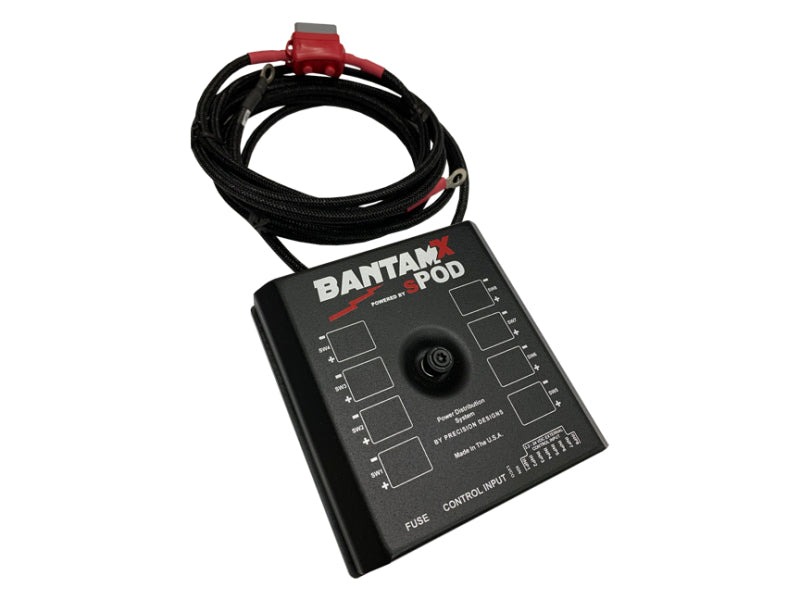

sPOD BantamX Add-On for 36in Battery Cables

This is an add-on BantamX for existing sPOD systems/controllers only! Controller not included. !!! NOTE !!! At least one sPOD controller must be connected in order for the system to work properly.The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.• Fully programmable, digital controlled system• 8 circuits rated at 30 amps at 12.5 VDC per circuit• 16-position terminal block (easily attach accessories)• 2 controller ports (RJ45) for Ethernet cables• Integrated low voltage cutoff (LVCO) battery protection w/ optional override• One ATM mini-style fuse for LVCO protection & reset• Failsafe self-healing fault protection system (from 1.5 to 30amps)• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)• 100amp in-line fuse• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket• Operates on 12VDC or 24VDC• 8-position input terminal block for controlling outputs• Built-in Bluetooth capabilities for remote control• Protection against: overheating, over-current, shorts, reverse polarity & field collapse• Ignition control and safety lock-out for switches 1 and 2 (optional)• Up to 4 BantamX units can be daisy chained & controlled by one Touchscreen• On-demand wireless software updates/upgradesHARDWARE:• Powder coated steel base w/ built in hardware• Silicone gasket for weatherproofing• Aluminum lid• Vehicle specific mounting options• Robust insulated base and coverFEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):Each switch ca BantamX Add-On - Universal (Battery Cable: 36 Inch) BantamX Add-On Universal

• Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‚Äòs electrical system

The sPOD BantamX Add-On is a compact, expandable 8-circuit power distribution and accessory control system designed for existing sPOD controllers. This add-on unit does not include a controller; at least one compatible sPOD controller must be connected for proper operation. Part BXUNI36ADD includes 36-inch battery cables and provides a clean, organized way to power and control 12VDC or 24VDC accessories without cutting into the vehicle wiring, fishing multiple wires into the cab, or tapping the factory electrical system. A single Ethernet cable can connect the unit to the cab, simplifying installation and reducing wiring clutter.
The BantamX features eight circuits rated for up to 30 amps each at 12.5VDC, a 16-position terminal block for accessory connections, two RJ45 controller ports, and an 8-position input terminal block for switch control. Up to four BantamX units can be daisy chained and operated through one sPOD touchscreen. Built-in Bluetooth supports wireless control through the free sPOD Mobile App, while on-demand wireless software updates help keep the system current. Current-sensing MOSFETs and microprocessor control eliminate the need for conventional relays and circuit fuses, while integrated protection helps guard against overheating, over-current conditions, short circuits, reverse polarity, and field collapse.
An integrated low-voltage cutoff helps protect the battery and includes an optional override, with an ATM mini-style fuse supporting LVCO protection and reset. The system also includes a 100-amp inline fuse, ignition control, and optional safety lockout for switches one and two. Its powder-coated steel base, aluminum lid, silicone weatherproofing gasket, and robust insulated construction are designed for demanding automotive, off-road, utility, and powersports applications. The universal BantamX Add-On offers flexible mounting options and a practical solution for managing aftermarket lighting, compressors, radios, winches, and other electrical accessories through a centralized digital control system.

Features:

• Compatibility: Add-on unit for existing sPOD systems; a compatible sPOD controller is required and not included

• Circuit Capacity: Eight programmable circuits rated up to 30 amps each at 12.5VDC

• Voltage Range: Supports 12VDC and 24VDC vehicle electrical systems

• Battery Cables: Includes 36-inch nylon-braided battery cables with high-strand copper wire and silicone jackets

• Expansion: Up to four BantamX units can be daisy chained and controlled by one sPOD touchscreen

• Connectivity: Two RJ45 controller ports support Ethernet cable connections

• Accessory Connections: Integrated 16-position terminal block for attaching accessories

• Input Control: Eight-position input terminal block for controlling outputs

• Wireless Control: Built-in Bluetooth connectivity with support through the free sPOD Mobile App

• Battery Protection: Integrated low-voltage cutoff with optional override and ATM mini-style fuse protection

• Circuit Protection: Current-sensing MOSFETs provide self-healing protection from over-current conditions, shorts, overheating, reverse polarity, and field collapse

• Safety Features: Optional ignition control and safety lockout for switches one and two

• Housing: Powder-coated steel base, aluminum lid, silicone gasket, and insulated construction for weather-resistant installation

• Installation: Compact design helps reduce wiring, eliminates the need to tap the factory electrical system, and supports flexible mounting
