sPOD 8 Circuit Systems Add-On Touchscreen

Add-On Touchscreen For 8 Circuit Systems (BantamX)Time to add a Touchscreen to your 8 Circuit systems? This can be added to your existing 8 circuit systems or used as a second Touchscreen for your existing 8 circuit system. The Touchscreen is not compatible with the 6 circuit systems. Available with 10' or 30' control cable.The industry leader in power and control solutions.sPOD systems utilize automotive grade approved high-power, high-temp, ultra-reliable components with a maximum 100 amp capacity! OEM vehicle specific simple installation hardware, engineered and 100 percent manufactured in the United States since 2006.The touchscreen controller is small but packs a big punch! (3-3/4w X 2-7/8h X 5/8 thick) The control module is a 3.5-inch LED-backlit TFT LCD screen with a resolution of 320 x 240, 16.7m colors, and a viewing angle of 180 degrees housed in a billet aluminumcase. The touchscreen comes with its ownuniversal mounting bracket. The connection between the 8 Circuit System and the touchscreen uses a standard Ethernet cable that is 10 feet long.The sPOD Touchscreen is a resistive touchscreen – meaning unlike most smartphones, it works based on pressure. A stronger touch is necessary for it to respond. This type of touchscreen is very common in industrial electronics, like what you may find for many vehicle touchscreens. For more information, please refer to the Get To Know Your Touchscreen booklet.!!! NOTE !!! The touchscreen is NOT weather resistant and should NOT be exposed to the elements. Water or any liquids will damage the touchscreen and void the warranty.Please note:The touchscreen display will become inoperable if ambient temperatures drop below 45 degrees F.Let the temperature of the cab of the vehicle warm up before operation.Benefits:Reduced installation time and labor allowing for mounting and connection of eight switches at one time versus individually.Reduced wire harness complexity, using one harness to our controller to accommodate up to Add-On Touchscreen - Universal (Cable: 10 ft.) Add-On Touchscreen Universal

• The industry leader in power and control solutions

Expand the control capability of your existing sPOD 8-circuit system with the sPOD SPO860800 Add-On Touchscreen. Designed for use with BantamX and compatible 8-circuit systems, this universal touchscreen can be installed as the primary controller or added as a second touchscreen for convenient access from another location. It is not compatible with sPOD 6-circuit systems.

The controller features a 3.5-inch LED-backlit TFT LCD display with 320 x 240 resolution, 16.7 million colors, and a wide viewing angle. Its billet aluminum housing provides a durable, professional appearance, while the included universal mounting bracket simplifies installation. A standard Ethernet-style control cable connects the touchscreen to the 8-circuit system, reducing wiring complexity and helping streamline installation. This version includes a 10-foot cable.

The sPOD touchscreen uses resistive-touch technology, which responds to applied pressure rather than the light touch used by most smartphones. This design is well suited to industrial and automotive applications, but a firmer touch may be required for operation. As with all sPOD power and control solutions, the system is built around automotive-grade, high-power components engineered for dependable vehicle use.

This touchscreen is intended for installation inside the vehicle cabin and is not weather resistant. Do not expose it to rain, water, or other liquids, as moisture can damage the display and void the warranty. The display may become inoperable when ambient temperatures fall below 45 degrees Fahrenheit; allow the vehicle cabin to warm before operating the controller. The sPOD SPO860800 provides centralized control of up to eight circuits while helping reduce installation time and harness complexity.

Features:

• Compatible with sPOD 8-circuit systems, including BantamX
• Can be used as a primary controller or second touchscreen

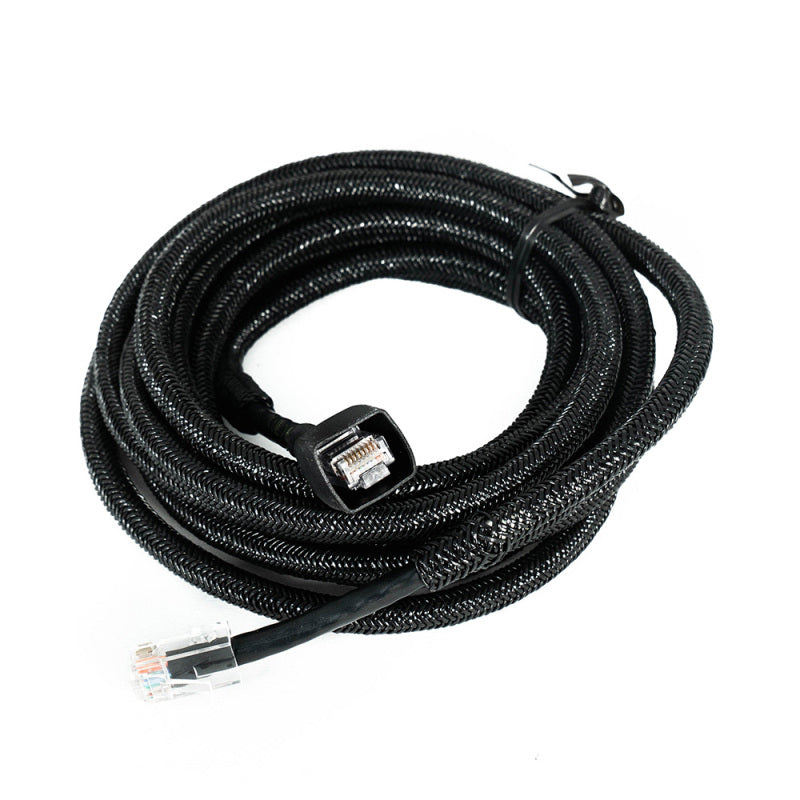

• Includes a 10-foot control cable

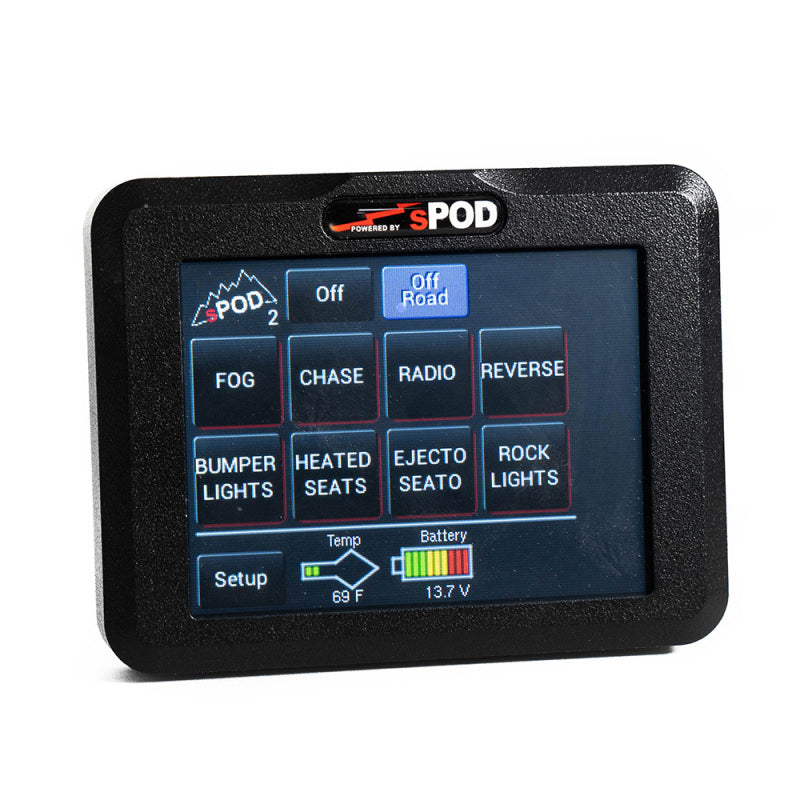

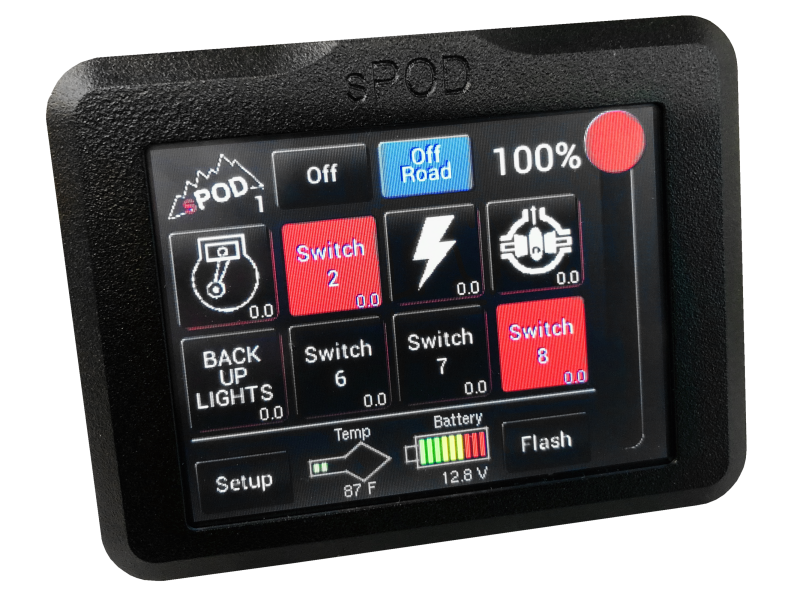

• 3.5-inch LED-backlit TFT LCD display
• 320 x 240 screen resolution with 16.7 million colors
• 180-degree viewing angle
• Resistive touchscreen technology for automotive and industrial use

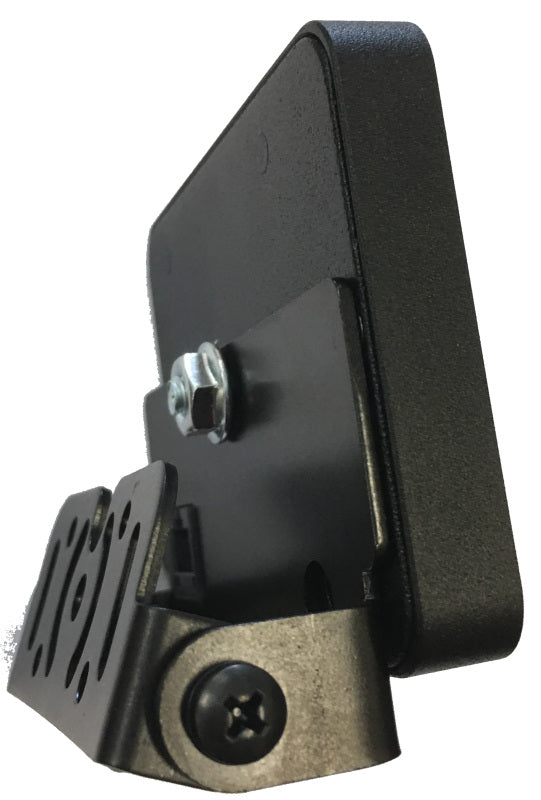

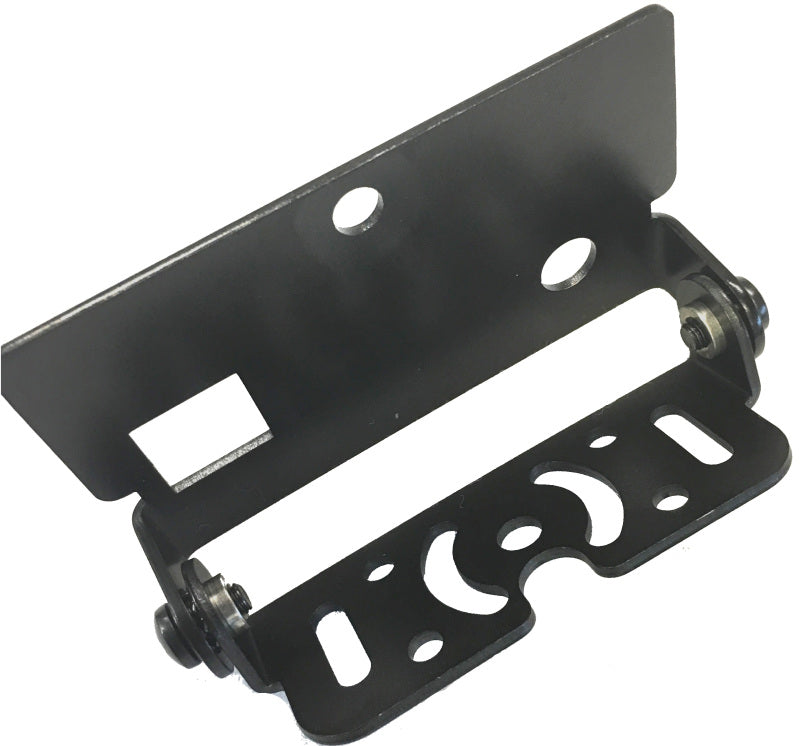

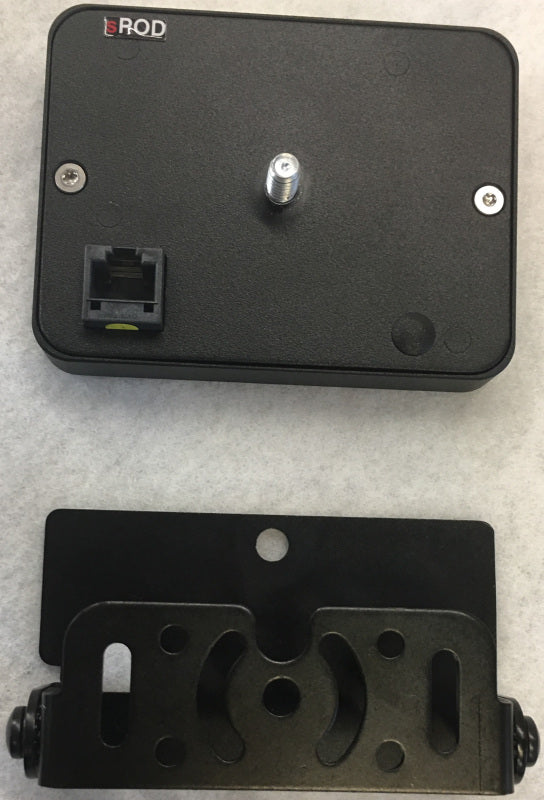

• Billet aluminum housing with universal mounting bracket

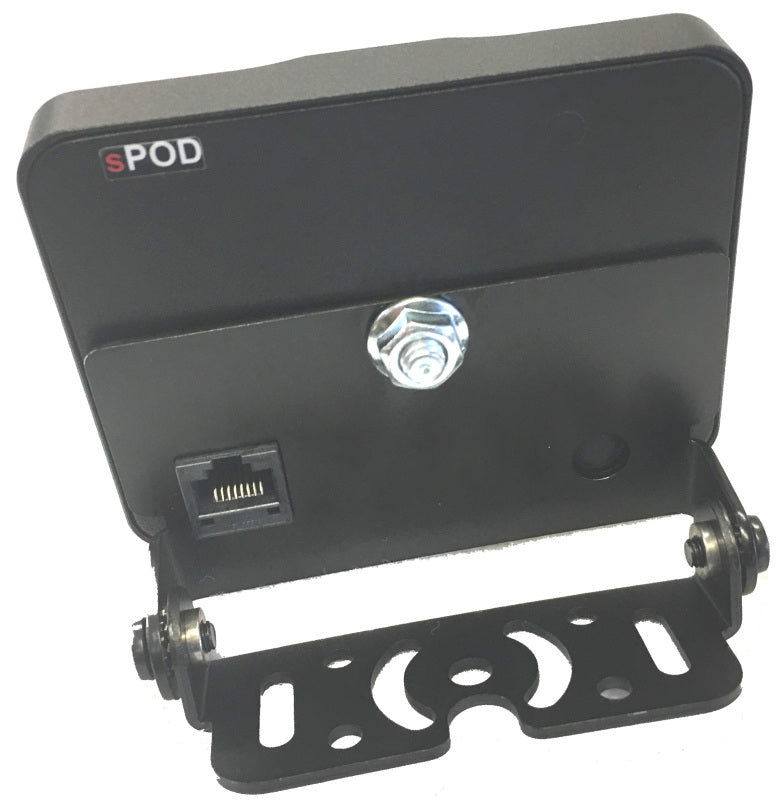

• Standard Ethernet-style connection to the 8-circuit control system
• Not compatible with sPOD 6-circuit systems
• Not weather resistant; indoor vehicle-cabin installation required
• Display operation may be affected below 45 degrees Fahrenheit
