sPOD 07-18 Jeep Wrangler JK BantamX Touchscreen

**Please expect a 2-4 week lead time on product**The BantamX will save hours of wiring & installation time! It is a small, 8-circuit (expandable) control system that provides a clean (one ethernet cable into the cab!) and safe way to power and control 12/24VDC accessories. Due to the small footprint of the BantamX, the placement options are endless! No cutting, fishing wires into the cab or tapping into the vehicle‘s electrical system. It’s the perfect over-all solution for all your aftermarket electrical accessories with options unmatched by anyone.• Fully programmable, digital controlled system• 8 circuits rated at 30 amps at 12.5 VDC per circuit• 16-position terminal block (easily attach accessories)• 2 controller ports (RJ45) for Ethernet cables• Integrated low voltage cutoff (LVCO) battery protection w/ optional override• One ATM mini-style fuse for LVCO protection & reset• Failsafe self-healing fault protection system (from 1.5 to 30amps)• Current-sensing MOSFETs controlled by a microprocessor (no fuses & relays)• 100amp in-line fuse• Nylon braided battery cables are hi-strand crosslinked copper wire with a silicone jacket• Operates on 12VDC or 24VDC• 8-position input terminal block for controlling outputs• Built-in Bluetooth capabilities for remote control• Protection against: overheating, over-current, shorts, reverse polarity & field collapse• Ignition control and safety lock-out for switches 1 and 2 (optional)• Up to 4 BantamX units can be daisy chained & controlled by one Touchscreen• On-demand wireless software updates/upgradesHARDWARE:• Powder coated steel base w/ built in hardware• Silicone gasket for weatherproofing•Simple thumb screw fastening aluminum lid with convenient silkscreened outlines for supplied legend placement• Universal & vehicle specific mounting options• Robust insulated base and coverFEATURES AVAILABLE THROUGH sPOD MOBILE APP (free):Each switch can be programmed for:•Dimming•Strobe BantamX Touchscreen - Jeep 2007-2018 Wrangler JK BantamX Touchscreen Jeep 2007-2018 Wrangler JK

• ‚Ä¢ Fully programmable, digital controlled system‚Ä¢ 8 circuits rated at 30 amps at 12

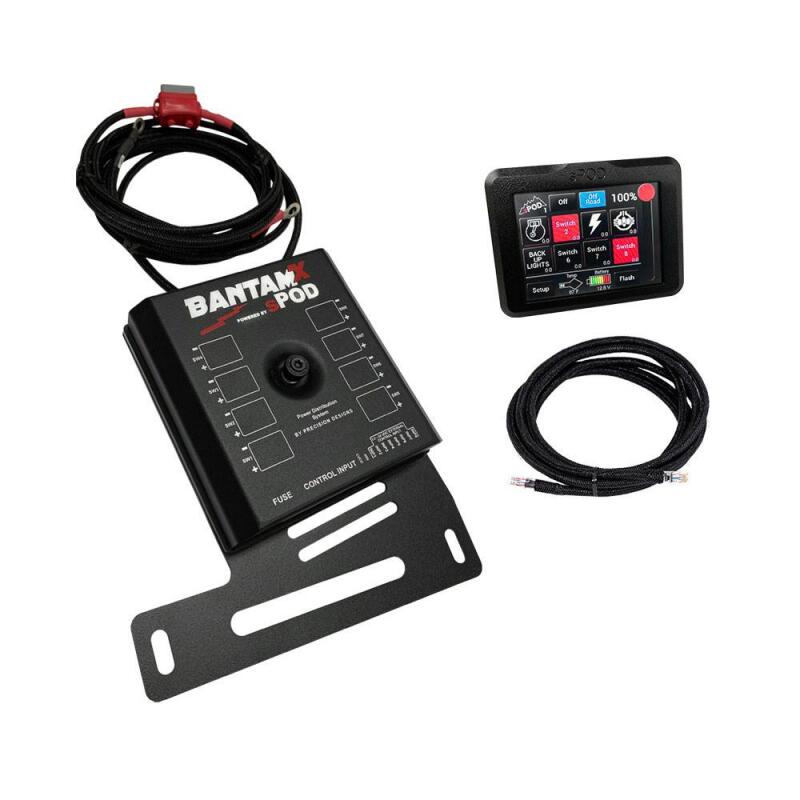

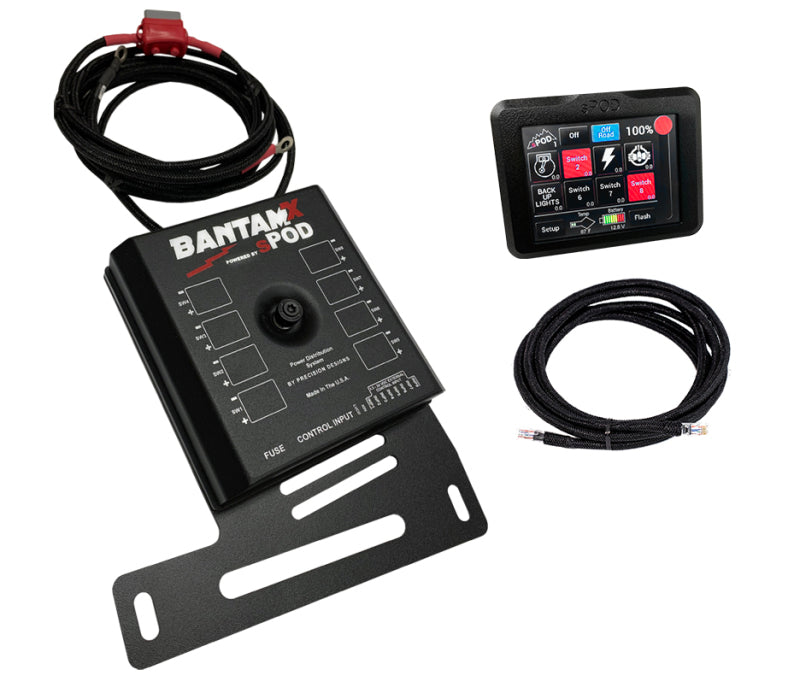

The sPOD BantamX Touchscreen control system provides a clean, programmable way to power and manage 12V or 24V DC accessories in the 2007-2018 Jeep Wrangler JK. Designed to reduce wiring and installation time, the system connects the control unit to the cab with a single Ethernet cable, eliminating the need to cut, fish wires, or tap into the vehicle’s factory electrical system. Its compact design supports flexible mounting locations and helps create an organized, professional accessory installation. This product is identified by sPOD part number SPO870035.
The BantamX features eight independently controlled circuits, each rated for up to 30 amps at 12.5 volts DC, with expansion support for up to four daisy-chained BantamX units operated from one touchscreen. A 16-position terminal block simplifies accessory connections, while the 8-position input terminal block supports output control. Built-in Bluetooth enables wireless operation through the free sPOD Mobile app, including programmable dimming and strobe functions. On-demand wireless software updates and upgrades help keep the system current.
Safety and protection are integrated throughout the system. Current-sensing MOSFETs and a microprocessor replace conventional relays and accessory fuses, while failsafe self-healing fault protection handles conditions from 1.5 to 30 amps. The BantamX also includes low-voltage cutoff battery protection with an optional override, a 100-amp inline fuse, and protection against overheating, over-current, short circuits, reverse polarity, and field collapse. Optional ignition control and safety lockout are available for switches one and two.
The hardware includes a powder-coated steel base, insulated cover, silicone weatherproofing gasket, and an aluminum lid secured with a thumb screw. Silkscreened outlines assist with placement of the supplied switch legends, and universal or vehicle-specific mounting options support a range of installation configurations. The package is designed for dependable accessory control in demanding automotive environments. Please allow a 2-4 week lead time for this product.

Features:

• Fully programmable digital control system

• Eight accessory circuits rated up to 30 amps each at 12.5 volts DC

• Operates with 12V or 24V DC electrical systems

• Bluetooth connectivity for wireless control through the free sPOD Mobile app

• Programmable dimming and strobe functions

• Two RJ45 controller ports for Ethernet cable connections

• 16-position terminal block for accessory connections

• 8-position input terminal block for output control

• Integrated low-voltage cutoff battery protection with optional override

• Failsafe self-healing fault protection from 1.5 to 30 amps

• Current-sensing MOSFET technology controlled by a microprocessor

• 100-amp inline fuse

• Protection against overheating, over-current, shorts, reverse polarity, and field collapse

• Optional ignition control and safety lockout for switches one and two

• Supports up to four daisy-chained BantamX units with one touchscreen

• Powder-coated steel base with insulated cover

• Silicone gasket for weatherproofing

• Aluminum thumb-screw lid with silkscreened legend outlines

• Universal and vehicle-specific mounting options

• Designed for 2007-2018 Jeep Wrangler JK applications

Fitment:
Jeep Wrangler 70th Anniversary 2011
Jeep Wrangler 75th Anniversary 2016
Jeep Wrangler Rubicon 2007
Jeep Wrangler Rubicon 2008
Jeep Wrangler Rubicon 2009
Jeep Wrangler Rubicon 2010
Jeep Wrangler Rubicon 2011
Jeep Wrangler Rubicon 2012
Jeep Wrangler Rubicon 2013
Jeep Wrangler Rubicon 2014
Jeep Wrangler Rubicon 2015
Jeep Wrangler Rubicon 2016
Jeep Wrangler Rubicon 2017
Jeep Wrangler Sahara 2007
Jeep Wrangler Sahara 2008
Jeep Wrangler Sahara 2009
Jeep Wrangler Sahara 2010
Jeep Wrangler Sahara 2011
Jeep Wrangler Sahara 2012
Jeep Wrangler Sahara 2013
Jeep Wrangler Sahara 2014
Jeep Wrangler Sahara 2015
Jeep Wrangler Sahara 2016
Jeep Wrangler Sahara 2017
Jeep Wrangler Sport 2010
Jeep Wrangler Sport 2011
Jeep Wrangler Sport 2012
Jeep Wrangler Sport 2013
Jeep Wrangler Sport 2014
Jeep Wrangler Sport 2015
Jeep Wrangler Sport 2016
Jeep Wrangler Sport 2017
Jeep Wrangler Sport S 2016
Jeep Wrangler Unlimited 70th Anniversary 2011
Jeep Wrangler Unlimited 75th Anniversary 2016
Jeep Wrangler Unlimited Rubicon 2007
Jeep Wrangler Unlimited Rubicon 2008
Jeep Wrangler Unlimited Rubicon 2009
Jeep Wrangler Unlimited Rubicon 2010
Jeep Wrangler Unlimited Rubicon 2011
Jeep Wrangler Unlimited Rubicon 2012
Jeep Wrangler Unlimited Rubicon 2013
Jeep Wrangler Unlimited Rubicon 2014
Jeep Wrangler Unlimited Rubicon 2015
Jeep Wrangler Unlimited Rubicon 2016
Jeep Wrangler Unlimited Rubicon 2017
Jeep Wrangler Unlimited Sahara 2007
Jeep Wrangler Unlimited Sahara 2008
Jeep Wrangler Unlimited Sahara 2009
Jeep Wrangler Unlimited Sahara 2010
Jeep Wrangler Unlimited Sahara 2011
Jeep Wrangler Unlimited Sahara 2012
Jeep Wrangler Unlimited Sahara 2013
Jeep Wrangler Unlimited Sahara 2014
Jeep Wrangler Unlimited Sahara 2015
Jeep Wrangler Unlimited Sahara 2016
Jeep Wrangler Unlimited Sahara 2017
Jeep Wrangler Unlimited Sport 2010
Jeep Wrangler Unlimited Sport 2011
Jeep Wrangler Unlimited Sport 2012
Jeep Wrangler Unlimited Sport 2013
Jeep Wrangler Unlimited Sport 2014
Jeep Wrangler Unlimited Sport 2015
Jeep Wrangler Unlimited Sport 2016
Jeep Wrangler Unlimited Sport 2017
Jeep Wrangler Unlimited Sport S 2016
Jeep Wrangler Unlimited X 2007
Jeep Wrangler Unlimited X 2008
Jeep Wrangler Unlimited X 2009
Jeep Wrangler Unlimited X 2010
Jeep Wrangler X 2007
Jeep Wrangler X 2008
Jeep Wrangler X 2009
Jeep Wrangler X 2010
Jeep Wrangler JK Rubicon 2018
Jeep Wrangler JK Sahara 2018
Jeep Wrangler JK Sport 2018
Jeep Wrangler JK Sport S 2018
Jeep Wrangler JK Unlimited Rubicon 2018
Jeep Wrangler JK Unlimited Sahara 2018
Jeep Wrangler JK Unlimited Sport 2018
Jeep Wrangler JK Unlimited Sport S 2018
