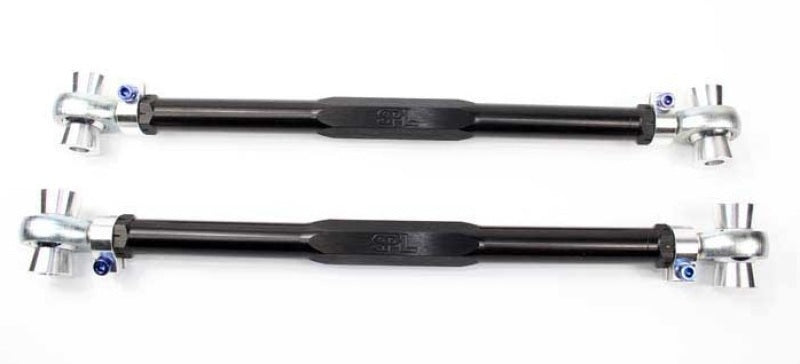

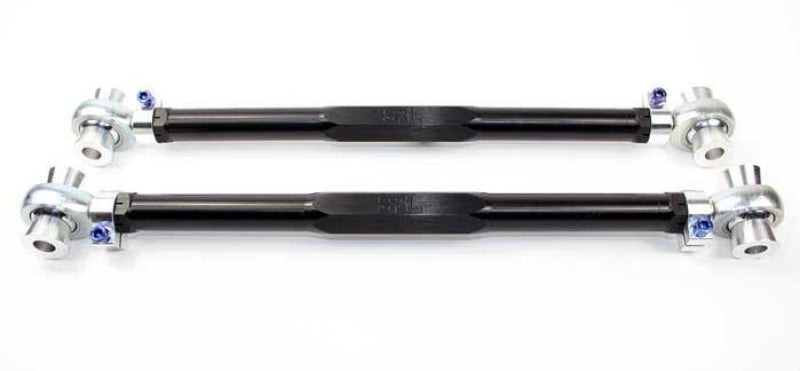

SPL Parts 06-13 BMW 3 Series (E9X) Rear Toe Links

BMW E9X Rear Toe Arms (RTA) for BMW E8X/E9X non M Version increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength. FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65&ordm SPL BMW E9X / E8X Non-M Version Rear Adjustable Toe Arms

• Proudly made, engineered, and assembled in the USA.

Improve rear-end stability, handling response, and alignment precision with SPL Parts Rear Adjustable Toe Arms for BMW E8X and E9X non-M models. Designed to replace the factory rear toe arms, these performance links minimize bushing deflection while providing a broader range of rear toe adjustment. This added adjustability is especially valuable on lowered vehicles and performance cars requiring precise alignment settings. Even minor changes in ride height or camber can alter rear toe, making accurate adjustment essential for maximizing track grip and helping extend tire life during street driving.

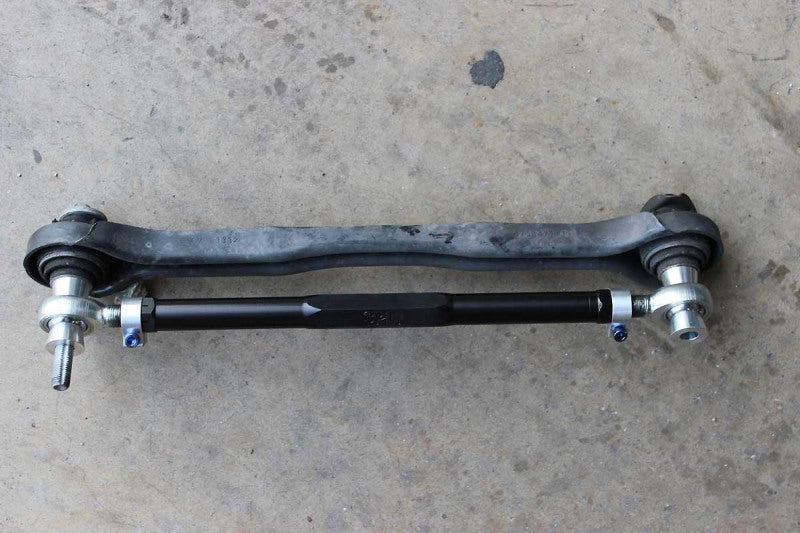

The factory rear toe arms rely on an eccentric bolt and washer, which can limit adjustment range and precision. The SPL Parts SPL RTA E9X uses black-anodized, gun-drilled 2024 aluminum main links and a 360-degree rotating clamp design for fast, precise adjustments. Blue-anodized titanium socket head cap screws provide convenient access while reducing unsprung weight without compromising strength. The design supports repeatable alignment changes for both enthusiast street vehicles and dedicated track cars.
FK spherical bearings and rod ends are manufactured in Connecticut and use a PTFE liner for quiet operation, low friction, and smooth articulation. The liner helps eliminate bushing deflection under load while providing self-lubricating, self-cleaning performance and strong resistance to dynamic wear. With a broad operating temperature range and high load capacity, these toe arms are engineered for dependable use in demanding street and motorsport environments. SPL Parts products are proudly made, engineered, and assembled in the USA.
These rear adjustable toe arms fit select 2006–2013 BMW 3 Series E9X non-M applications, including the 325xi, 328i, and 328xi. Verify vehicle compatibility before installation, particularly when distinguishing non-M chassis applications from M models.

Features:

• Application: Rear adjustable toe arms for BMW E8X/E9X non-M models

• Adjustment: Increased rear toe adjustment range for lowered vehicles and performance alignments

• Construction: Black-anodized, gun-drilled 2024 aluminum main links

• Clamps: 360-degree rotating clamps for quick and precise adjustment

• Hardware: Blue-anodized titanium socket head cap screws

• Bearings: FK spherical bearings and rod ends with PTFE liners

• Performance: Reduces bushing deflection and improves alignment consistency

• Operation: Quiet, low-friction, self-lubricating, and self-cleaning bearing design

• Manufacturing: Made, engineered, and assembled in the USA

• Fitment: Select 2006–2013 BMW 3 Series E9X non-M models

Fitment:
BMW 128i Base 2008
BMW 128i Base 2009
BMW 128i Base 2010
BMW 128i Base 2011
BMW 128i Base 2012
BMW 128i Base 2013
BMW 135i Base 2008
BMW 135i Base 2009
BMW 135i Base 2010
BMW 135i Base 2011
BMW 135i Base 2012
BMW 135i Base 2013
BMW 135is Base 2013
BMW 325i Base 2006
BMW 325xi Base 2006
BMW 328i Base 2007
BMW 328i Base 2008
BMW 328i Base 2009
BMW 328i Base 2010
BMW 328i Base 2011
BMW 328i Base 2012
BMW 328i Base 2013
BMW 328i xDrive Base 2009
BMW 328i xDrive Base 2010
BMW 328i xDrive Base 2011
BMW 328i xDrive Base 2012
BMW 328i xDrive Base 2013
BMW 328xi Base 2007
BMW 328xi Base 2008
BMW 330i Base 2006
BMW 330xi Base 2006
BMW 335d Base 2009
BMW 335d Base 2010
BMW 335d Base 2011
BMW 335i Base 2007
BMW 335i Base 2008
BMW 335i Base 2009
BMW 335i Base 2010
BMW 335i Base 2011
BMW 335i Base 2012
BMW 335i Base 2013
BMW 335i xDrive Base 2009
BMW 335i xDrive Base 2010
BMW 335i xDrive Base 2011
BMW 335i xDrive Base 2012
BMW 335i xDrive Base 2013
BMW 335is Base 2011
BMW 335is Base 2012
BMW 335is Base 2013
BMW 335xi Base 2007
BMW 335xi Base 2008
