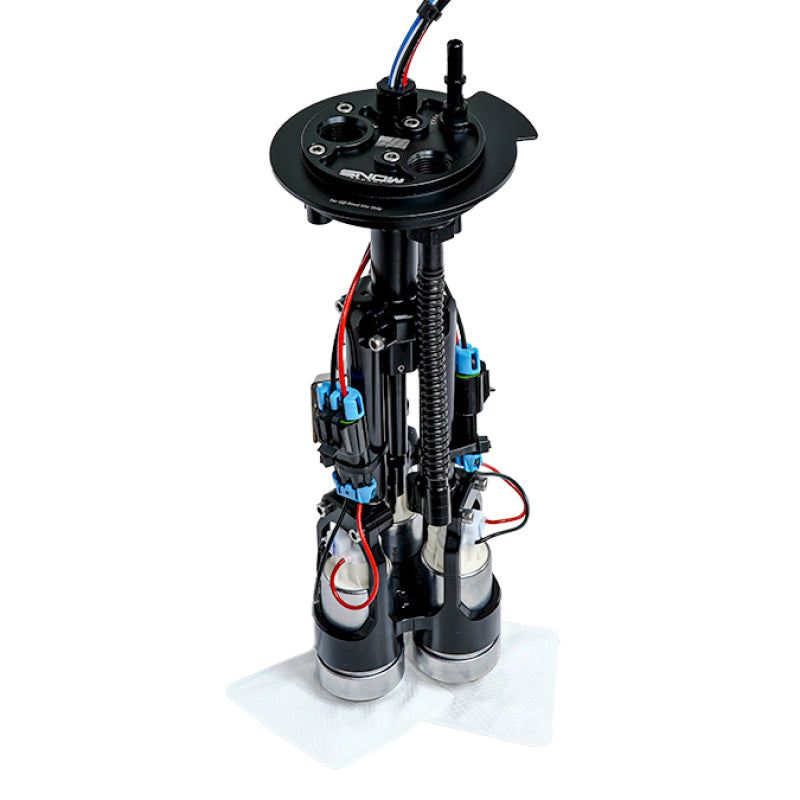

Snow Performance 14-19 Chevrolet Corvette C7 Standard Version Fuel Hat (2 Pump)

Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses and hose clamps? Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC machined passages making these the nicest high output fuel pump upgrade on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC machined bodies hold the fuel pumps securely and feature Viton chemical-resistant O-rings and guarantee a perfect leak-free fit. Snow Performance Fuel Hats are engineered, CNC machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels. Snow fuel hats completely replace your factory fuel hat/bucket for an easy installation, retaining your factory tank features including, the OE fuel level sending unit, EVAP system, filler neck, and if equipped with saddle style tanks, the fuel transfer pump functionality. Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90 degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with a combination of 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450LPH or 470LPH). These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol or any blend of Gasoline and Ethanol (E10, E85, E98 for example). 3 Pump Xtreme Configuration (Three 490lph 535 pumps). This configuration can support 1900+ on E85 and up to 2500 rwhp on gasoline. This configuration is designed for max/effort/flow. (All 3 pumps MUST run at the same time! If all 3 pumps are not running at the same time, you will see pressure issues because it will backfeed through the remaining unpowered pump (s). If you are looking to stage your pumps, this Xtreme configuration will not work. You will need to run our 3 Pump Race, 3 Pump Street, or 2 Pump Street.)

• Does NOT include Fuel Level Sending Unit. Does NOT Include Fittings.
• Includes Wiring Harnesses for pumps and fuel level sending unit.

The Snow Performance SNF-52150 3-Pump Xtreme Fuel Hat is a high-output fuel system upgrade for 2014-2019 Chevrolet Corvette C7 applications. Designed to replace the factory fuel hat and bucket, this assembly supports three genuine TI Automotive (Walbro) 535 pumps and is engineered for maximum fuel flow. The Xtreme configuration can support more than 1,900 rear-wheel horsepower on E85 and up to 2,500 rear-wheel horsepower on gasoline, making it well suited for demanding high-performance and competition fuel systems. All three pumps must operate simultaneously; this configuration is not designed for staged pump operation or returnless fuel systems.
Snow Performance manufactures the fuel hat in the USA from 6061 billet aluminum with CNC-machined passages and a durable black anodized finish. The precision-machined body secures the pumps while Viton chemical-resistant O-rings provide a reliable, leak-resistant seal. By eliminating conventional rubber or plastic lines, T-fittings, and hose clamps inside the tank, the design helps simplify installation and reduce potential fuel-system failure points. The assembly is compatible with gasoline, ethanol, and gasoline-ethanol blends including E10, E85, and E98.
The SNF-52150 retains important factory fuel tank functions, including the original fuel level sending unit, EVAP system, filler neck, and saddle-tank transfer pump functionality when equipped. It features female 10AN ORB feed and 8AN ORB return ports, while optional 90-degree swivel adapter fittings are available separately for adapting to 10AN, 8AN, or 6AN fuel lines. This return-style fuel hat includes wiring harnesses for the fuel pumps and fuel level sending unit. The fuel level sending unit and fittings are not included. This product is not emissions-certified for street use and may require acknowledgment of applicable regulatory requirements.

Features:

• Application: Fits 2014-2019 Chevrolet Corvette C7 models

• Configuration: Three-pump Xtreme setup using genuine TI Automotive (Walbro) 535 fuel pumps

• Fuel Capacity: Supports more than 1,900 rear-wheel horsepower on E85 and up to 2,500 rear-wheel horsepower on gasoline

• Construction: CNC-machined 6061 billet aluminum body manufactured in the USA

• Finish: Black anodized coating for enhanced durability and corrosion resistance

• Sealing: Viton chemical-resistant O-rings provide a reliable leak-resistant fit

• Fuel Compatibility: Suitable for gasoline, ethanol, E10, E85, E98, and gasoline-ethanol blends

• Fuel Ports: Female 10AN ORB feed and 8AN ORB return ports

• Factory Integration: Retains the fuel tank’s fuel level sending unit, EVAP system, filler neck, and applicable transfer pump functionality

• Wiring: Includes harnesses for the fuel pumps and fuel level sending unit

• Installation: Designed for return-style fuel systems only and requires all three pumps to run simultaneously

• Included Components: Fuel level sending unit and adapter fittings are not included

Fitment:
Chevrolet Corvette Grand Sport 2017
Chevrolet Corvette Grand Sport 2018
Chevrolet Corvette Grand Sport 2019
Chevrolet Corvette Stingray 2014
Chevrolet Corvette Stingray 2015
Chevrolet Corvette Stingray 2016
Chevrolet Corvette Stingray 2017
Chevrolet Corvette Stingray 2018
Chevrolet Corvette Stingray 2019
Chevrolet Corvette Z06 2015
Chevrolet Corvette Z06 2016
Chevrolet Corvette Z06 2017
Chevrolet Corvette Z06 2018
Chevrolet Corvette Z06 2019
Chevrolet Corvette ZR1 2019
