RockJock Johnny Joint Rod End 2in Weld-On 2in X .500in Ball Ext. Greased

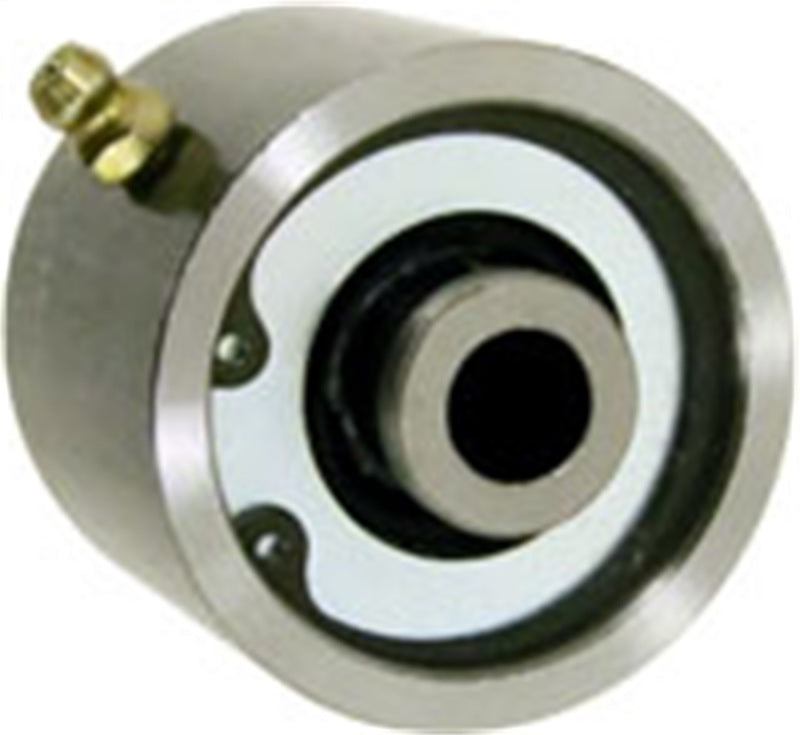

RockJocks weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 in. o.d. and features a 2 in. mounting width and a .500 in. thru bolt hole. Johnny Joint® Rod End; 2 in.; Externally Greased-0.5 in. Thru Hole;

The RockJock Johnny Joint rod end is designed for high-performance automotive and suspension applications, providing superior movement and durability. With a 2-inch outer diameter and a .500-inch thru bolt hole, this weld-on joint offers a robust connection point for fabricators seeking reliable articulation in their suspension systems. The joint's high-density urethane bushings deliver cushioning that traditional heim joints cannot match, reducing stress on connected components and enhancing ride comfort and handling. Its heat-treated, cross-drilled center ball allows efficient lubrication through the integrated Zerk fitting, ensuring long-lasting performance and minimal maintenance. The outer shell is constructed from .180-inch wall machined DOM tubing, making it weldable and capable of withstanding demanding conditions. The inclusion of heavy-duty, heat-treated side washers and a snap ring guarantees internal retention and structural integrity under load. This Johnny Joint is ideal for custom builds, off-road vehicles, or any project requiring maximum articulation and durability. Its design emphasizes flexibility with 30 degrees of unrestricted movement in any direction, surpassing the typical 22 degrees offered by standard heim joints. Whether for a professional fabrication shop or a serious enthusiast, this rod end provides the strength, movement, and reliability necessary for high-performance suspensions.

Features:

• Weld-on design for secure attachment in custom suspension setups

• 30 degrees of unrestricted movement in any direction for maximum articulation

• High-density urethane bushings for cushioning and reduced stress on components

• Heat-treated, cross-drilled center ball for efficient lubrication via Zerk fitting

• .180-inch wall DOM tubing outer shell for weldability and durability

• Outer shell fitted with a greasing Zerk fitting for easy maintenance

• Designed with a 2-inch outer diameter and .500-inch thru bolt hole for compatibility

• Heavy-duty, heat-treated side washers and snap ring for internal retention

• Constructed for automotive applications requiring high durability and performance
