RockJock Johnny Joint Rod End 2in Narrow Weld-On 1.600in X .480in Ball Ext. Greased

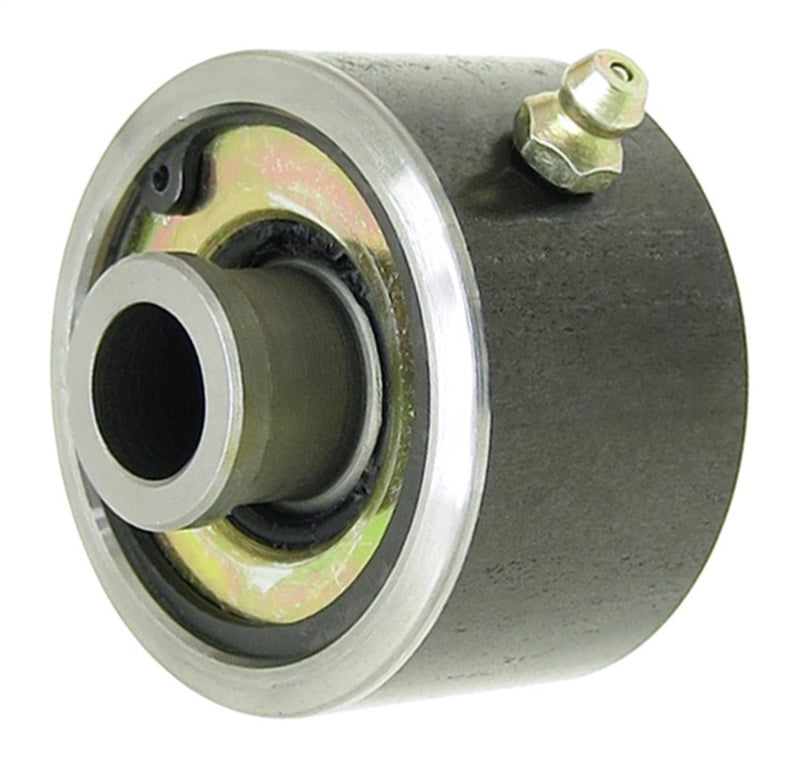

RockJocks narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 in. o.d. narrow body and features a 1.600 in. mounting width and a .480 in. thru bolt hole. Johnny Joint® Rod End; 2 in.; Externally Greased;

• Narrow Johnny Joint® Rod End

The RockJock Johnny Joint Rod End 2 Inch Narrow Weld-On offers exceptional versatility for fabricators and suspension system builders seeking enhanced articulation and durability. Featuring a high-strength weldable outer shell made from .180 inch wall machined DOM tubing, this joint provides a reliable connection point with a 1.600-inch mounting width and a .480-inch thru bolt hole for secure installation. The design allows for 40 degrees of unrestricted movement in any direction, significantly surpassing the typical 22 degrees offered by standard heim joints, making it ideal for demanding off-road and performance applications.
The Johnny Joint's unique cushioning system incorporates a high-density urethane bushing that encases the inner ball, delivering superior vibration absorption and reducing metal-to-metal contact, which extends component lifespan. Heat-treated center balls are cross-drilled for efficient thru-bolt lubrication, ensuring smooth operation over time. The joint internals are securely retained with two heavy-duty, heat-treated side washers and a snap ring, providing enhanced structural integrity. A built-in zerk fitting facilitates easy greasing, maintaining optimal performance and minimizing maintenance.
This specific model is a 2-inch outer diameter narrow body joint, designed to accommodate demanding automotive and suspension rebuild projects. Its robust construction and high articulation capabilities make it a preferred choice for off-road vehicles, race cars, and custom suspension systems that require reliable, high-performance rod ends. The Johnny Joint's proven design and quality materials ensure durability and consistent operation in challenging environments, making it an essential component for serious fabricators and mechanics seeking top-tier suspension solutions.

Features:

• High articulation: Offers 40 degrees of unrestricted movement in any direction for superior flexibility.

• Durable construction: Weldable .180 in. wall machined DOM tubing outer shell for strength and reliability.

• Enhanced cushioning: High-density urethane bushing provides vibration absorption and reduces metal contact.

• Efficient lubrication: Cross-drilled heat-treated center balls with thru-bolt lubrication system.

• Secure mounting: 1.600-inch mounting width with a .480-inch thru bolt hole for easy installation.

• Maintenance-friendly: Built-in zerk fitting for straightforward greasing and upkeep.

• Heavy-duty internal components: Retained with heat-treated side washers and snap ring for longevity.
