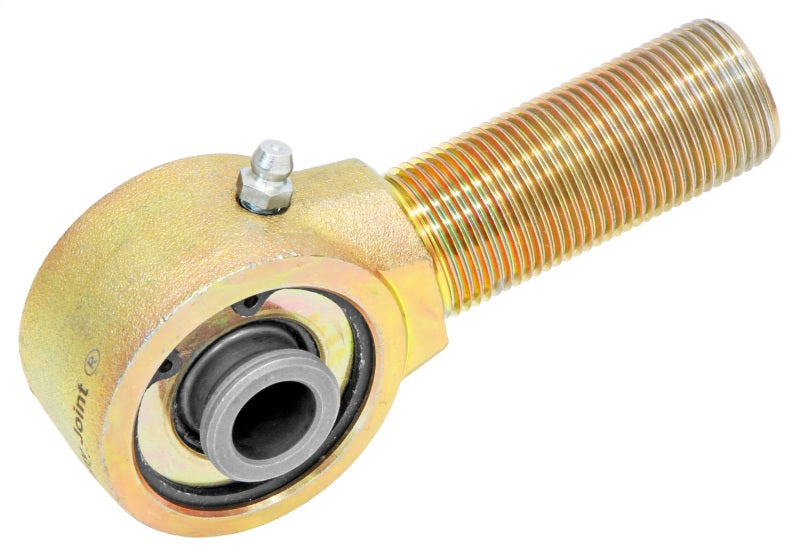

RockJock Johnny Joint Rod End 2in Narrow Forged 2in X .500in Ball 1in-14 RH Thread Shank

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2 in. mounting width ball with a .500 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2 in.; w/1 in. RH Thread/0.5 in. X 2 in. Ball;

• Narrow Forged Johnny Joint®

The RockJock Johnny Joint Rod End offers superior flexibility and durability for automotive fabricators and suspension system builders. Featuring a 2-inch diameter, this narrow forged Johnny Joint is engineered to provide up to 40 degrees of unrestricted movement in any direction, significantly surpassing the typical 22 degrees offered by standard heim joints. Its high-strength construction makes it ideal for high-performance applications where precise articulation is essential. The component is finished with a corrosion-resistant gold zinc plating, ensuring longevity in demanding environments. Inside, the joint incorporates a high-density urethane bushing that cushions movement, reducing stress on connected components and providing a smoother operation. The heat-treated center ball is cross-drilled for effective lubrication via the included zerk fitting, facilitating maintenance and extending the joint's lifespan. The assembly includes a 2 1/4-inch shank with a 1-inch-14 right-hand thread, a 2-inch mounting width ball, and a .500-inch thru-bolt hole, making it compatible with a variety of suspension configurations. Designed for reliability and performance, this Johnny Joint rod end is a vital component for custom suspension builds and off-road projects that demand high articulation and durability. Suitable for use in automotive applications, it combines advanced engineering with quality materials to ensure optimal operation and long service life.

Features:

• Narrow forged Johnny Joint design for high strength and precise movement

• Provides up to 40 degrees of unrestricted movement in any direction

• High-density urethane bushing offers cushioning and reduces stress

• Heat-treated, cross-drilled center ball for effective lubrication with zerk fitting

• Includes a 2-inch mounting width ball with .500-inch thru-bolt hole

• Fitted with 1-inch-14 right-hand thread shank for secure attachment

• Finished with durable gold zinc plating for corrosion resistance

• Compatible with automotive suspension systems requiring high articulation
