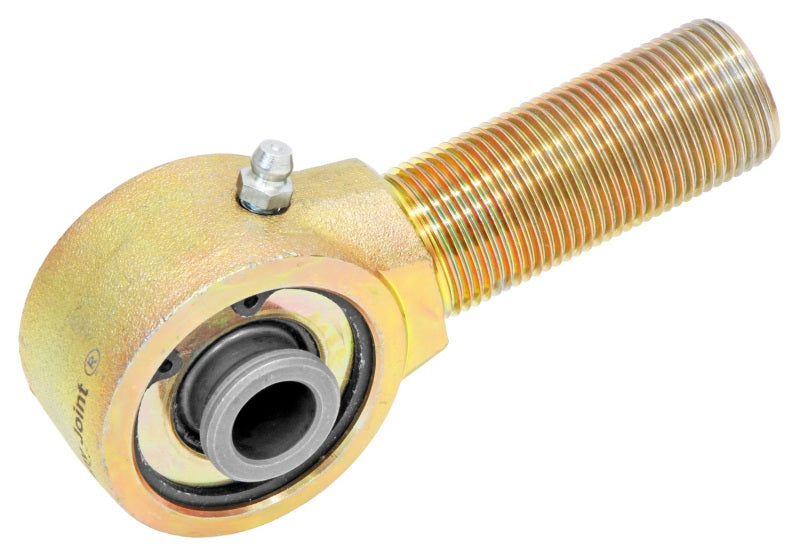

RockJock Johnny Joint Rod End 2in Narrow Forged 2.190in X 0.482in Ball 1in-14 RH Threaded Shank

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2.190 in. mounting width ball with a .482 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2 in.; w/1 in. RH Thread/.482 in. X 2.190 in. Ball;

• Narrow Forged Johnny Joint®

The RockJock Johnny Joint Rod End is a precision-engineered component designed for high-performance suspension systems and custom fabrication projects. This 2-inch diameter narrow forged Johnny Joint features a robust construction that provides 40 degrees of unrestricted movement in any direction, significantly exceeding the 22-degree range of standard heim joints. This enhanced range of motion makes it ideal for demanding automotive applications requiring precise articulation and durability. The high-density urethane bushing encapsulating the inner ball offers cushioning that traditional heim joints cannot match, reducing vibrations and absorbing shocks for smoother operation. The heat-treated center ball is cross-drilled for efficient lubrication via the included Zerk fitting, ensuring long-lasting performance and minimal wear. The joint's internals are secured with heavy-duty, heat-treated side washers and a snap ring, contributing to its strength and reliability. This specific model is finished in gold zinc plating for corrosion resistance and aesthetic appeal. Its 2-inch width, combined with a 2 1/4-inch length, and a 1-inch-14 right-hand threaded shank with a 0.482-inch thru-bolt hole, makes it suitable for a range of custom suspension setups. Whether you're building a race vehicle, off-road rig, or custom project, the RockJock Johnny Joint offers superior articulation, durability, and ease of maintenance, making it a trusted choice for professionals and enthusiasts alike.

Features:

• Narrow forged Johnny Joint design for enhanced strength and fitment

• 40 degrees of unrestricted movement for superior articulation

• High-density urethane bushing provides cushioning and shock absorption

• Heat-treated, cross-drilled center ball for efficient lubrication

• Includes Zerk fitting for easy greasing and maintenance

• Heavy-duty, heat-treated side washers and snap ring ensure durability

• Gold zinc plated finish offers corrosion resistance

• Threaded shank with 1 inch-14 right-hand threads for secure attachment

• Ball width of 2.190 inches with a 0.482-inch thru-bolt hole
