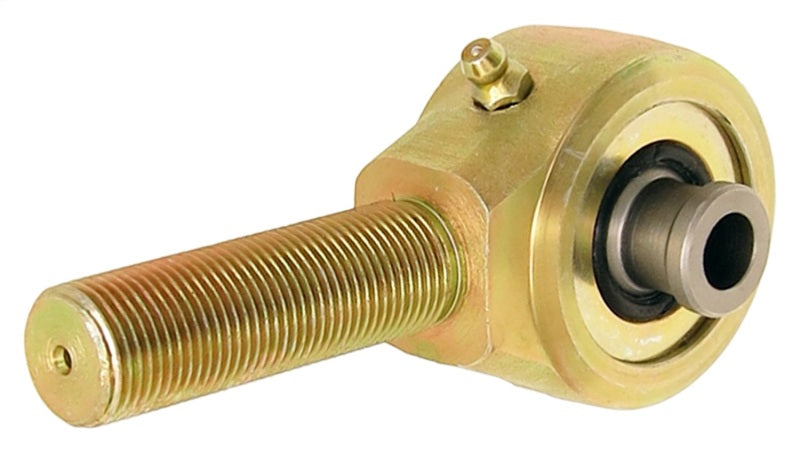

RockJock Johnny Joint Rod End 2in Narrow Forged 1.800in X .625in Ball 3/4in-16 RH Thread Shank

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 1.800 in. mounting width ball with a .625 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2 in.; Narrow Forged Joint w/0.75 in. Right Hand Thread; .625 in. X 1.800 in. Ball;

• Johnny Joint®

The RockJock Johnny Joint Rod End is a high-performance component designed for suspension system builders and fabricators seeking maximum flexibility and durability. This 2-inch diameter forged joint features a narrow profile that allows for greater range of motion, offering up to 40 degrees of unrestricted movement in any direction, significantly exceeding the typical 22 degrees found in standard heim joints. Its robust construction ensures reliable operation in demanding automotive applications where articulation and cushion are critical. The high-density urethane bushing encasing the inner ball provides cushioning that standard heim joints cannot match, minimizing stress and impact during dynamic movements. The heat-treated, cross-drilled center balls facilitate effective lubrication through the integrated Zerk fitting, enhancing longevity and performance. The internals are securely retained with heavy-duty, heat-treated side washers and a snap ring, ensuring consistent operation under load. Finished with durable gold zinc plating, this Johnny Joint not only offers corrosion resistance but also maintains its performance and aesthetic appeal over time. The joint's design includes a 2 1/4-inch length shank with a 3/4-inch-16 right-hand thread, making it compatible with a wide range of suspension setups. Its 0.625-inch thru-bolt hole and 1.800-inch ball width provide a secure fit in custom fabrication projects. Whether you are building off-road vehicles, race cars, or custom suspension systems, the RockJock Johnny Joint Rod End offers exceptional articulation, cushioning, and durability to meet rigorous performance demands.

Features:

• Unrestricted movement: 40 degrees in any direction for enhanced articulation.

• High-density urethane cushioning: Provides better shock absorption compared to traditional heim joints.

• Heat-treated, cross-drilled center balls: Facilitates efficient lubrication via Zerk fitting for extended service life.

• Heavy-duty internal retention: Secure assembly with heat-treated side washers and snap ring.

• Corrosion-resistant finish: Gold zinc plating for durability and aesthetic appeal.

• Compatibility: Fits 2-inch diameter mounting with 1.800-inch ball width and 3/4-inch-16 right-hand thread shank.

• Versatile application: Suitable for automotive suspension systems requiring high articulation and durability.
