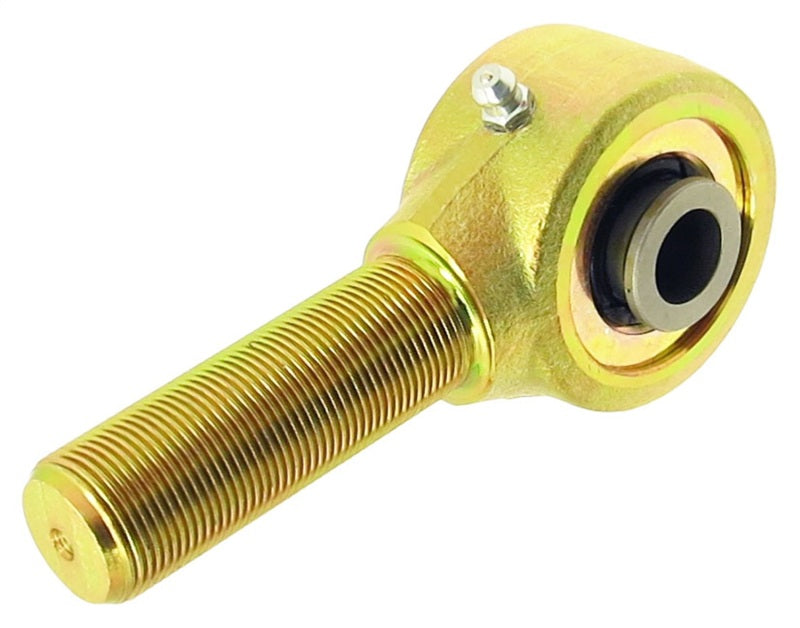

RockJock Johnny Joint Rod End 2in Narrow Forged 1.600in X .562in Ball 7/8in-14 RH Thread Shank

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 7/8 in.-14 right hand threads on the shank, and a 1.600 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2 in.; w/0.875 in. RH Thread/.562 in. X 1.600 in. Ball;

• Narrow Forged Johnny Joint®

The RockJock Johnny Joint Rod End (Part Number: rokCE-9116N-13) is engineered for heavy-duty suspension applications requiring maximum articulation and durability. Featuring a 2-inch diameter forged body, this Johnny Joint offers an impressive 40 degrees of unrestricted movement in any direction, significantly exceeding the 22-degree range of standard heim joints. This enhanced articulation makes it ideal for custom fabrications, off-road vehicles, and performance suspensions where precise movement and reliability are essential. The joint's design incorporates a high-density urethane bushing that provides cushioning and absorbs impacts that typical heim joints cannot, improving ride quality and reducing stress on connected components. The heat-treated center ball is cross-drilled for efficient lubrication through the included Zerk fitting, ensuring smooth operation and prolonged service life. The internal components are secured with heavy-duty, heat-treated side washers and a snap ring for added strength and stability. The 1.600-inch diameter ball and 7/8-inch-14 right-hand threaded shank with 2 1/4 inches of thread length allow for versatile mounting options. Finished in durable gold zinc plating, this Johnny Joint combines corrosion resistance with a professional appearance, making it suitable for both performance and restoration projects. Designed for ease of use, the RockJock Johnny Joint Rod End provides high articulation, cushioning, and long-lasting performance in demanding automotive environments. Whether building custom suspension systems or upgrading existing setups, this component delivers exceptional functionality and durability that meet the rigorous standards of automotive fabricators and enthusiasts alike.

Features:

• Narrow forged Johnny Joint design for increased articulation

• 40 degrees of movement in any direction for enhanced flexibility

• High-density urethane bushing provides cushioning and impact absorption

• Heat-treated, cross-drilled center ball for efficient lubrication

• Durable gold zinc plating offers corrosion resistance

• Includes Zerk fitting for easy greasing

• 7/8 inch-14 right-hand threaded shank with 2 1/4 inch thread length

• 1.600 inch mounting width ball for versatile installation

• Heavy-duty, heat-treated side washers and snap ring for secure internals
