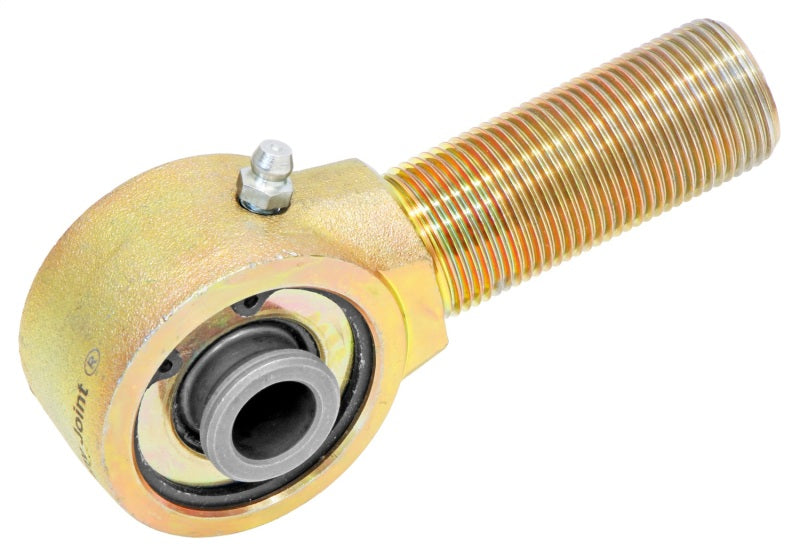

RockJock Johnny Joint Rod End 2in Forged 1.600in X .562in Ball 1in-14 RH Thread Shank Ext. Greased

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 1.600 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2 in.; Narrow Body; 1.600 in. Mounting Width; 1 in.-14 RH Threaded Shank; Externally Greased; w/o Bolt; .562 in. Thru Bolt Hole; Each;

• Zerk Fitting For External Greasing - No Bolt Incl

The RockJock Johnny Joint Rod End (Part Number: rokCE-9112N-13) is designed for high-performance suspension systems and custom fabrications requiring extensive articulation. With a 2-inch diameter forged body, this Johnny Joint provides 40 degrees of unrestricted movement in any direction, significantly surpassing the typical 22 degrees offered by standard heim joints. This increased range of motion enhances suspension flexibility and durability in demanding off-road or racing applications. The joint features a high-density urethane bushing that offers cushioning not found in traditional heim joints, reducing stress and wear on connected components. The heat-treated center ball is cross-drilled for efficient lubrication through a built-in zerk fitting, ensuring smooth operation and longevity. The joint's internals are secured with heavy-duty, heat-treated side washers and a snap ring for reliable retention under heavy loads. Finished in durable gold zinc plating, this rod end resists corrosion and maintains performance in harsh environments. The 1.600-inch mounting width and 1-inch-14 right-hand threaded shank make installation straightforward, while the .562-inch thru bolt hole allows for secure fastening. This component is ideal for fabricators and suspension builders seeking a robust, high-articulation joint that combines flexibility, durability, and ease of maintenance. Each joint is sold individually, with external greasing via the included zerk fitting, enabling regular lubrication for optimal performance. Please note, this product does not include a bolt and is suitable for applications requiring reliable, unrestricted movement in automotive and off-road suspension systems.

Features:

• 40 degrees of unrestricted movement for enhanced suspension articulation

• Forged 2-inch diameter body for high strength and durability

• High-density urethane bushing provides cushioning and reduces wear

• Heat-treated, cross-drilled center ball for efficient lubrication via zerk fitting

• Heavy-duty, heat-treated side washers and snap ring for secure internal retention

• Gold zinc plating offers corrosion resistance and longevity

• Mounting width of 1.600 inches with a 1-inch-14 right-hand threaded shank

• Thru bolt hole diameter of .562 inches for secure fastening

• External greasing via included zerk fitting for maintenance

• Sold individually, designed for professional fabrication and suspension applications
