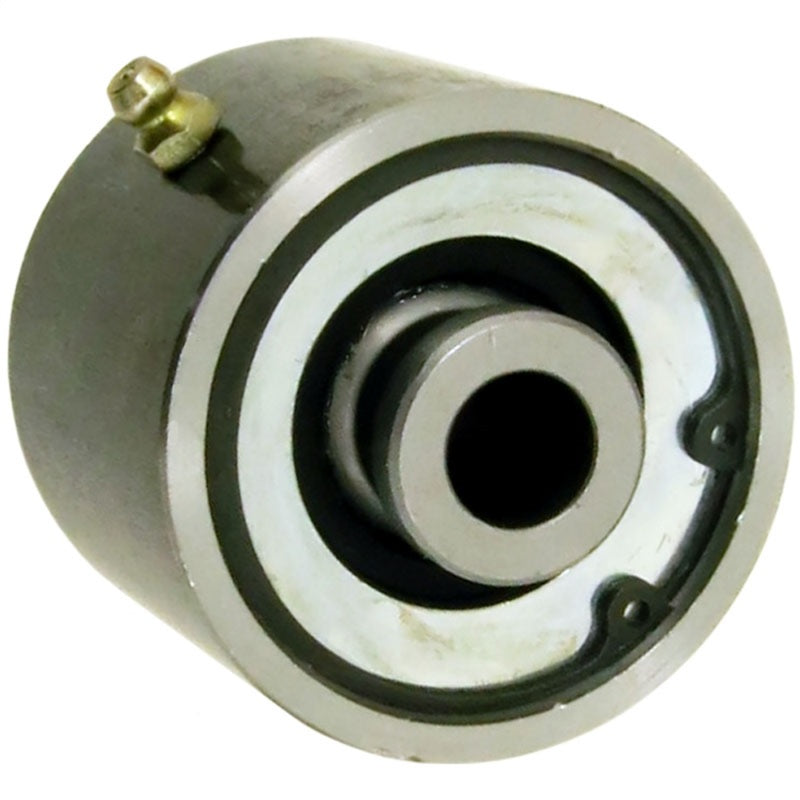

RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.625in X .640in Ball Ext. Greased

RockJocks weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.625 in. mounting width and a .640 in. thru bolt hole. Johnny Joint® Rod End; 2.5 in.; Weld-On; 2.625 in. x 0.640 in. Ball; Externally Greased; Each;

• Weld-On

The RockJock Johnny Joint Rod End (Part Number: rokCE-9110P-28) is designed for high-performance automotive suspension systems and fabrications requiring maximum flexibility and durability. Featuring a weld-on design, this joint offers 30 degrees of unrestricted movement in any direction, surpassing the typical 22 degrees found in standard heim joints. The high-density urethane bushings provide cushioning that absorbs shocks and vibrations, enhancing ride quality and component longevity. The heat-treated internal ball is cross-drilled for efficient lubrication through a grease zerk fitting, ensuring smooth operation under demanding conditions. The heavy-duty, heat-treated side washers and snap ring secure internal components, maintaining stability during intense use. The outer shell is made from .180-inch wall machined DOM tubing, which is fully weldable, making it ideal for custom fabrication projects. This specific Johnny Joint features a 2.5-inch outside diameter, a 2.625-inch mounting width, and a .640-inch thru-bolt hole, providing a robust connection point for various suspension components. Whether used in off-road vehicles, race cars, or custom builds, this joint offers superior articulation and durability. Its design allows for easy installation and maintenance, thanks to the integrated grease fitting, which facilitates regular lubrication to extend service life. Constructed to meet rigorous standards, the RockJock Johnny Joint is a reliable choice for fabricators seeking to improve suspension performance with a high-quality, weld-on rod end that combines flexibility, strength, and ease of use.

Features:

• Weld-On design for secure attachment to suspension components

• 30 degrees of unrestricted movement for enhanced articulation

• High-density urethane bushings for cushioning and vibration absorption

• Heat-treated, cross-drilled center ball for efficient lubrication

• Heavy-duty, heat-treated side washers and snap ring for internal retention

• Machined DOM tubing outer shell with .180-inch wall thickness for weldability

• Includes a grease zerk fitting for easy maintenance

• Robust dimensions with a 2.5-inch outer diameter, 2.625-inch mounting width, and .640-inch thru-bolt hole
