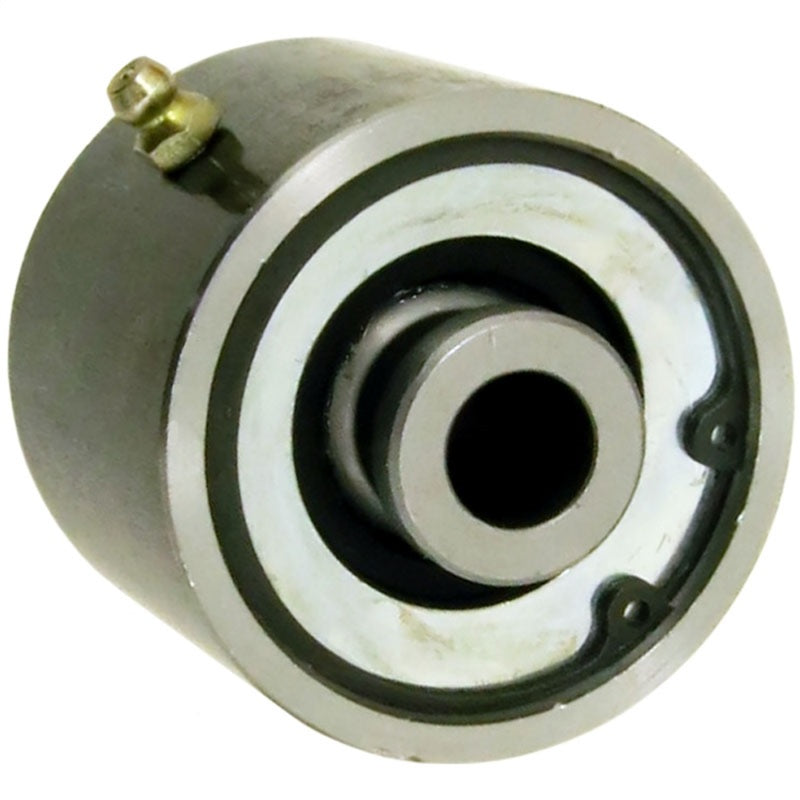

RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.625in X .562in Ball Ext. Greased

RockJocks weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.625 in. mounting width and a .5625 in. thru bolt hole. Johnny Joint® Rod End; 2.5 in.; 2.625 in. Mounting Width; Externally Greased; w/o Bolt; 0.5625 in. Thru Bolt Hole; Each;

• Zerk Fitting For External Greasing - No Bolt Incl
• Weld-On

The RockJock Johnny Joint Rod End part number rokCE-9110P is engineered for high-performance suspension systems and custom fabrication projects. Featuring a weld-on design with a 2.5-inch diameter outer shell, this joint provides superior flexibility and durability in demanding environments. Its 30-degree movement in any direction surpasses the standard 22 degrees offered by typical heim joints, enhancing articulation and overall performance. The high-density urethane bushings within the joint deliver cushioning that helps absorb shocks and vibrations, reducing stress on connected components. The heat-treated, cross-drilled center ball allows for efficient lubrication through the integrated Zerk fitting, ensuring smooth operation and longevity. The joint's outer shell is constructed from machined DOM tubing with a wall thickness of approximately 0.180 inches, providing strength and weldability. Designed with a 2.625-inch mounting width and a .5625-inch thru bolt hole, it suits a variety of custom suspension configurations. This particular Johnny Joint is externally greased, making maintenance straightforward, and is sold without the bolt, allowing for custom bolt selection. Ideal for automotive applications requiring high articulation and durability, the RockJock Johnny Joint Rod End is a reliable choice for fabricators seeking quality components that deliver consistent performance under stress.

Features:

• Weld-on design for secure attachment to custom frames or suspension components

• 30-degree unrestricted movement for enhanced articulation compared to standard heim joints

• High-density urethane bushings provide cushioning and shock absorption

• Heat-treated, cross-drilled center ball allows for efficient lubrication via Zerk fitting

• Machined DOM tubing shell with .180-inch wall thickness for added strength and weldability

• Externally greased for easy maintenance and long-lasting performance

• Designed with a 2.625-inch mounting width and .5625-inch thru bolt hole for versatile installation
