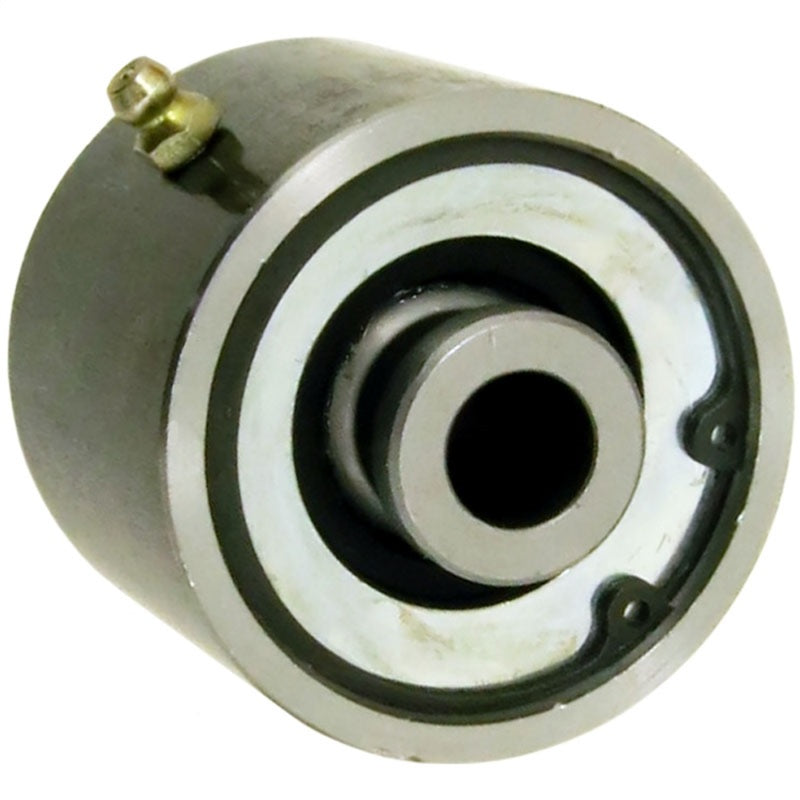

RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.590in X .718in Ball Ext. Greased

RockJocks weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.590 in. mounting width and a .718 in. thru bolt hole. Johnny Joint® Rod End; 2.5 in.; w/.718 in. X 2.590 in. Ball-Externally Greased;

The RockJock Johnny Joint Rod End (Part Number: rokCE-9110P-20) is designed for high-performance suspension and fabrication applications. Featuring a 2.5-inch outer diameter and a 2.590-inch mounting width, this weld-on joint offers exceptional flexibility with 30 degrees of unrestricted movement in any direction, surpassing standard heim joints that typically provide only 22 degrees. This increased range of motion enhances articulation and durability in demanding off-road and automotive environments. The joint's outer shell is fabricated from .180-inch wall machined DOM tubing, providing strength and weldability. A built-in zerk fitting allows for easy lubrication, ensuring smooth operation and longevity. The high-density urethane bushings encasing the inner ball provide cushioning, absorbing shocks and reducing stress on connected components. The heat-treated center ball is cross-drilled for efficient thru-bolt lubrication, which helps maintain optimal performance over time. Internally, the joint is secured with two heavy-duty, heat-treated side washers and a snap ring, ensuring reliable operation under load. This Johnny Joint rod end is ideal for fabricators and suspension system builders seeking a durable, flexible, and easy-to-maintain component that can handle rigorous use. The weldable outer shell makes installation straightforward for custom fabrication projects, while the greasable design promotes long-term performance. Suitable for various automotive and off-road applications, this joint aligns with industry standards and provides superior articulation compared to traditional heim joints, making it a valuable addition to any suspension upgrade or custom build.

Features:

• Unrestricted movement: 30 degrees in any direction for enhanced articulation

• Weld-on design: outer shell is weldable for easy installation

• High-density urethane bushings: provide cushioning and shock absorption

• Cross-drilled center ball: allows for efficient thru-bolt lubrication

• Grease fitting: facilitates easy maintenance and lubrication

• Heavy-duty internal components: heat-treated washers and snap ring for durability

• Constructed from .180-inch wall DOM tubing: offers strength and weldability

• Compatible with 2.5-inch outer diameter tubing and 2.590-inch mounting width

• Part of RockJock's high-performance suspension components
