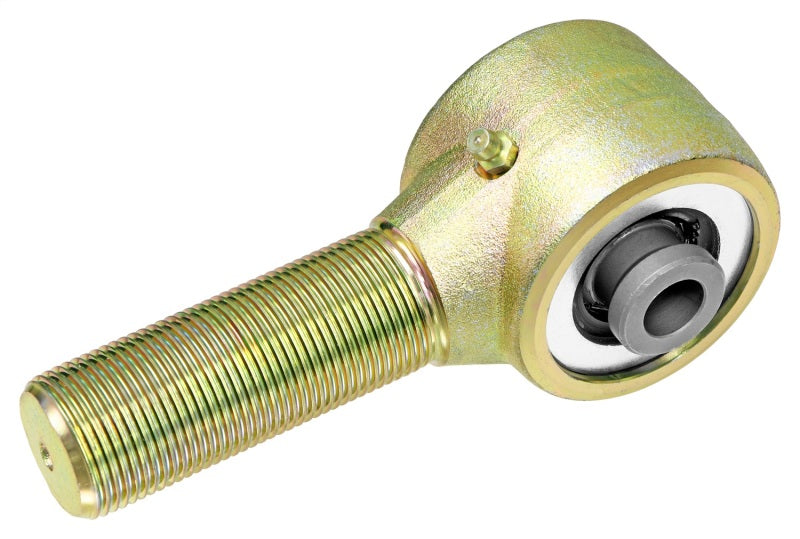

RockJock Johnny Joint Rod End 2 1/2in Forged 2.812in X .750in Ball 1 1/4in-12 RH Thread Shank

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.812 in. mounting width ball with a .750 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2.5 in.; w/1.25 in. RH Thread/.750 Hole X 2.812 Ball;

• Forged Johnny Joint®

The RockJock Johnny Joint forged rod end is designed for high-performance suspension systems and fabrication applications, offering superior flexibility and durability. With a 2.5-inch diameter, this joint provides 30 degrees of unrestricted movement in any direction, significantly more than standard heim joints, enhancing articulation and control for off-road and custom builds. Its high-strength forged construction ensures reliable performance under demanding conditions. The inclusion of a Zerk fitting allows for easy lubrication, ensuring smooth operation and longevity of the joint. The internal components feature heat-treated, cross-drilled center balls for effective thru-bolt lubrication, supported by heavy-duty side washers and a snap ring to retain internal parts securely. The 2 1/4-inch length with a 1 1/4-inch-12 right-hand threaded shank facilitates straightforward installation into various suspension setups. Finished in durable gold zinc plating, this Johnny Joint resists corrosion and maintains its appearance over time, making it an ideal choice for off-road enthusiasts and fabricators seeking a reliable, high-performance rod end. Whether used in custom suspension builds or fabrication projects, the RockJock Johnny Joint ensures smooth operation, increased articulation, and long-term durability in challenging environments.

Features:

• Forged Johnny Joint construction for strength and durability

• 30 degrees of unrestricted movement for enhanced articulation

• High-density urethane bushings provide cushioning not found in heim joints

• Heat-treated, cross-drilled center balls for efficient thru-bolt lubrication

• Includes Zerk fitting for easy greasing

• Heavy-duty, heat-treated side washers and snap ring for internal retention

• Gold zinc plating for corrosion resistance and aesthetic appeal

• Compatible with 1 1/4-inch-12 right-hand threads on the shank

• Designed with a 2.812-inch diameter ball for secure mounting
