RockJock Johnny Joint Rod End 2 1/2in Forged 2.585in X .562in Ball 1 1/4in-12 RH Thread Shank

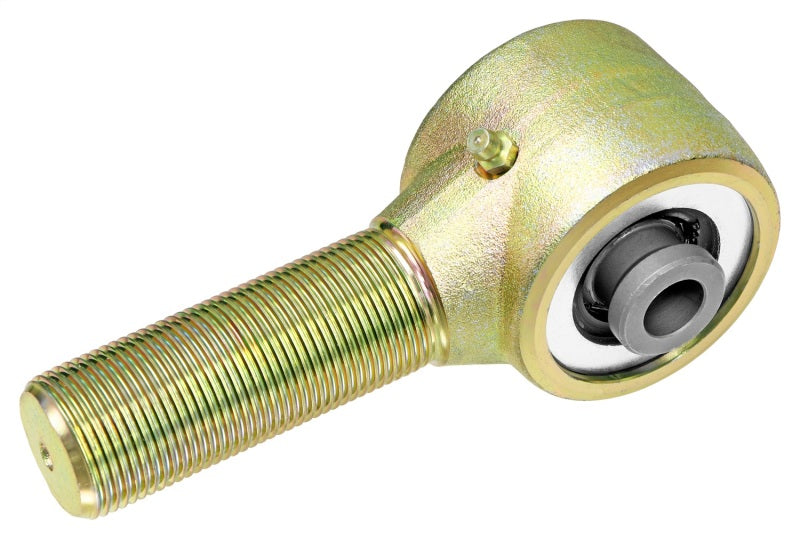

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.585 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2.5 in.; 2.585 in. x 0.562 in. Ball; 1.25 in.-12 RH Threaded Shank; Externally Greased; Each;

• Zerk Fitting For External Greasing - No Bolt Incl

The RockJock Johnny Joint forged rod end is designed for high-performance suspension and fabrication applications requiring maximum articulation and durability. With a 2.5-inch diameter, this joint offers 30 degrees of unrestricted movement in any direction, significantly exceeding the 22 degrees typical of standard heim joints, providing enhanced flexibility for complex suspension geometries. Constructed with heat-treated center balls and cross-drilled for efficient lubrication, it ensures long-lasting performance under demanding conditions. The high-density urethane bushings inside the joint absorb shocks and vibrations, offering cushioning that traditional heim joints cannot match. The gold zinc plating provides corrosion resistance, making this rod end suitable for off-road, racing, and heavy-duty automotive applications.
