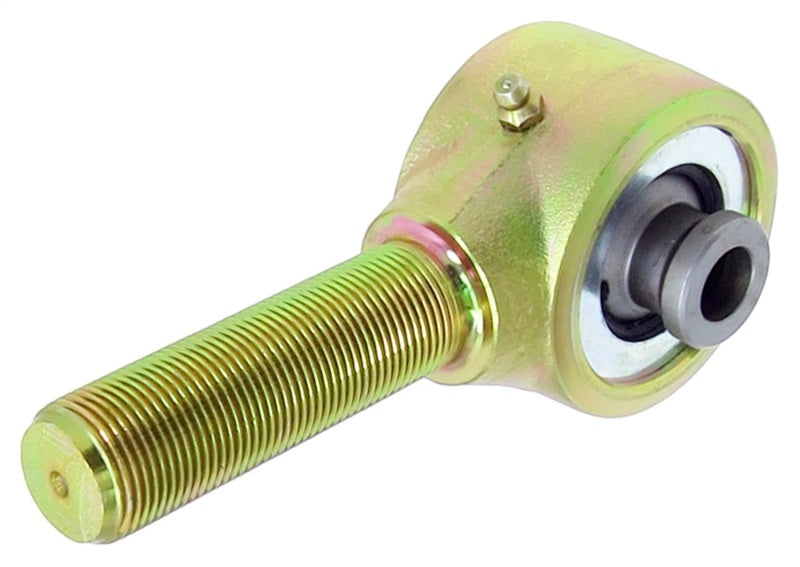

RockJock Johnny Joint Rod End 2 1/2in Forged 2.365in X .562in Ball 1in-14 RH Thread Ext. Greased

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 in.-14 right hand threads on the shank, and a 2.365 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2.5 in. Forged Joint; w/1 in. Right Hand Thread; 0.5625 in. X 2.365 in. Ball;

• Narrow Forged Johnny Joint®

The RockJock Johnny Joint Rod End offers superior flexibility and durability for custom suspension systems and fabrication projects. Featuring a 2.5-inch diameter forged construction, this joint provides an impressive 40 degrees of unrestricted movement in any direction, significantly surpassing the 22 degrees typical of standard heim joints. This enhanced range of motion improves handling and articulation, making it ideal for off-road and performance applications. The joint is finished with a corrosion-resistant gold zinc plating, ensuring longevity in demanding environments. Its design incorporates high-density urethane bushings around the inner ball, providing cushioning that reduces stress and vibration transfer, unlike traditional heim joints that lack this feature. The high-strength, heat-treated center ball is cross-drilled for easy lubrication through the integrated Zerk fitting, facilitating maintenance and prolonging component life. The internal components are securely retained with two heavy-duty, heat-treated side washers and a snap ring, ensuring consistent performance under load. The 1-inch-14 right-hand threaded shank measures approximately 2 1/4 inches and is designed for easy installation. The joint's mounting width measures approximately 2.365 inches, with a thru-bolt hole diameter of 0.562 inches, providing versatility and compatibility with various suspension setups. Crafted for demanding automotive and off-road applications, this Johnny Joint rod end combines strength, flexibility, and ease of maintenance to enhance your vehicle's suspension performance.

Features:

• High-flexibility forged Johnny Joint with 40 degrees of unrestricted movement

• Corrosion-resistant gold zinc plating for durability

• High-density urethane bushings for cushioning and vibration reduction

• Heat-treated, cross-drilled center ball for efficient lubrication via Zerk fitting

• Heavy-duty, heat-treated side washers and snap ring for internal retention

• Includes 1-inch-14 right-hand thread shank with approximately 2 1/4 inches length

• Mounting width of approximately 2.365 inches with 0.562-inch thru bolt hole

• Designed for automotive and suspension applications requiring high articulation
