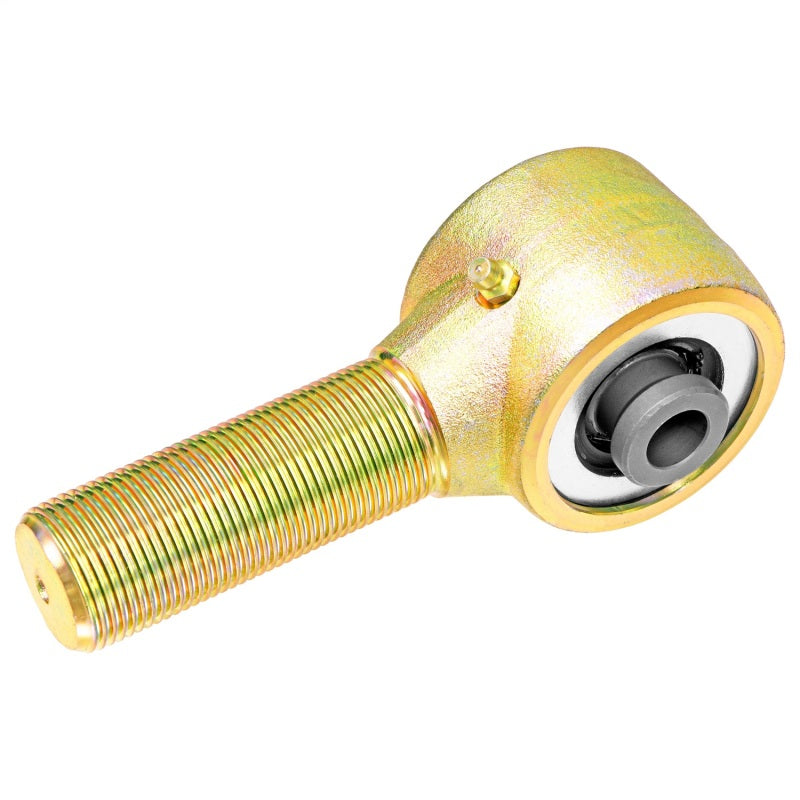

RockJock Johnny Joint 2 1/2in Forged 2.440in X .468in Offset Ball 1 1/4in-12 RH Thread Shank

RockJocks forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.440 in. mounting width offset ball with a .468 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2.5 in.; 2.440 in. x 0.468 in. Offset Ball; 1.25 in.-12 RH Threaded Shank; Externally Greased; Each;

• Zerk Fitting For External Greasing - No Bolt Incl

The RockJock Johnny Joint forged rod end, part CE-9114-10, is designed for fabricators and suspension system builders who need durable articulation and controlled movement. Its forged construction provides up to 30 degrees of unrestricted movement in any direction, exceeding the typical 22-degree range of a common heim joint. The joint is suitable for demanding automotive suspension applications where flexibility, strength, and serviceability are essential.

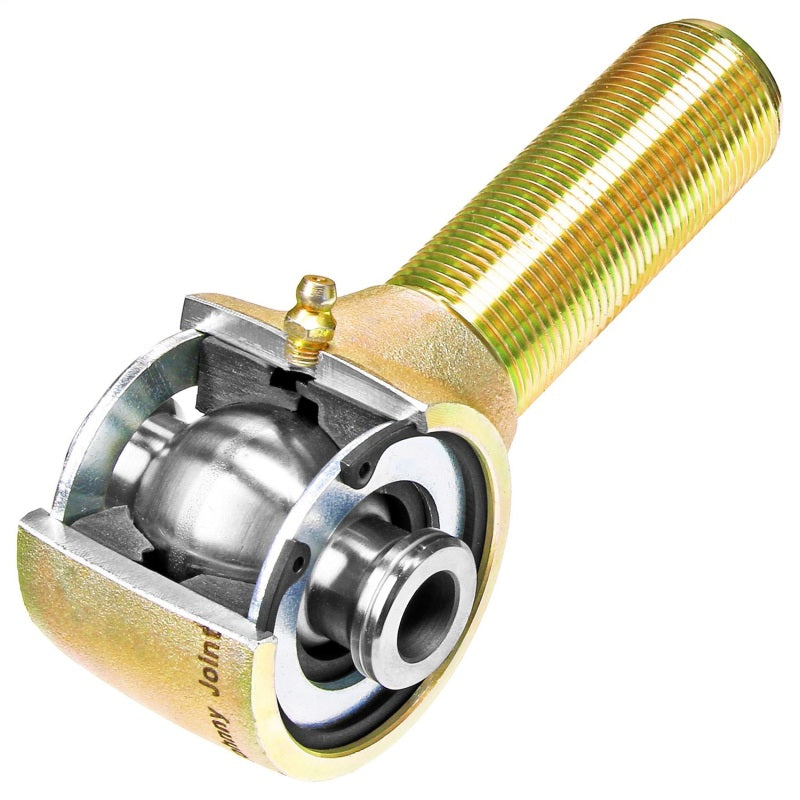

A high-density urethane bushing encases the heat-treated center ball to provide cushioning that a traditional heim joint cannot offer. The center ball is cross-drilled for through-bolt lubrication, while two heavy-duty, heat-treated side washers and a snap ring securely retain the joint internals. The offset ball features a 0.468-inch through-bolt hole and a 2.440-inch mounting width for installation in compatible suspension systems.
This RockJock Johnny Joint includes a grease fitting for external lubrication and features 2.25 inches of 1.25-inch-12 right-hand threads on the shank. The gold zinc-plated finish adds corrosion resistance and a professional appearance. The grease fitting allows routine maintenance without disassembling the joint, helping support long-term performance in off-road and custom suspension environments. Bolt hardware is not included.

Features:

• Forged construction: Built for fabricators and high-demand suspension applications.

• Articulation: Provides 30 degrees of unrestricted movement in any direction.

• Cushioning: High-density urethane bushings surround the inner ball for controlled movement and vibration isolation.

• Center ball: Heat-treated and cross-drilled for through-bolt lubrication.

• Retention system: Includes two heavy-duty, heat-treated side washers and a snap ring.

• Threaded shank: Features 1.25-inch-12 right-hand threads.

• Offset ball: Includes a 0.468-inch through-bolt hole and 2.440-inch mounting width.

• Lubrication: External zerk fitting supports convenient greasing.

• Finish: Gold zinc plating helps protect against corrosion.

• Hardware: Bolt is not included.
