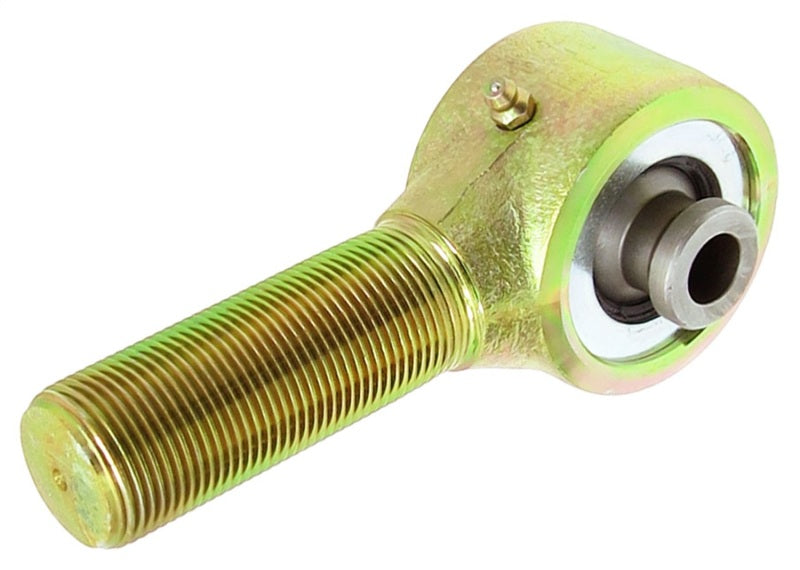

RockJock Johnny Joint 2 1/2in Forged 2.365in X .562in Offset Ball 1 1/4in-12 RH Thread Shank

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.365 in. mounting width offset ball with a .562 in. thru bolt hole. Finished in gold zinc plating. Johnny Joint® Rod End; 2.5 in. Forged Joint; w/1.25 in. Right Hand Threaded Stud; .562 in. X 2.365 in. Offset Ball;

• Narrow Forged Johnny Joint®

The RockJock Johnny Joint 2 1/2 inch forged rod end is designed for high-performance suspension systems and engineering applications requiring exceptional articulation. Featuring a narrow forged construction, this joint provides up to 40 degrees of unrestricted movement in any direction, significantly surpassing the typical 22 degrees offered by standard heim joints. This increased flexibility enhances vehicle handling and durability, especially in demanding off-road and racing environments. The high-density urethane bushing surrounding the inner ball provides cushioning that traditional heim joints cannot match, reducing stress and wear on connected components. The heat-treated center ball is cross-drilled for efficient lubrication through the included zerk fitting, ensuring smooth operation over time and minimizing maintenance needs. The internal components are securely retained with heavy-duty, heat-treated side washers and a snap ring, adding reliability and longevity to the joint. Finished in durable gold zinc plating, this Johnny Joint offers corrosion resistance, making it suitable for various environmental conditions. The joint's specifications include a 2 1/4 inch length with a 1 1/4 inch-12 right-hand threaded shank, a .562 inch thru-bolt hole, and a 2.365 inch offset ball, providing versatility for custom fabrication and suspension upgrades. This part is an essential component for fabricators and suspension builders seeking robust, high-movement joints designed for heavy-duty applications. With its precision engineering and premium materials, the RockJock Johnny Joint ensures reliable performance and ease of installation in a variety of automotive and off-road projects.

Features:

• Narrow forged Johnny Joint for optimized strength and articulation

• 40 degrees of unrestricted movement in any direction for superior flexibility

• High-density urethane bushing provides cushioning absent in standard heim joints

• Heat-treated, cross-drilled center ball for efficient lubrication via Zerk fitting

• Heavy-duty side washers and snap ring for internal component retention and durability

• Gold zinc plating offers corrosion resistance and enhanced longevity

• Includes a 1 1/4 inch-12 right-hand threaded shank for secure attachment

• Offset ball with a .562 inch thru-bolt hole for versatile mounting options

• Designed for high-performance suspension and fabrication applications
