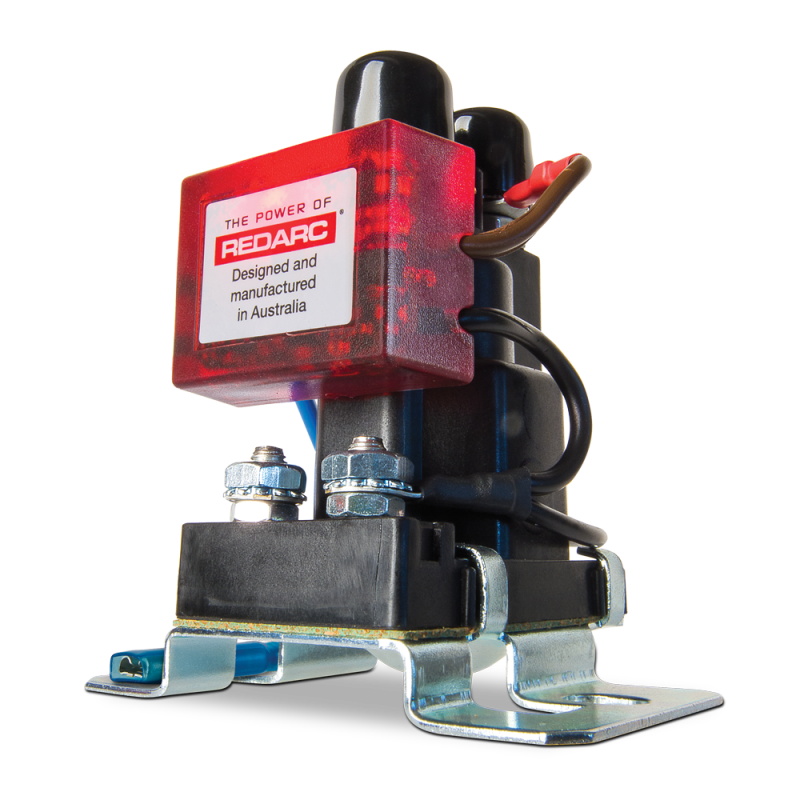

REDARC Dual Sensing Smart Start Battery Isolator - 12V 100A

The REDARC Smart Start SBI12D is a microprocessor-controlled dual battery isolator used in a dual battery system. It's manufactured for use as a solenoid priority system to protect the start battery from excessive discharge while allowing the auxiliary battery to supply non-essential loads. The SBI12D provides 12 volt DC incorporating 100A of continuous ratings and is designed for heavy-duty operations. The dual sensing model is compact and easy to install. It isolates the start and auxiliary battery in a system where the auxiliary battery may be charged by an external source. The SBI12D also allows the start battery to be charged by the external source after the auxiliary battery reaches 13.2V. The power saving technology includes fault detection and LED indication of operation to warn users of voltage drops, over-voltage, or excessive current draw conditions. The SBI12D has components that prevent the solenoid from generating high voltage transients. It's better than a diode battery isolator based on the the voltage drop associated with a diode type isolation. The SBI12D has full surge protection and is used primarily in 4WD and commercial vehicles. Choose the SBI12D for a safe way to charge an auxiliary battery. The SBI range manages battery charge for your secondary battery banks while on the move. The SBI12D provides 12 volt DC incorporating 100A of continuous ratings and is designed for heavy-duty operations.

• Overmold design, Compact size and easy installation, Silver contacts for longer life and suitable for marine applications, Power saving technology. Fault indication, Fully surge protected
• Power-saving technology that provides cost-effective protection for the primary battery in a safe and convenient way by using the alternator to charge the auxiliary battery.
• Protect the starter battery's excessive discharge, allowing your auxiliary battery to power your accessories.

The REDARC Smart Start SBI12D is a microprocessor-controlled dual-sensing battery isolator designed for 12-volt dual-battery systems. With a 100-amp continuous rating, it helps protect the vehicle’s starting battery from excessive discharge while allowing an auxiliary battery to power non-essential accessories. This heavy-duty isolator is well suited for 4WDs, commercial vehicles, powersports applications, and marine installations where dependable battery management is essential.
The SBI12D uses smart voltage sensing to connect and isolate batteries automatically. It allows the alternator to charge the auxiliary battery while driving and can also permit the starting battery to receive charge from an external source after the auxiliary battery reaches the required voltage. Its dual-sensing operation provides greater flexibility than a single-sensing isolator, especially in systems that use solar chargers, shore power, or other external charging equipment.
The compact overmolded design supports straightforward installation and reliable operation in demanding environments. Silver contacts help promote long service life, while built-in surge protection helps prevent damaging voltage transients from the solenoid. Power-saving technology reduces unnecessary energy consumption, and integrated LED fault indication alerts users to conditions such as voltage drops, over-voltage, or excessive current draw. By avoiding the voltage drop associated with diode-style isolators, the SBI12D helps deliver efficient charging performance for auxiliary battery banks.
Choose the REDARC Smart Start SBI12D for an effective way to manage secondary battery charging while protecting the primary starting battery. Its automatic operation, dual-voltage sensing, fault indication, and heavy-duty construction make it a practical solution for mobile accessory power systems.

Features:

• 12-volt DC operation with a 100-amp continuous rating

• Dual-sensing functionality allows charging from the alternator or an external source

• Protects the starting battery from excessive discharge

• Allows the auxiliary battery to power non-essential accessories

• Compact overmolded design for convenient installation

• Silver contacts support long service life and marine suitability

• Power-saving technology helps reduce energy consumption

• LED fault indication alerts users to voltage and current conditions

• Fully surge-protected solenoid design helps prevent voltage transients

• Suitable for 4WDs, commercial vehicles, powersports, and marine applications
