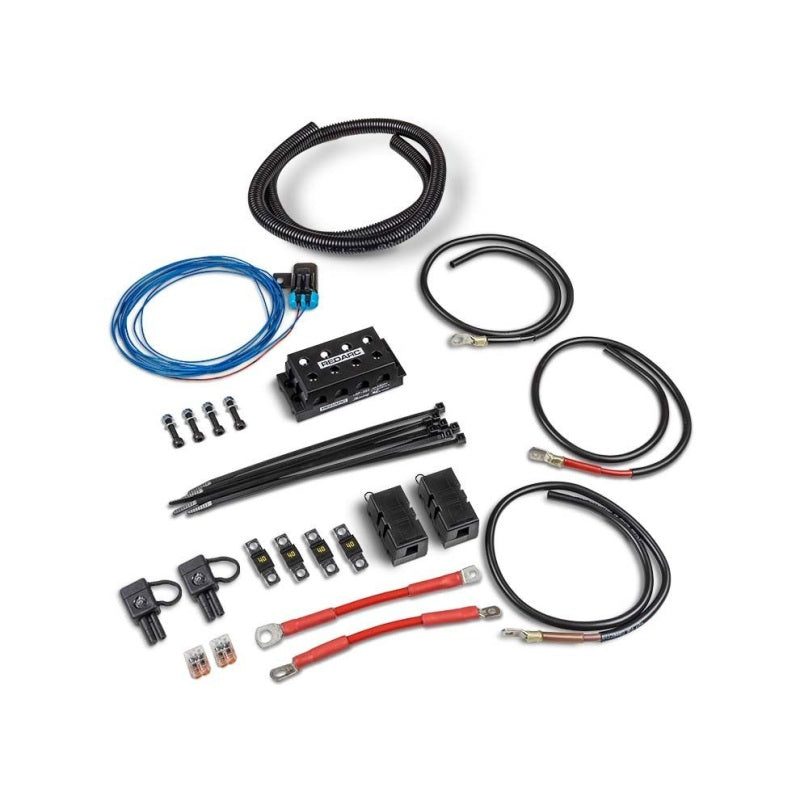

REDARC BCDC Side by Side Engine Bay Wiring Kit - 25A

Suitable for BCDC1220, and BCDC1225D, the BCDCWK-001 BCDC Wiring Kit has been designed to facilitate easy installation of a REDARC BCDC DC to DC Battery charger when the start battery and auxiliary battery are in close proximity within the engine bay (less than 2? apart). This kit contains all the cables, fuses, fuse holders and connectors required to install the BCDC between the batteries. The cables are even pre-crimped on one end, and through use of the supplied terminal block, the other end of the cables can be trimmed to length to suit the specific installation. The Auxiliary Battery ground cable and solar to Anderson cable are sold separately. This engine bay specific kit is designed to suit the installation of a 25amp BCDC DC to DC charger where the batteries are located in close proximity.

• All required cables, fuses, fuse holders and connectors included

The REDARC BCDCWK-001 BCDC Engine Bay Wiring Kit provides the essential wiring components needed to install a REDARC BCDC1220 or BCDC1225D DC to DC battery charger when the start battery and auxiliary battery are positioned close together in the engine bay. Designed for installations where the batteries are less than 2 feet apart, this kit helps simplify the connection process for side-by-side and other powersports applications.
The kit includes the required cables, fuses, fuse holders, connectors, and terminal block for connecting the BCDC charger between the start and auxiliary batteries. The cables are pre-crimped on one end, while the opposite ends can be trimmed to the required length and secured using the supplied terminal block. This design allows the wiring to be adapted to the specific vehicle and battery layout without requiring additional cable assembly components.
Engine bay specific, the REDARC BCDCWK-001 is intended for use with a 25-amp BCDC DC to DC charger and nearby battery locations. The auxiliary battery ground cable and solar-to-Anderson cable are sold separately, allowing installers to select additional wiring based on the complete charging system configuration. Verify charger compatibility and cable routing before installation, and follow REDARC installation instructions for proper fuse placement and electrical connections.

Features:

• Compatibility: Designed for REDARC BCDC1220 and BCDC1225D DC to DC battery chargers

• Application: Suitable for 25-amp BCDC charger installations in engine bays

• Installation Range: Intended for start and auxiliary batteries located less than 2 feet apart

• Included Components: Cables, fuses, fuse holders, connectors, and terminal block

• Cable Design: Cables are pre-crimped on one end and can be trimmed to fit the installation

• System Note: Auxiliary battery ground cable and solar-to-Anderson cable are sold separately
