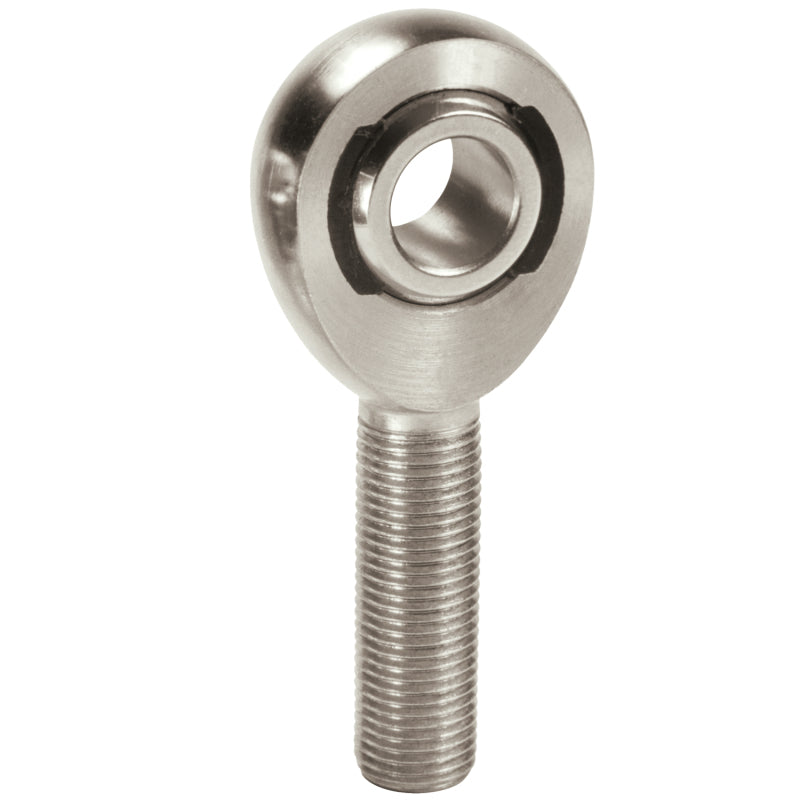

QA1 X Series Endura Rod End - Male/Right Hand - .625in Bore x 3/4-16 - Alloy Steel

X Series loader slot rod end. Male mounting with a 5/8" bore and 3/4-16 right hand threads. For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.

• Guaranteed strength, durability and quality champions demand
• Rod ends for every motorsport need
• Precise tolerances

The QA1 X Series XM Chromoly Steel male rod end is designed for demanding automotive and motorsport applications, including 4-link and ladder bar suspension systems. Part number qapXMR10-12 features a 5/8-inch bore, 3/4-16 right-hand threads, and a male mounting configuration for dependable installation and precise suspension articulation.
Built for strength and durability, this rod end uses a heat-treated chromoly steel body with a protective corrosion-resistant coating. The ball is manufactured from 52100 bearing steel, then heat treated, hard chrome plated, and precision ground for smooth, reliable movement. Metal-to-metal support helps the rod end withstand heavy shock loads, while increased cross-sectional thickness provides greater tensile strength for demanding performance applications.
The nylon and PTFE injection-molded race is self-lubricating and self-sealing to help keep dirt and debris away from the bearing surface. This design reduces maintenance requirements while supporting consistent operation in harsh environments. QA1 XM Series rod ends combine precise tolerances, motorsport-grade construction, and reliable performance for builders who require durable suspension components. Prop 65 warning applies.

Features:

• Configuration: Male rod end with right-hand threads

• Bore Size: 5/8 inch

• Thread Size: 3/4-16

• Material: Heat-treated chromoly steel body with protective corrosion-resistant coating

• Bearing Ball: Heat-treated, hard chrome-plated, precision-ground 52100 bearing steel

• Race: Self-sealing, self-lubricating nylon and PTFE injection-molded race

• Load Support: Metal-to-metal support for heavy shock loads

• Strength: Increased cross-sectional thickness for greater tensile strength

• Application: Suitable for 4-link, ladder bar, and other motorsport suspension systems

• Brand: QA1

• Part Number: qapXMR10-12
