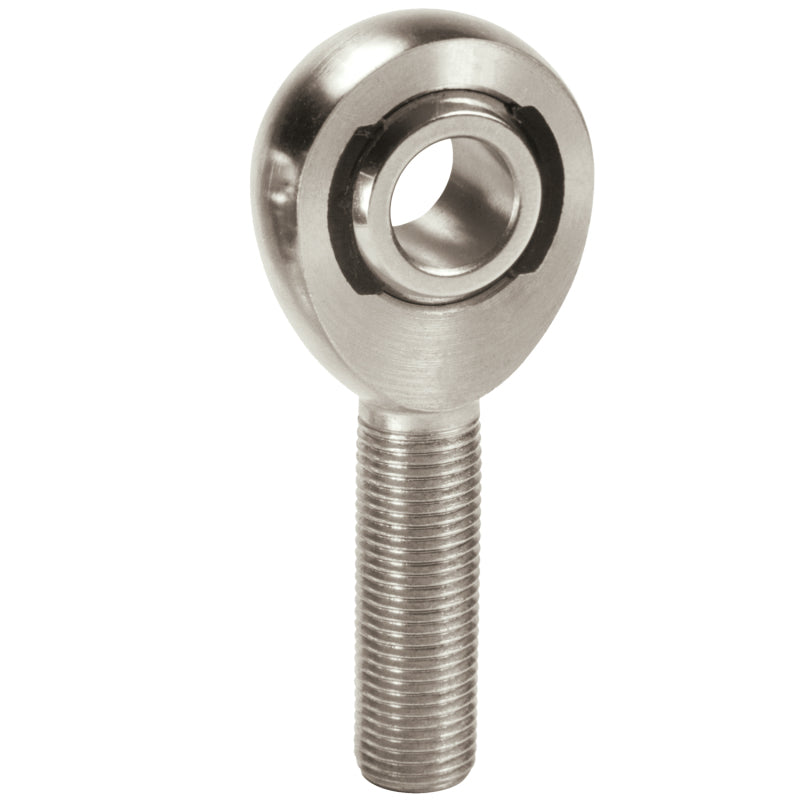

QA1 X Series Endura Rod End - Male/Left Hand - .625in Bore x 3/4-16 - Alloy Steel

X Series loader slot rod end. Male mounting with a 5/8" bore and 3/4-16 left hand threads. For the ultimate in performance rod ends, look no further than QA1's XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out. The ball is made of 52100 bearing steel that has been heat treated, hard chrome plated and precision ground. The PTFE race is self-lubricating and self-sealing, and the body is made from heat treated chromoly steel that has a protective coating for corrosion resistance. EXCLUSIVE FEATURES: Metal to metal support for heavy shock loads and increased cross-sectional thickness for greater tensile strength.

• Guaranteed strength, durability and quality champions demand
• Rod ends for every motorsport need
• Precise tolerances

The QA1 XM Chromoly Steel Rod End, part number QAPXML10-12, is a heavy-duty male rod end designed for demanding automotive and motorsports applications. This X Series loader slot rod end features a 5/8-inch bore and 3/4-16 left-hand threads, making it a practical choice for 4-link systems, ladder bars, suspension assemblies, and other applications requiring reliable articulation and strong mounting performance.
The rod end body is manufactured from heat-treated chromoly steel and finished with a protective coating for corrosion resistance. Its ball is made from 52100 bearing steel, then heat treated, hard chrome plated, and precision ground for durability and smooth operation. The Nylon/PTFE injection-molded race provides self-sealing and self-lubricating performance, helping keep dirt and debris away from the bearing surfaces while reducing maintenance requirements.
Exclusive metal-to-metal support helps the QA1 XM Series handle heavy shock loads, while increased cross-sectional thickness improves tensile strength. Precise tolerances support consistent fit and dependable operation in performance suspension and chassis applications. QA1 designs rod ends for a wide range of motorsports needs, delivering the strength, durability, and quality expected in competition-oriented equipment. This automotive rod end is sold individually and is identified by QA1 part number QAPXML10-12.

Features:

• Brand: QA1

• Part Number: QAPXML10-12

• Series: XM Chromoly Steel Series

• Application: X Series loader slot rod end

• Mounting Style: Male

• Bore Size: 5/8-inch

• Thread Type: 3/4-16 left-hand thread

• Construction: Heat-treated chromoly steel body

• Ball Material: Heat-treated, hard chrome-plated 52100 bearing steel

• Race Material: Nylon/PTFE injection-molded race

• Operation: Self-sealing and self-lubricating

• Performance: Metal-to-metal support for heavy shock loads

• Strength: Increased cross-sectional thickness for greater tensile strength

• Quality: Precise tolerances for consistent fit and operation
