QA1 67-69 GM F-Body Rear Four Link Suspension System

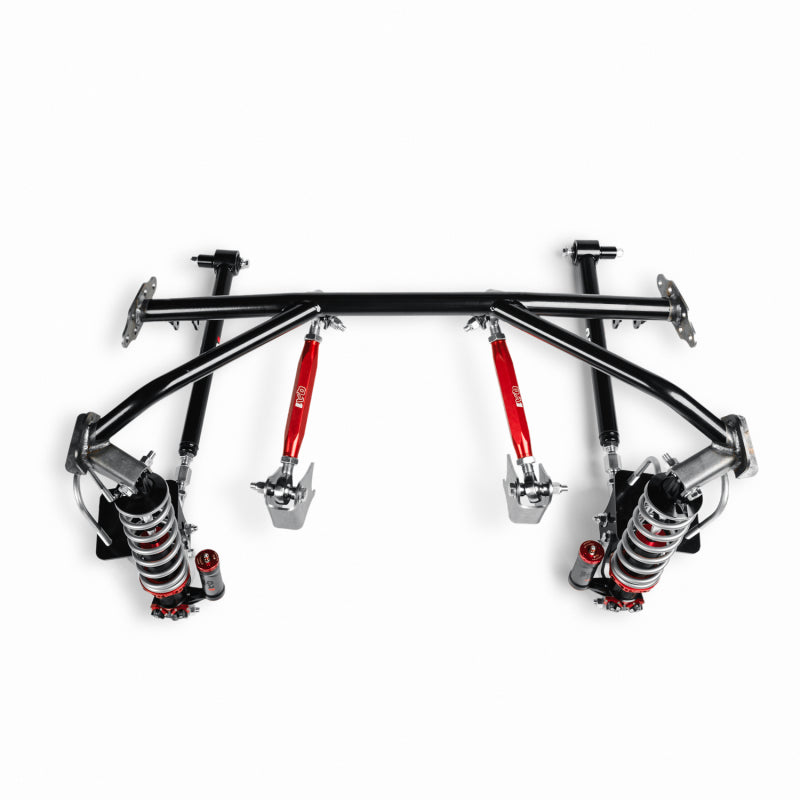

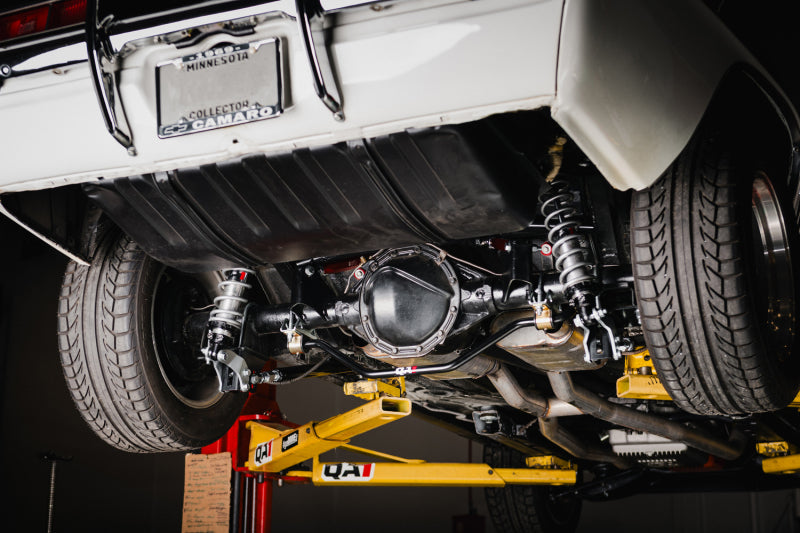

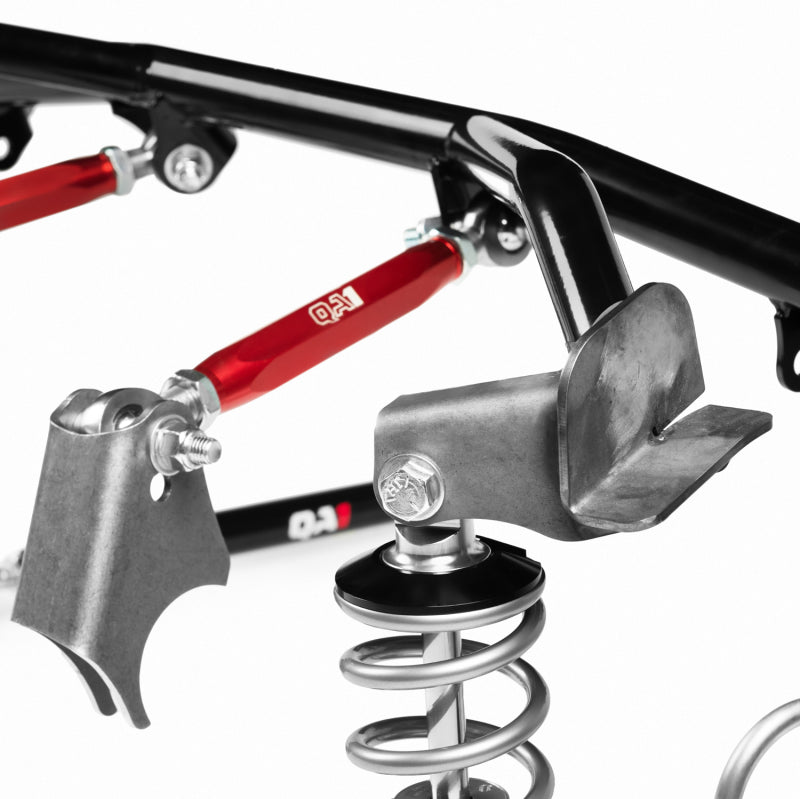

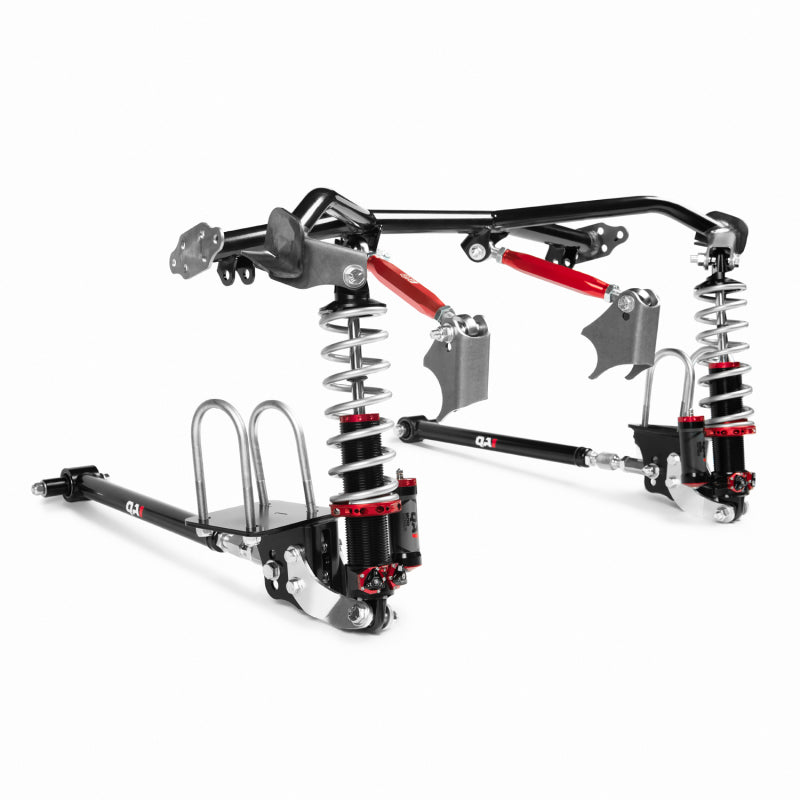

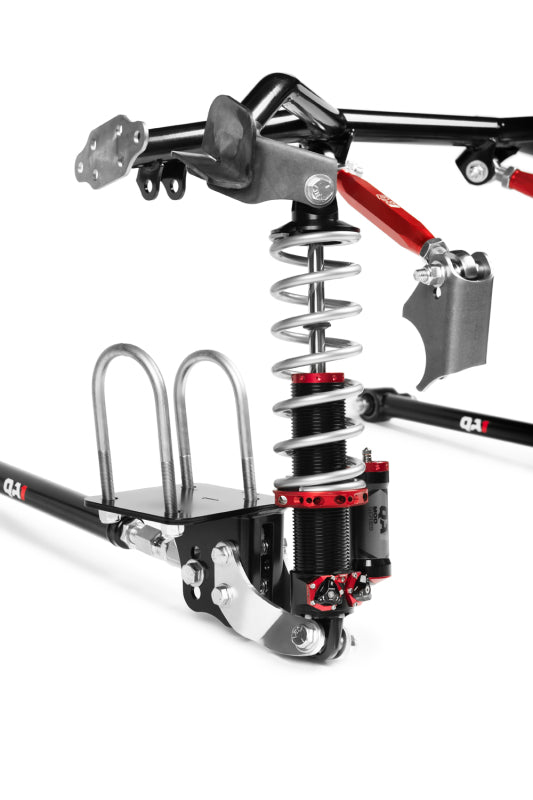

QA1 R356-170, Four Link Kit, 67-69 Camaro and Firebird, MOD Series Shocks Product Overview Ditch those clunky leaf springs and take control of your F-body with QA1's coilovers and triangulated 4-link. This upgrade improves ride quality, enhances handling performance, and enables you to dial in the perfect stance. With the added benefit of accommodating wider wheels and tires, this kit is the ideal solution for your car. Achieve the Perfect Stance. Leaf springs limit your ability to achieve the perfect stance on your Camaro or Firebird. Upgrading to QA1's coilovers and a tubular 4-link provides +2 to -3 inches of ride height adjustability, letting you dial in exactly the look you want. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, this system offers generous clearance for up to 11-inch-wide wheels on '67-'68 F-bodies and 12-inch-wide wheels and 335 tires on your 69. This results in a significantly more aggressive stance and improved traction and performance. Note: Achieving maximum wheel and tire width will require mini tubs. Ultimate Handling and Stability From twisty back roads to competitive track days, QA1's 4-link design with MOD Series shocks is the perfect solution for your F-body. 4-way adjustable valving offers independent tunability of both high and low speed compression and rebound. Easy, Installation & Adjustment Thoughtful design meets effortless installation requiring minimal welding. You'll experience a painless installation and setup process, where adjusting ride height, pinion angle, or wheelbase is as simple as a few tweaks – no link removal required. No modifications to floor pan required. Note – Welding required Made in the USA QA1 suspension is proudly made in Lakeville, Minnesota. Fitment Notes Wheel and tire fitment should be verified on the vehicle Welding Required Includes Spanner Wrench QA1 Subframe Connectors strongly recommended May require Exhaust Modification

• Enhance handling and stability
• Dial in the perfect stance
• Fit wider wheels and tires
• Best-in-class warranty
• Improve ride quality
• Made in the USA

Upgrade your classic GM F-body with the QA1 R356-170 Four Link Suspension Kit, designed specifically for 1967-1969 Chevrolet Camaros and Pontiac Firebirds. This comprehensive kit replaces traditional leaf springs with a coilover and triangulated 4-link setup, offering superior handling, ride quality, and customization options. The MOD Series shocks included feature 4-way adjustable valving, allowing independent tuning of high and low speed compression and rebound to optimize performance for street or track use. Installation is straightforward with minimal welding required, and adjustments to ride height, pinion angle, or wheelbase can be made easily without removing the links, providing a tailored driving experience.

Designed to accommodate wider wheels and tires, this system works with both standard and mini-tubs, delivering up to 11-inch-wide wheels on '67-'68 models and 12-inch-wide wheels with 335 tires on the '69 Camaro. Achieving a more aggressive stance and improved traction is simple with the kit’s adjustable ride height, which offers between +2 to -3 inches of clearance. The kit also enhances stability during spirited driving and competitive events, making it ideal for enthusiasts seeking performance and aesthetics.

Constructed with quality components made in the USA, the QA1 suspension kit is built to last and backed by a best-in-class warranty. It includes all necessary hardware and a spanner wrench for easy adjustments, though some minor modifications like exhaust adjustments and welding are required during installation. For optimal results, QA1's subframe connectors are recommended. This suspension upgrade not only transforms the handling characteristics of your F-body but also provides the flexibility to dial in the perfect stance and performance tailored to your driving style.

Features:

• Provides +2 to -3 inches of ride height adjustability for a customized stance

• Includes MOD Series shocks with 4-way adjustable valving for independent tuning of compression and rebound

• Designed to fit wider wheels and tires up to 11 inches on '67-'68 models and 12 inches with 335 tires on '69 models

• Easy installation requiring minimal welding, with no modifications to the floor pan

• Enhances handling, stability, and ride quality for street and track use

• Made in the USA with high-quality components and backed by a comprehensive warranty

• Includes hardware and a spanner wrench for straightforward adjustments

• Compatible with both standard and mini-tubs, with some vehicle modifications required

Fitment:
Chevrolet Camaro Base 1967
Chevrolet Camaro Base 1968
Chevrolet Camaro Base 1969
Chevrolet Camaro RS 1967
Chevrolet Camaro RS 1968
Chevrolet Camaro RS 1969
Chevrolet Camaro SS 1967
Chevrolet Camaro SS 1968
Chevrolet Camaro SS 1969
Chevrolet Camaro Z28 1967
Chevrolet Camaro Z28 1968
Chevrolet Camaro Z28 1969
Pontiac Firebird 326 1967
Pontiac Firebird 350 1968
Pontiac Firebird 350 1969
Pontiac Firebird 350 HO 1969
Pontiac Firebird 400 1967
Pontiac Firebird 400 1968
Pontiac Firebird 400 1969
Pontiac Firebird Base 1967
Pontiac Firebird Base 1968
Pontiac Firebird Base 1969
Pontiac Firebird HO 1967
Pontiac Firebird HO 1968
Pontiac Firebird Sprint 1967
Pontiac Firebird Sprint 1968
Pontiac Firebird Sprint 1969
Pontiac Firebird Trans Am 1969
