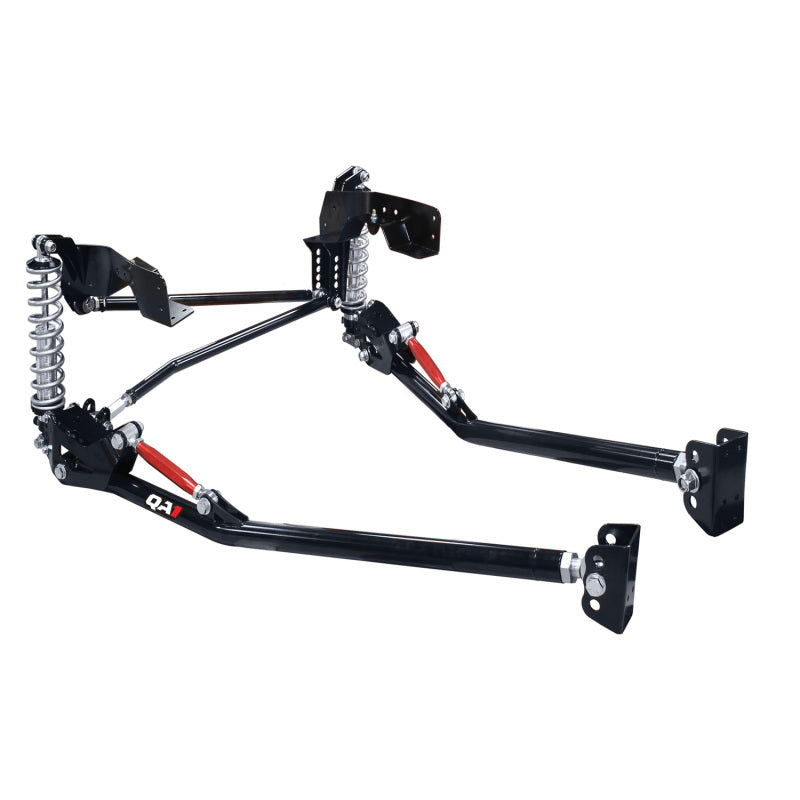

QA1 63-72 Chevrolet C10 Rear Suspension Conversion System - Medium - Double Adjustable (200lbs/in)

Rear suspension system with up to 6" drop for 63-72 C10 trucks. Includes adjustable tubular truck arms, double adjustable shocks, high travel springs, C-notch bracket, panhard bar, and brace bar. QA1's C10 bolt-on rear suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. This system offers up to 6" of total drop and integrates adjustability into multiple areas so you can truly fine-tune the geometry to create the perfect performance after lowering. , , By converting the coil-spring rear suspension to adjustable coil-overs, the ride height for each corner can be altered for that perfect stance. From there, the tubular steel truck arms feature an integrated pinion angle adjustment, eliminating the need for angled shims and allowing the wheelbase to be set to exact specifications. The adjustable panhard bar keeps the rear centered for more predictable cornering, and the multiple mounting locations correct roll center geometry based on the amount of drop. The coil-overs are also relocated to the outside of the frame rail, closer to the wheel, for better cornering stability and allowing room for popular aftermarket rear-mounted fuel tanks. In addition to being easily bolted on, the entire rear system can be installed without needing to remove the bed of the truck.

• QA1 uniquely engineered to enhance the performance of your vehicle
• Adjustable shock valving options for all driving styles
• Ride height adjustability
• Best-in-class warranty
• Easy bolt-in install
• Made in the USA

Upgrade the rear suspension of your 1963-1972 Chevrolet C10 with the QA1 R210-200 rear suspension conversion system. Designed for trucks originally equipped with a coil-spring rear suspension, this bolt-on system converts the rear setup to adjustable coil-overs and provides up to 6 inches of total drop. The package includes adjustable tubular truck arms, medium-rate 200 lb/in coil-over springs, double-adjustable shocks, a C-notch bracket, adjustable panhard bar, and brace bar for a complete performance-focused installation.
The QA1 R210-200 system provides extensive adjustment capability for dialing in ride height, handling, and suspension geometry. Adjustable coil-overs allow each corner of the truck to be set independently for a precise stance, while the tubular truck arms feature integrated pinion angle adjustment. This design eliminates the need for angled shims and allows the wheelbase to be set accurately. The adjustable panhard bar helps keep the rear axle centered, and multiple mounting positions help correct roll center geometry according to the amount of drop.
For improved stability, the coil-overs relocate to the outside of the frame rail, closer to the wheels. This positioning enhances cornering performance and leaves room for popular rear-mounted aftermarket fuel tanks. The entire system is engineered for an easy bolt-in installation and can be installed without removing the truck bed. QA1 double-adjustable shocks offer valving control for a wide range of driving styles, while the system's made-in-the-USA construction and QA1 warranty provide dependable long-term performance. Fits select 1963-1972 Chevrolet C10 Pickup and C10 Panel applications; verify vehicle configuration before installation.

• Application: Rear suspension conversion for select 1963-1972 Chevrolet C10 trucks


• Drop: Up to 6 inches of total rear suspension drop


• Shock Type: Double-adjustable coil-over shocks


• Spring Rate: Medium 200 lb/in coil-over springs


• Adjustment: Ride height, pinion angle, panhard position, and shock valving


• Installation: Bolt-on design that can be installed without removing the truck bed


• Construction: Made in the USA by QA1

Features:

• Rear suspension conversion system for select 1963-1972 Chevrolet C10 Pickup and C10 Panel models

• Converts the factory coil-spring rear suspension to adjustable coil-overs

• Provides up to 6 inches of total rear drop for a lowered stance

• Includes adjustable tubular truck arms with integrated pinion angle adjustment

• s double-adjustable shocks with medium 200 lb/in springs

• Adjustable panhard bar helps center the rear axle and optimize roll center geometry

• Relocates coil-overs outside the frame rail for improved cornering stability

• Bolt-on installation does not require removal of the truck bed

• Made in the USA by QA1

Fitment:
Chevrolet C10 Panel Base 1963
Chevrolet C10 Panel Base 1964
Chevrolet C10 Panel Base 1965
Chevrolet C10 Panel Base 1966
Chevrolet C10 Panel Base 1967
Chevrolet C10 Pickup Base 1963
Chevrolet C10 Pickup Base 1964
Chevrolet C10 Pickup Base 1965
Chevrolet C10 Pickup Base 1966
Chevrolet C10 Pickup Base 1967
Chevrolet C10 Pickup Base 1968
Chevrolet C10 Pickup Base 1969
Chevrolet C10 Pickup Base 1970
Chevrolet C10 Pickup Base 1971
Chevrolet C10 Pickup Base 1972
Chevrolet C10 Suburban Base 1967
Chevrolet C10 Suburban Base 1968
Chevrolet C10 Suburban Base 1969
Chevrolet C10 Suburban Base 1970
Chevrolet C10 Suburban Base 1971
Chevrolet C10 Suburban Base 1972
